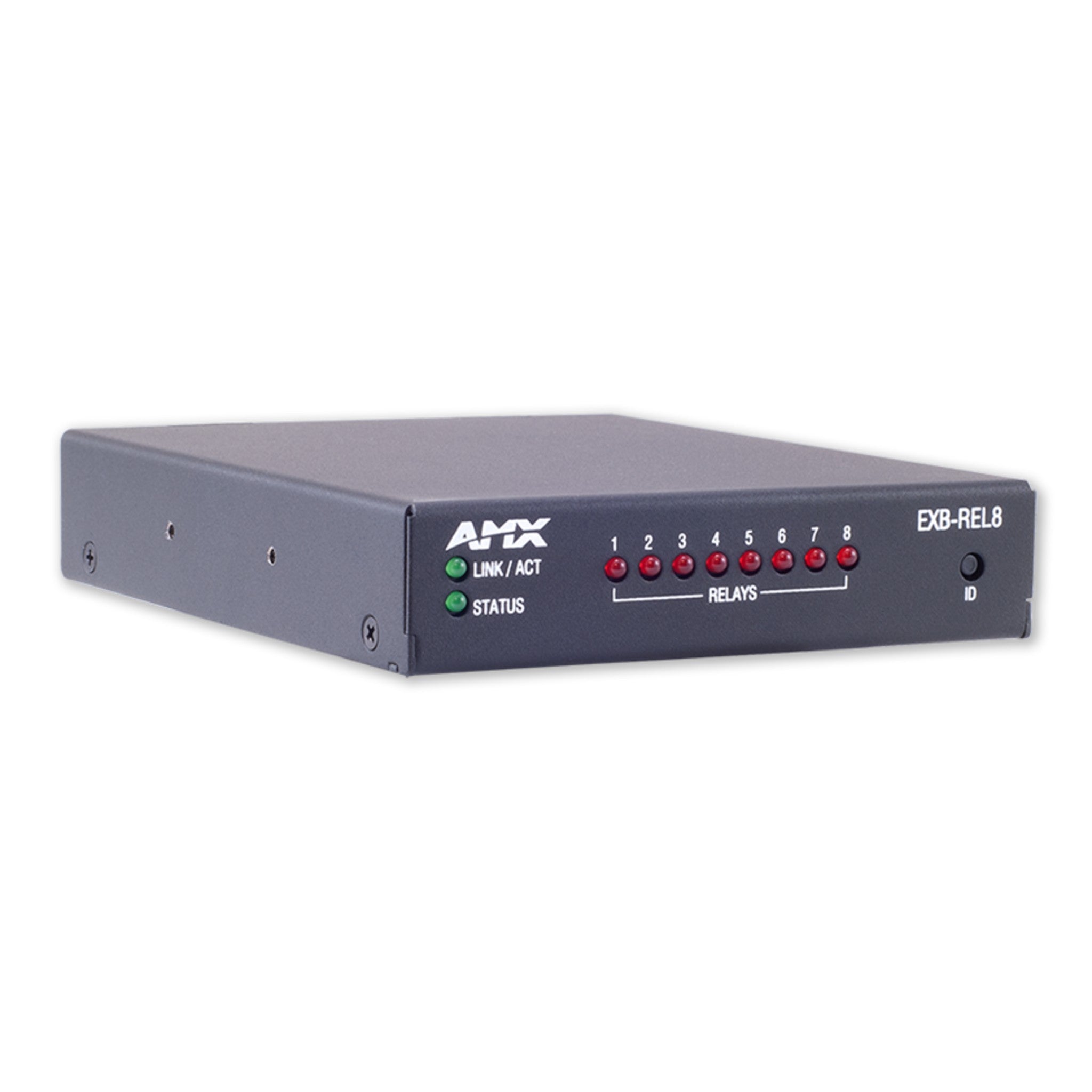

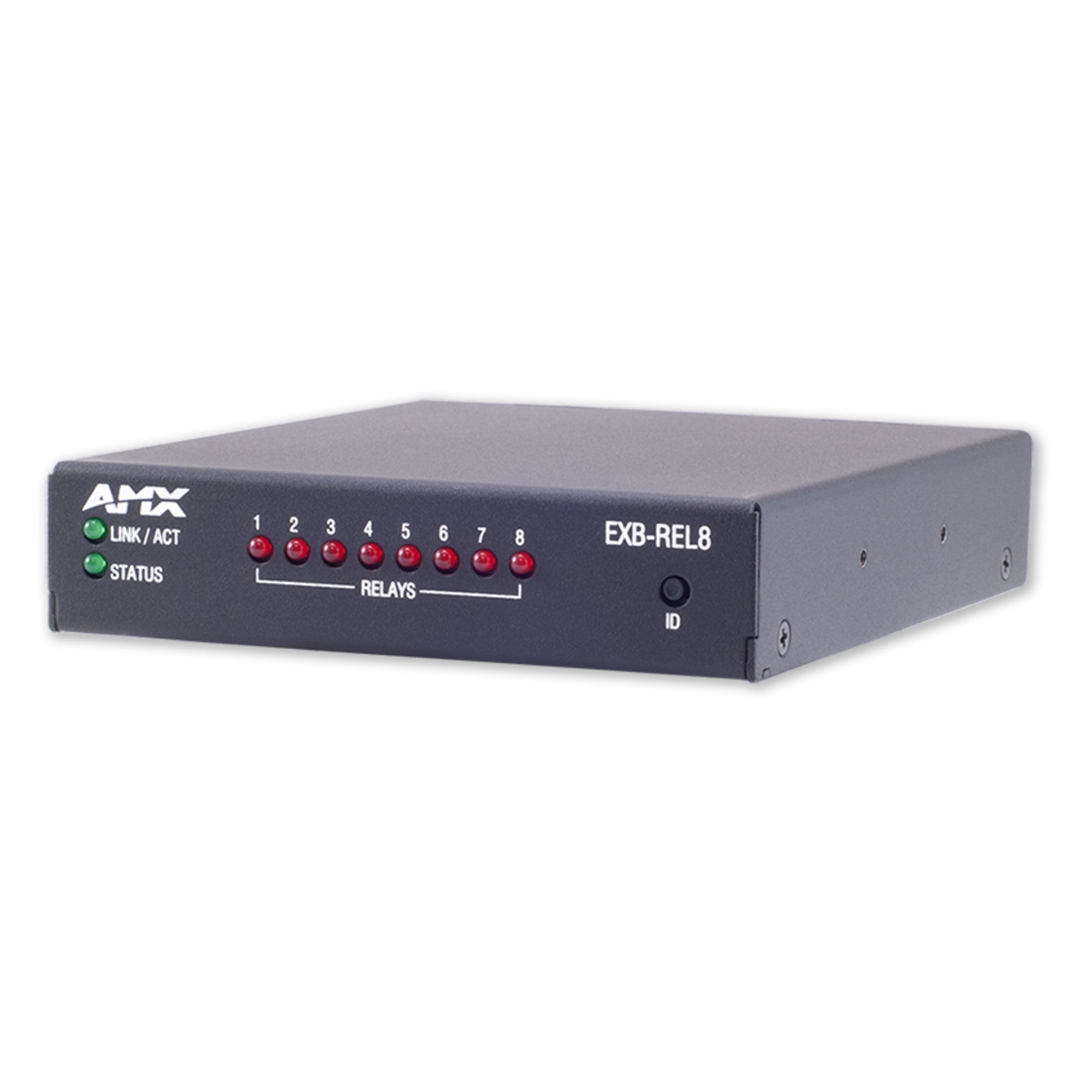

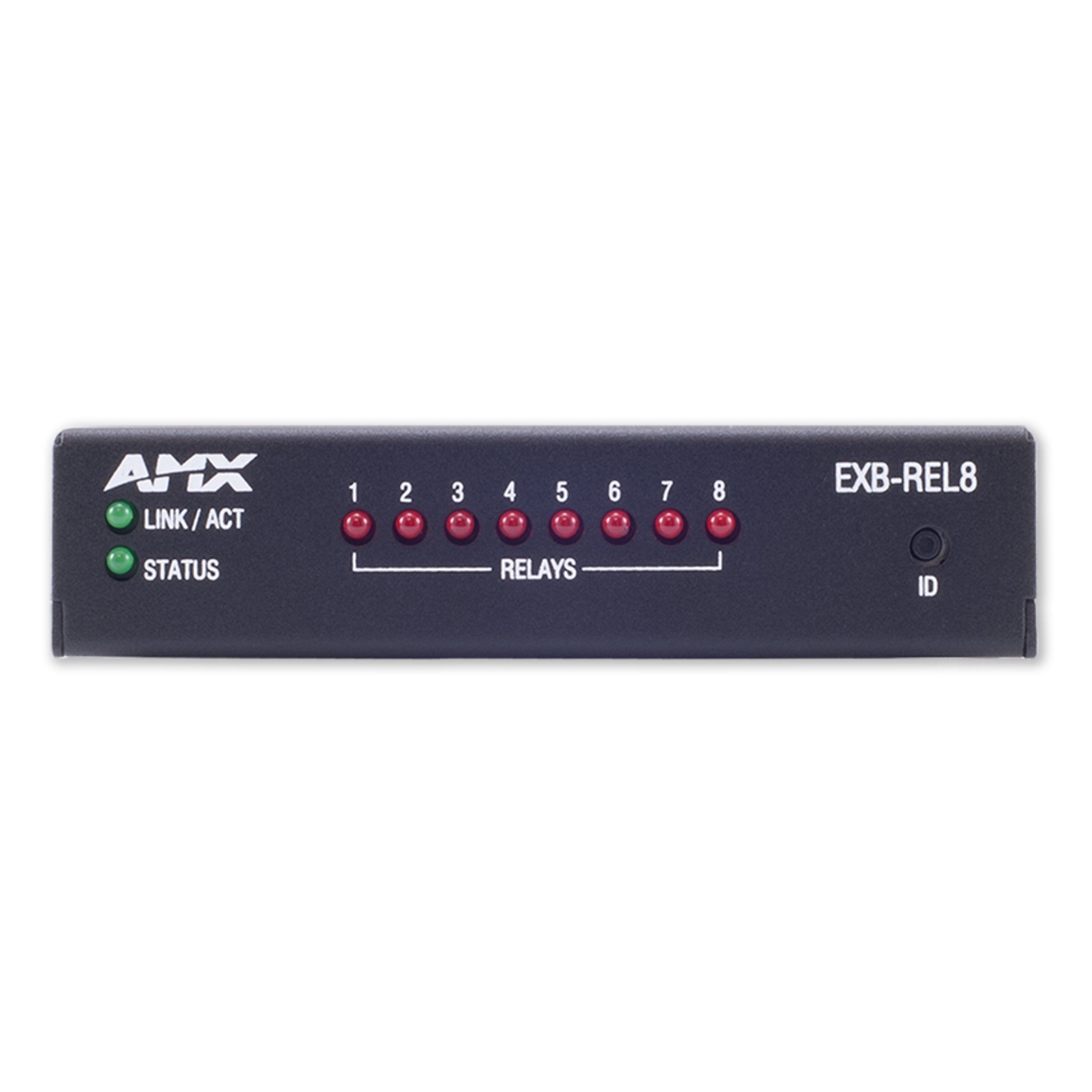

The AMX EXB-REL8 ICSLan 8-Channel Relay Interface is a great solution for remote device management. With ICSLan Device Control Boxes, you can manage devices from a controller over an Ethernet network. This offers a simple yet effective way to create a centralized control environment. You can share a controller among multiple smaller rooms instead of having a controller in each room. Ethernet is the industry standard for connecting devices, and these control boxes make it easy to control equipment like projectors located far from the controller. Also, when all ports on an AMX Controller are occupied, you can expand the number of ports. Thanks to Native NetLinx technology, adding an EXB to an AMX installation is a breeze. Key features include enabling ports over Ethernet for a future - proof port - adding solution, easy programming similar to other device ports on the controller, power over Ethernet that eliminates the need for a local power source, a small form factor for a clean and hidden installation, and NetLinx Studio Tools for easy deployment. Technical specs: Dimensions are 1” x 4 3/8” x 5 1/8” (2.5 cm x 11.1 cm x 13.00 cm), RU: 1. It weighs 1.02 lb (463 g). It uses Power Over Ethernet, so no local power supply is needed. Typical power draw is 1.9 Watts, max is 3.4 Watts. It has (1) RJ - 45 ICS - LAN Ethernet Connector and (2) 8 - Pin 3.5mm captive - screw terminals. FG Number is FG2100 - 20.

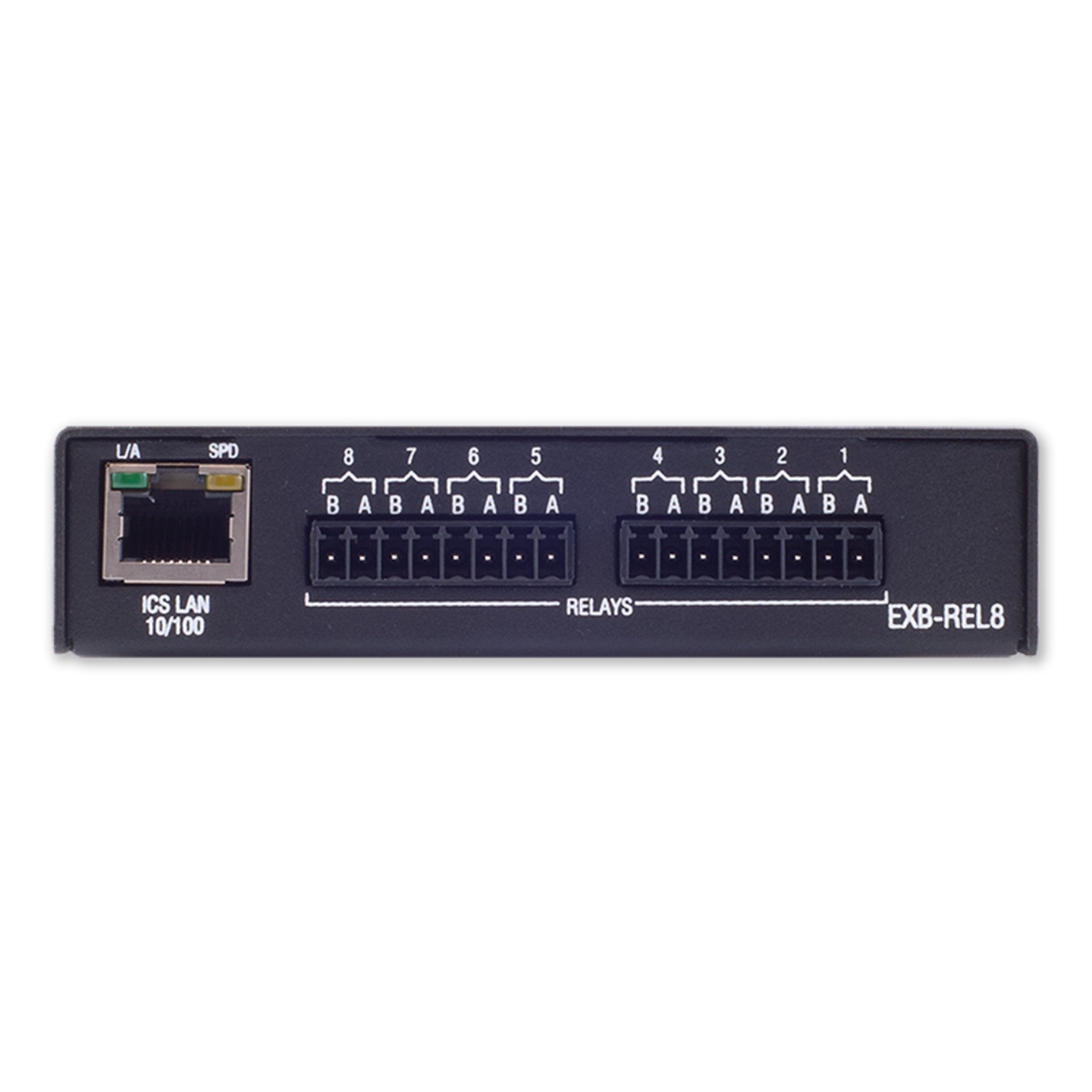

Using the AMX EXB - REL8 ICSLan 8 - Channel Relay Interface is straightforward. First, connect it to your Ethernet network via the RJ - 45 ICS - LAN Ethernet Connector. Since it supports power over Ethernet, you don't need to worry about finding a local power source. When programming, just follow the same steps as you would for other device ports on the controller. You can use the NetLinx Studio Tools to configure it easily. When installing, take advantage of its small form factor and hide it for a clean look. As for maintenance, keep an eye on the power draw. If it exceeds the typical 1.9 Watts, check for any issues. Also, make sure the connectors are clean and properly connected. Remember, it's designed to be a reliable solution for remote device control, so use it with confidence in your Ethernet - based setup.
