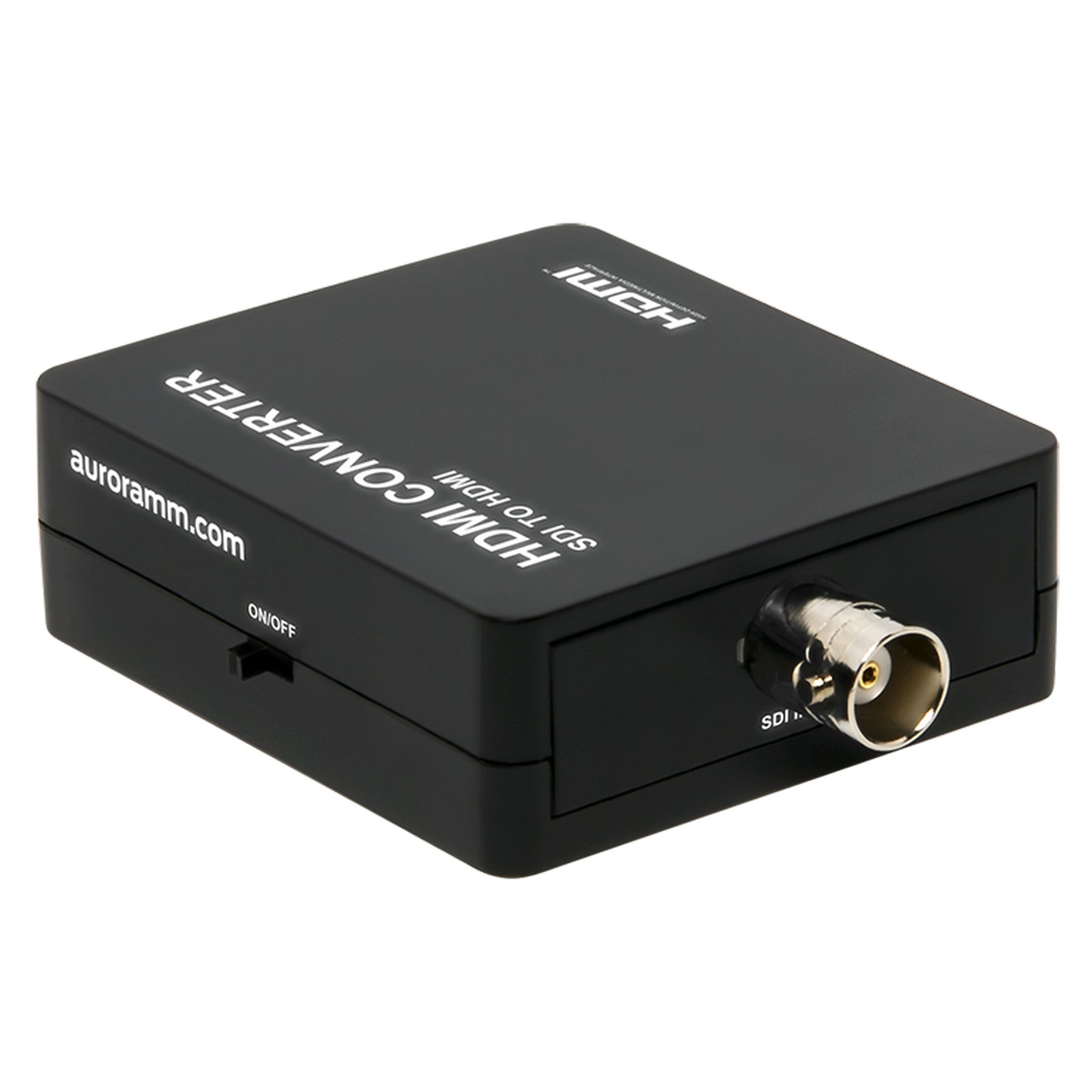

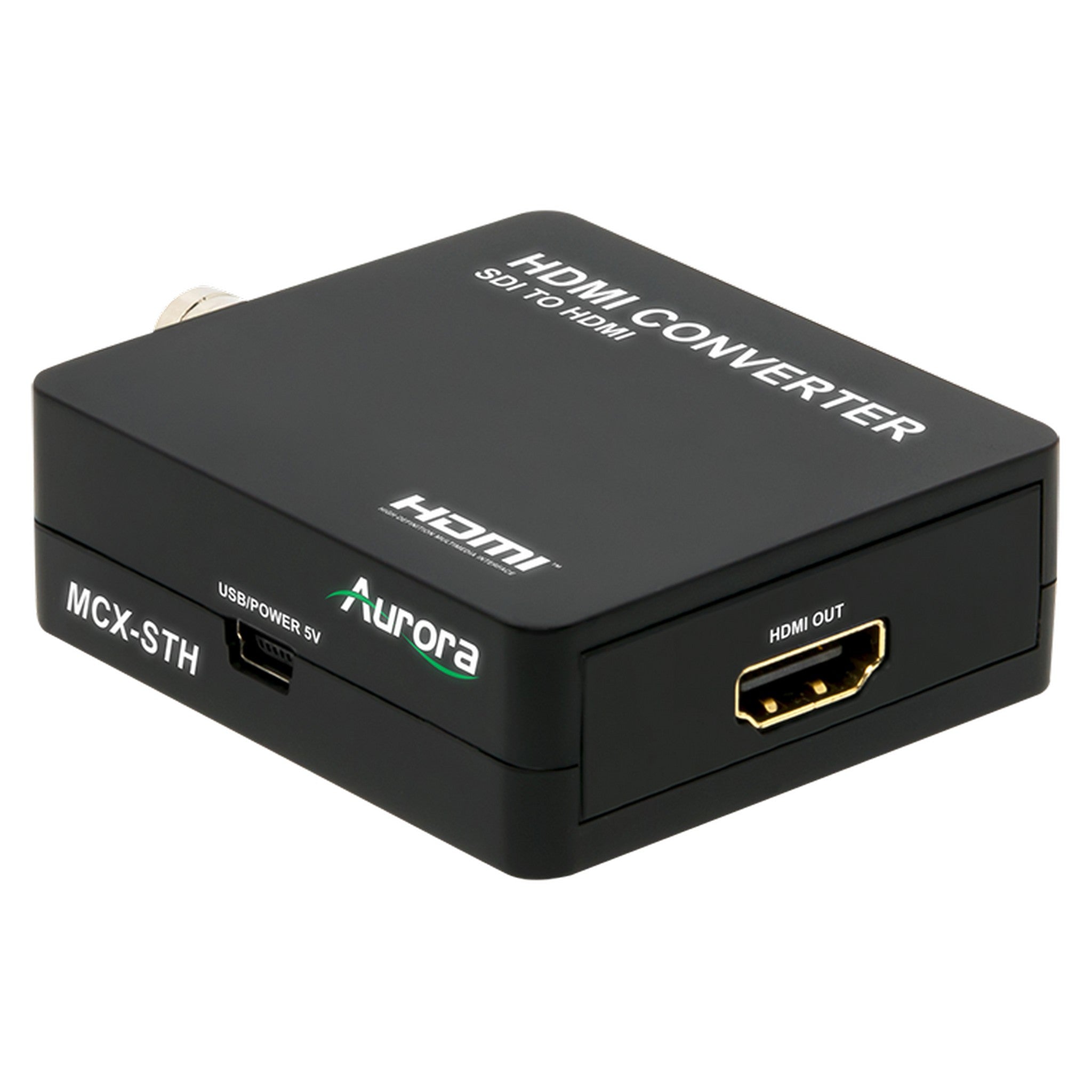

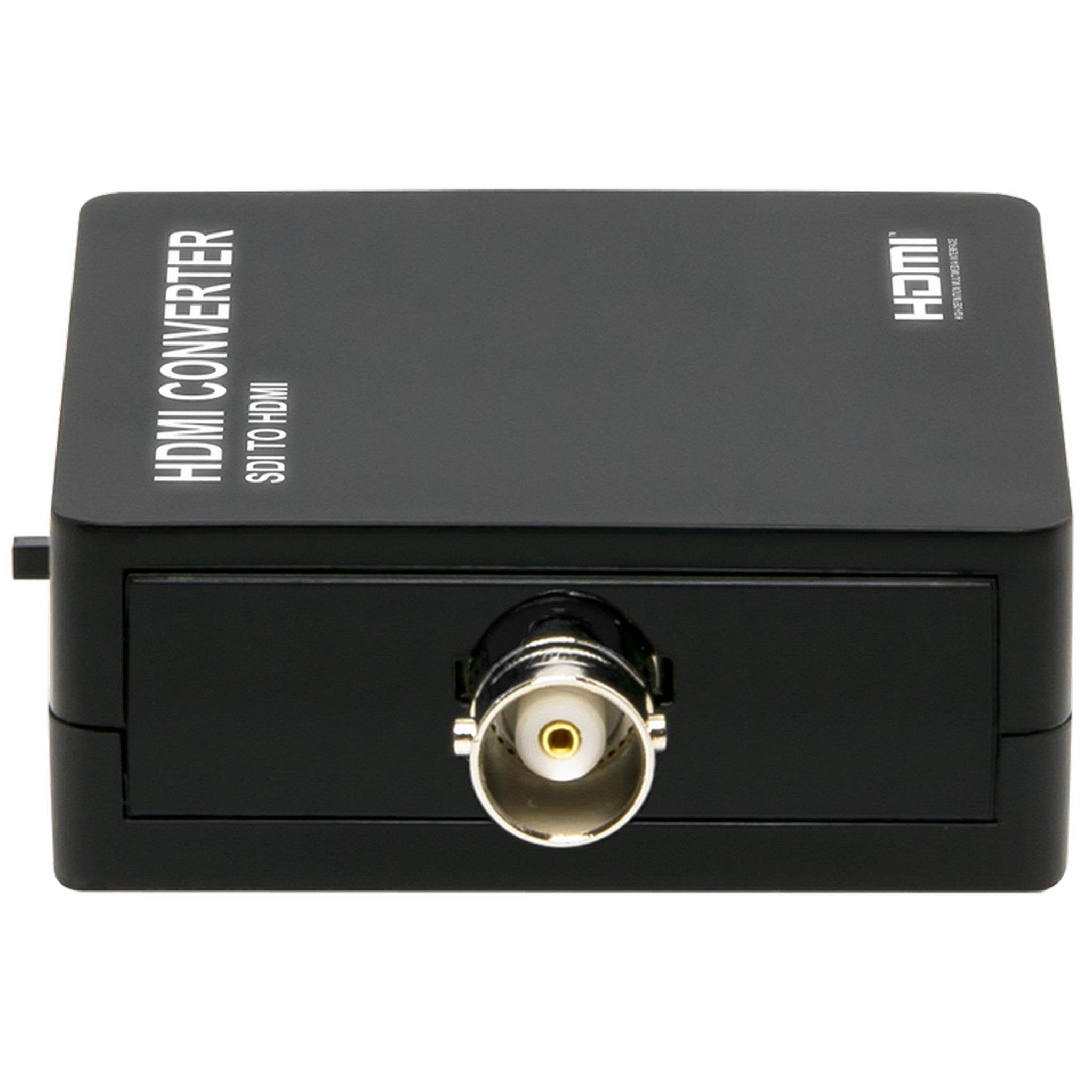

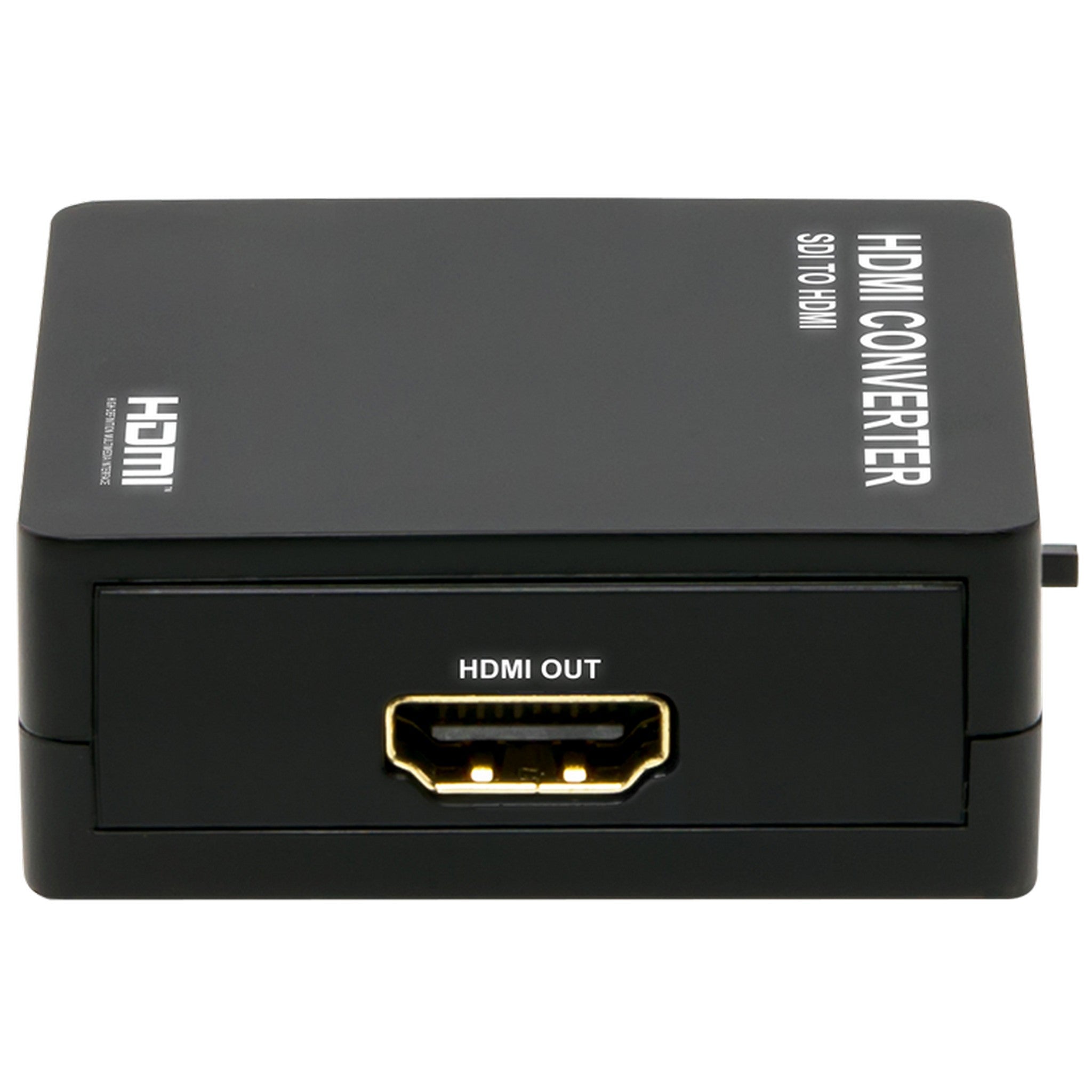

The Aurora MCX - STH is an outstanding 3G SDI to HDMI converter. It can convert resolutions up to 1080p, delivering high - quality audio and video. You have two power supply options: the included wall supply or a USB port, which simplifies cabling and installation. Key features include seamless 3G SDI to HDMI conversion, support for up to 1080p resolution, and a bandwidth of 225MHz/2.25Gbps per channel (6.75Gbps all channels). In terms of technical specs, it accepts SD - SDI, HD - SDI, and 3G - SDI signals, with an SDI data rate of 270Mb/s, 1.485Gb/s, or 2.97Gb/s. The output is an HDMI signal, compatible with various DTV/HDTV formats. The input SDI distance can reach 25m (75ft), and the input HDMI distance is 10m (30ft). It has a plastic housing, with dimensions of 60.5 x 54 x 20.5mm (2.38' x 2.13' x.807') and weighs 42g (1.48 oz). It runs on a 5V 2A DC power supply, consuming up to 5 Watts. The operation temperature ranges from 0 to 70C (32 to 158F), and the storage temperature is between - 10 to 80C (14 to 170F), with a relative humidity of 5 to 90% RH.
Using the Aurora MCX - STH converter is easy. First, connect the SDI source to the SDI input of the converter. Then, connect the HDMI cable from the converter's HDMI output to your display device. You can choose to power it using the included wall supply or a USB port. When using it, make sure the power supply meets the requirements of 5V 2A DC. Avoid using it in extreme temperatures outside the 0 - 70C (32 - 158F) range, as this may affect its performance. For storage, keep it in a place where the temperature is between - 10 - 80C (14 - 170F) and the relative humidity is 5 - 90% RH. To maintain it, simply keep the converter clean and free from dust. You can use a soft, dry cloth to wipe it gently. If you encounter any issues, check the connections first and ensure the power supply is stable.
