The Blackmagic Design PYXIS Monitor and EVF Kit is a top - notch solution for professional filmmakers, offering outstanding monitoring capabilities. Whether you're filming in a studio or on location, this state - of - the - art kit provides the tools for superior visual accuracy and control. It supports creative flexibility and technical precision, allowing you to execute complex shots with clarity and confidence.
The kit features a beautiful OLED display that delivers high - resolution and vivid color accuracy, giving you an immersive viewing experience during shoots. Its lightweight and ergonomic design ensures long - lasting comfort during extended filming sessions, reducing fatigue and boosting productivity. With multiple mounting options, it can adapt to various shooting setups and integrates smoothly with different camera systems for optimal performance. Built to last, it can handle the demands of both indoor and outdoor filming.
The high - brightness 5 - inch LCD capacitive touchscreen offers 1500 nits of brightness, ensuring great visibility even in direct sunlight. On - screen controls and assignable buttons make it easy to customize the display to your needs. The package comes with a variety of mounting brackets, making it simple to attach and reposition the monitor for different filming scenarios, enhancing workflow efficiency and creative possibilities.
Key Features:
- High - resolution OLED display for amazing image quality
- Lightweight and ergonomic design for maximum comfort
- Multiple mounting options for versatile setup
- Durable build quality for on - set reliability
- Easy connection with various camera systems
- 5 - inch LCD capacitive touchscreen
- 1500 - nit display brightness for excellent visibility
- On - screen controls for intuitive monitoring and adjustments
- Comes with various mounting brackets for easy attachment
Specifications:
- Power Consumption: 3.5 W
- Display Size: 5 inches
- Display Type: LCD capacitive touchscreen
- Display Resolution: Full 1920 x 1080
- Display Brightness: 1500 nits
- Frame Rates: Up to 60fps
- Tally: Rear - facing LED tally light
- Accelerometer: Automatically rotates image when monitor mounted upside down
- Control: On Screen Controls for various camera functions
- Button Controls: F1, F2, F3 assignable function buttons
- Mounting Points: 1 x 1/4 - 20 bottom mounting point with ARRI locating pin pattern, 2 x M4 bottom mounting points, 1 x 1/4 - 20 side mounting point with ARRI locating pin pattern, 2 x M4 side mounting points
- Mounting Brackets: Blackmagic PYXIS Monitor Swivel Mount, Blackmagic PYXIS Monitor Fixed Mount and screws, Blackmagic PYXIS Monitor Dovetail Shoe and screws, Blackmagic URSA Cine EVF Bracket rod mount, Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod, 2 x short 15mm carbon fibre rods
- Compatible Cameras: Blackmagic PYXIS 6K, 6K PL, 6K EF, URSA Cine 12K LF, 17K 65
- Operating Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11
- Power Requirements: Powered over USB - C

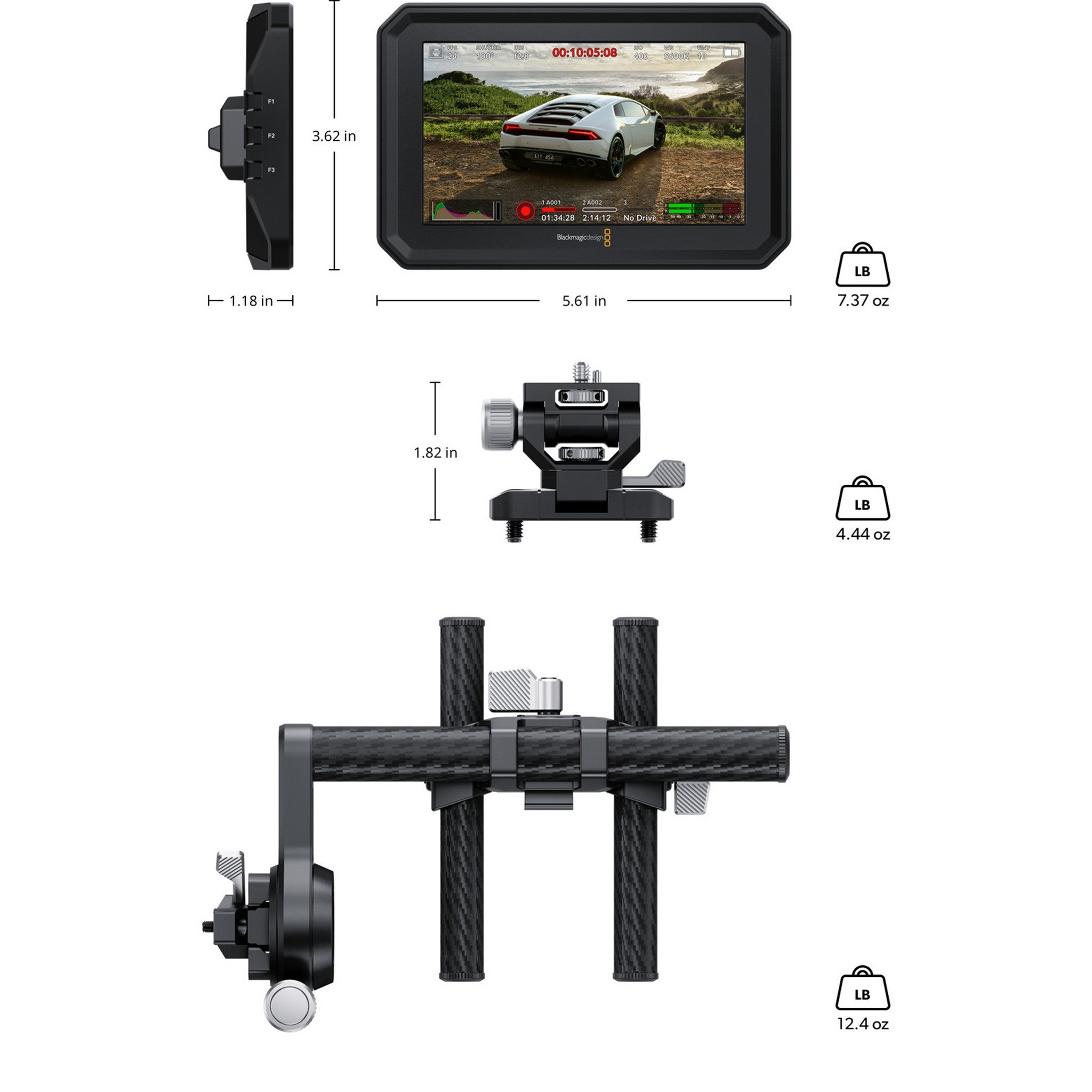

- Monitor Dimensions: 1.18 in x 3.62 in x 5.61 in
- Monitor Weight: 0.46 lbs (7.37 oz)
- Mount Dimensions: 1.82 in (Height)
- Mount Weight: 0.28 lbs (4.44 oz)
- Bracket Rod Mount Weight: 0.78 lbs (12.4 oz)
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: - 20° to 60°C (- 4° to 140°F)
- Relative Humidity: 0% to 90% non - condensing

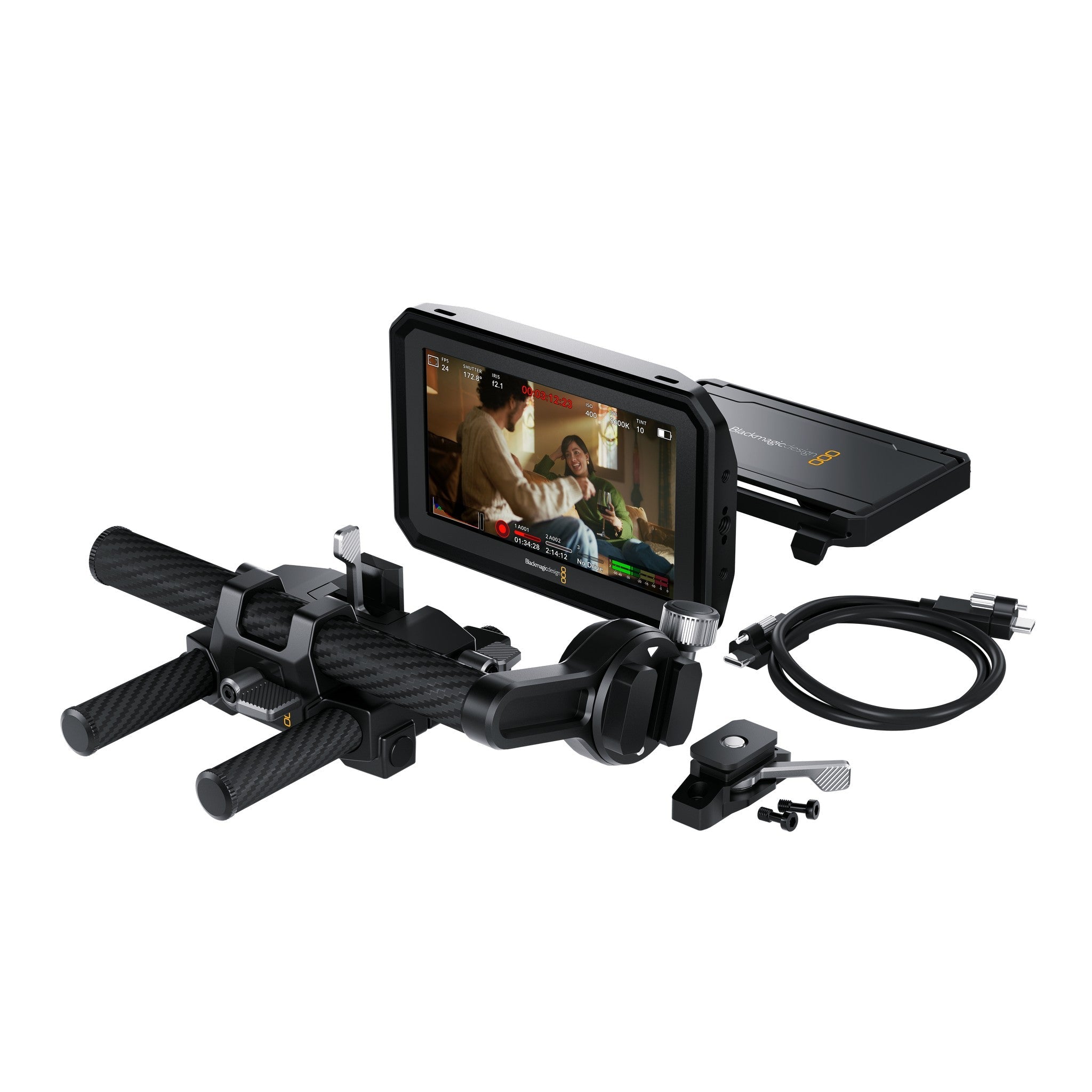

Package Contents:
- Blackmagic PYXIS Monitor
- Clip - On Sunshade
- Swivel Mount
- Fixed Mount and screws
- Dovetail Shoe and screws
- Blackmagic URSA Cine EVF Bracket rod mount
- URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
- 2 x short 15mm carbon fibre rods
- 1 x long USB - C viewfinder cable
- 1 x short USB - C viewfinder cable
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
- 1 Year Limited Manufacturer’s Warranty
Using the Blackmagic Design PYXIS Monitor and EVF Kit is easy. First, connect the monitor to your compatible camera using the provided USB - C viewfinder cable. You can choose from the long or short cable depending on your setup. Then, select the appropriate mounting option from the included brackets and attach the monitor to your camera or other equipment. The multiple mounting points give you a lot of flexibility.
When it comes to using the screen, the on - screen controls and assignable buttons make it simple to adjust settings like brightness, contrast, and other camera functions. The high - brightness touchscreen is visible even in sunlight, so you can use it outdoors without any issues.
Here are some important things to keep in mind. Make sure to operate the kit within the recommended temperature range of 0° to 40°C (32° to 104°F) and store it between - 20° to 60°C (- 4° to 140°F). Avoid exposing it to high humidity that could cause condensation.
For maintenance, keep the screen clean using a soft, dry cloth. Don't use abrasive materials that could scratch the screen. If you're not using the kit for a long time, store it in a safe place. And remember, the kit comes with a 1 - year limited manufacturer's warranty, so if you have any problems, reach out to the manufacturer.
