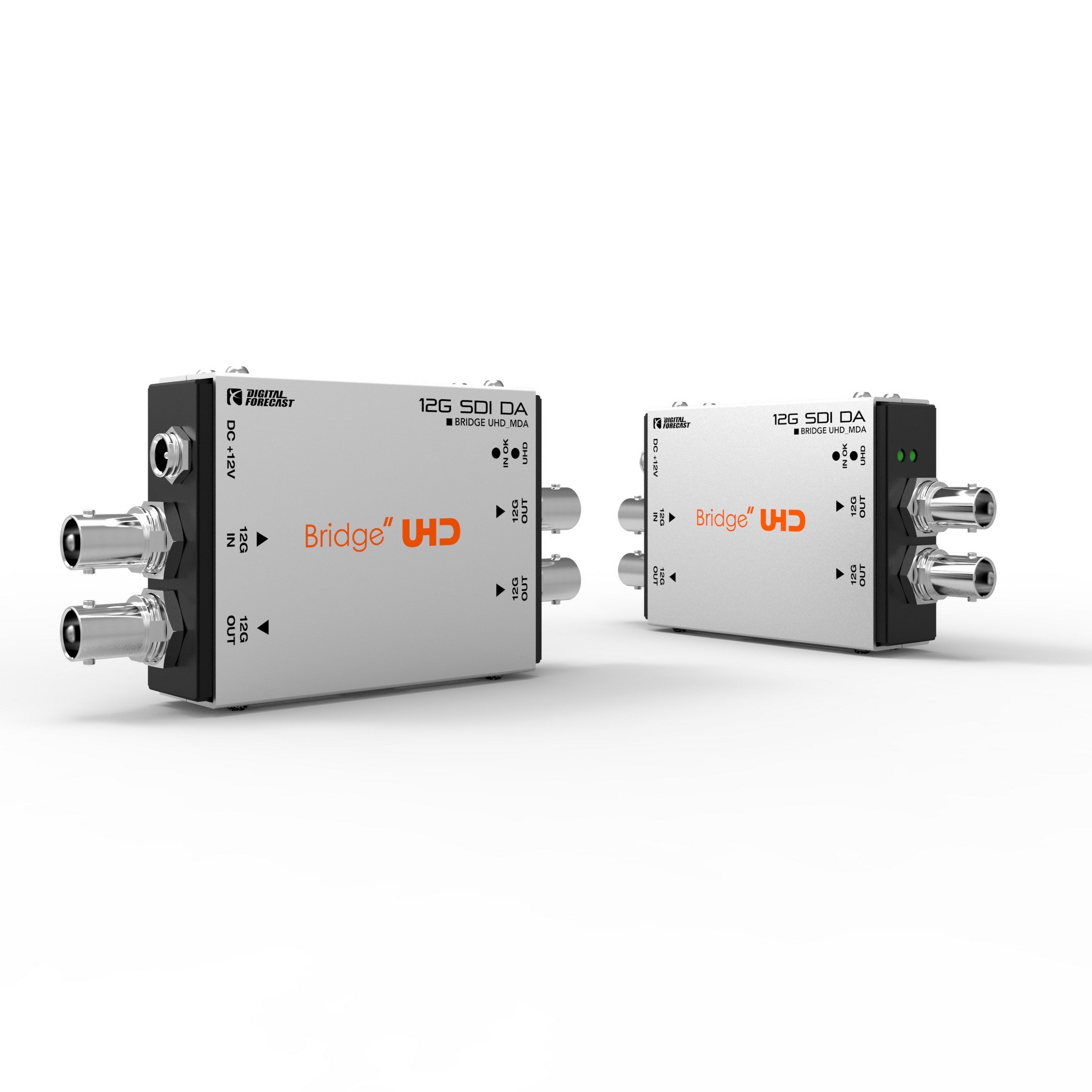

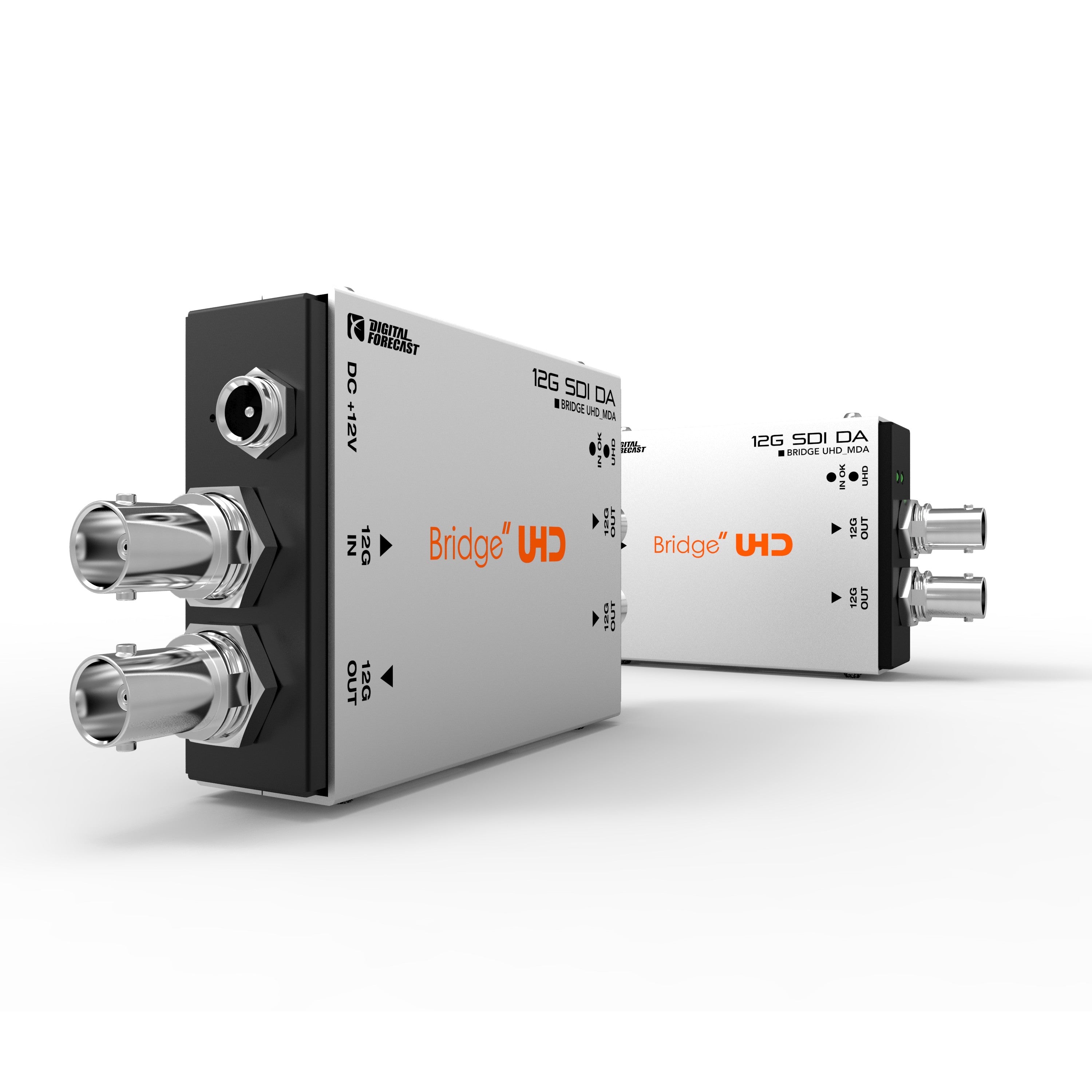

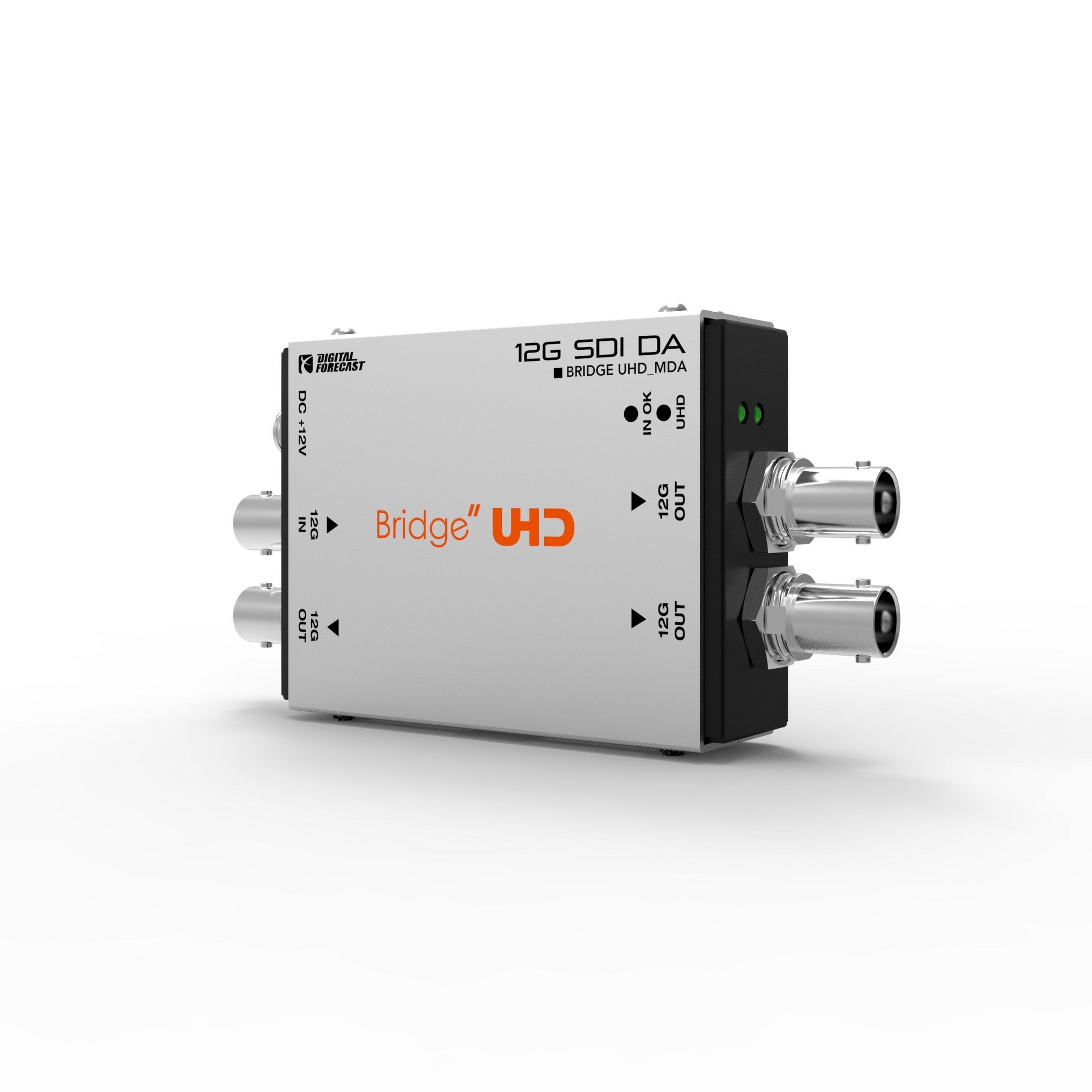

The Ultra High-Definition Digital Forecast Bridge M_DA 12G SDI Distribution Amplifier is a great device for distributing SDI signals that meet SMPTE standards. It supports formats from 480i to UHD. With a built-in re-clocker and equalizer, it can also function as a repeater. Key features include being an SDI distribution amplifier, having a 12G cable equalizer and re-clocker inside, 1 SDI input that accepts all standard formats (SD/HD/FHD/6G/12G), 3 SDI outputs in all standard formats, and a 12V DC power supply with an operational voltage range of 7 - 17V DC. Technical specs: Dimensions are 80 x 59.4 x 22.5 mm, weighs 95g, power level is 7V - 16 VDC, max power consumption is 3 Watts (normal 2.6 Watts), humidity tolerance is 0 - 95% RH non-condensing, max data rate is 600Mhz, signal level is 800mVp-p +/- 50m, and it supports various digital video standards like SMPTE-296M (720P 60/59.94/50), SMPTE-274M, SMPTE-292M (1080i 60/59.94/50), SMPTE-424M (1080p 60/59.94/50 3G), SMPTE-ST2081 (2160p 30/29.97/25 6G), SMPTE-ST2082 (2160p 60/59.94/50 12G).
Using this SDI distribution amplifier is easy. First, connect your SDI source to the single SDI input. Then, connect your display devices or other equipment to the three SDI outputs. Plug in the 12V DC power supply within the 7 - 17V DC range. Make sure the environment has a humidity level between 0 - 95% non-condensing. When it comes to maintenance, keep the device clean and avoid exposing it to extreme temperatures. If you notice any issues, check the power connection and the SDI cables. Also, be careful not to exceed the maximum power consumption of 3 Watts. This device is a great tool for distributing high - quality SDI signals across different devices.
