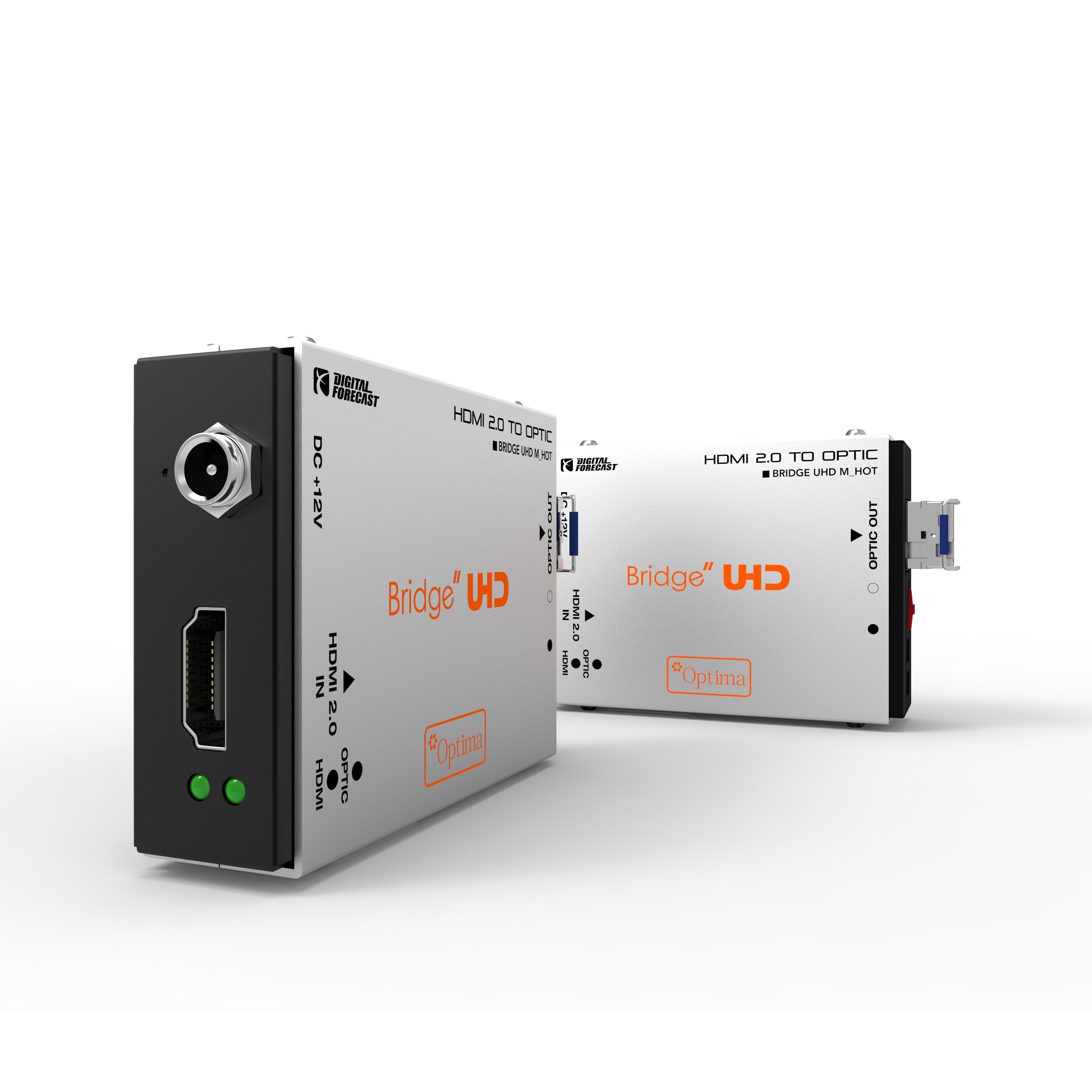

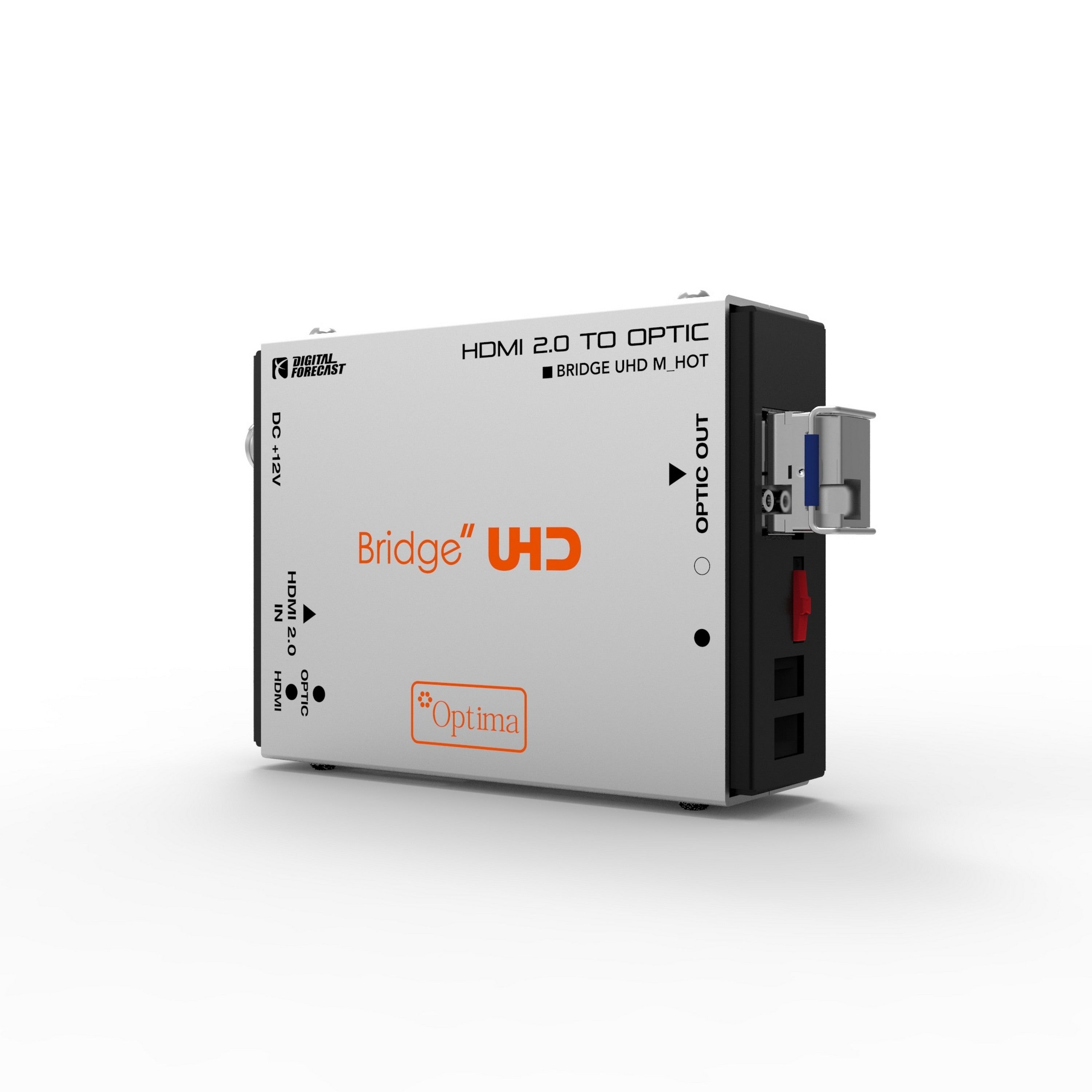

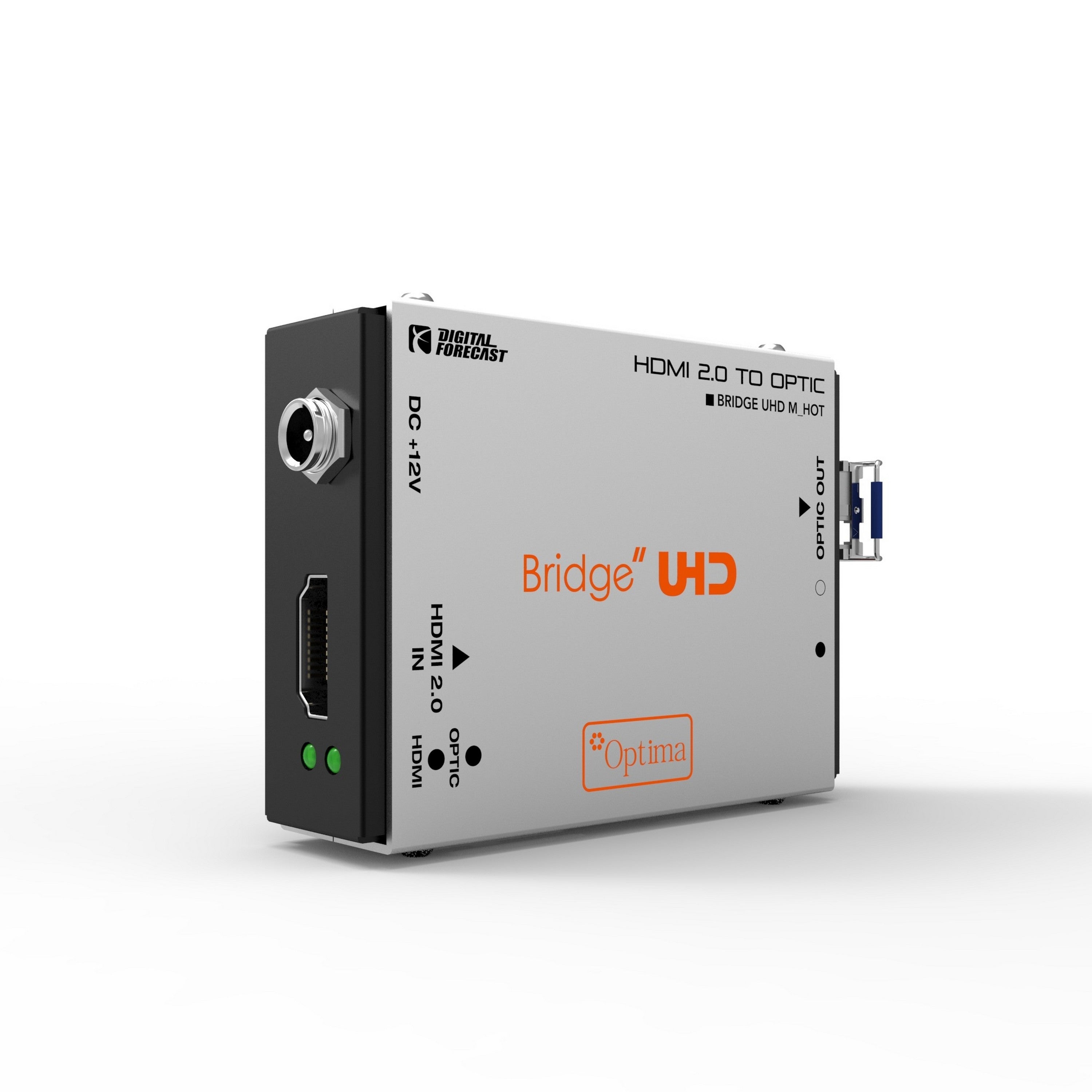

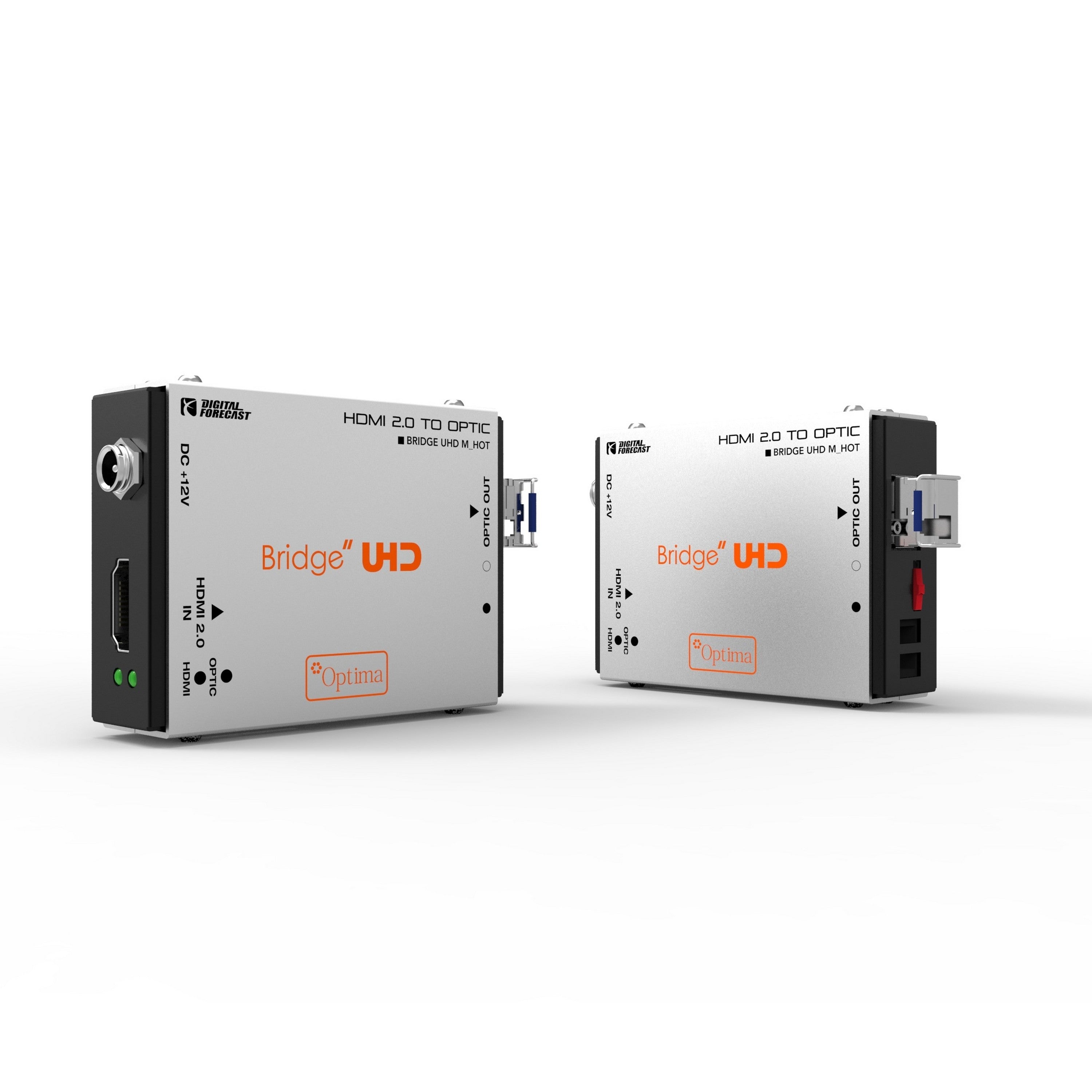

Digital Forecast Bridge UHD M_HOT HDMI 2.0 to Fiber Optic Transmitter/Extender

The Bridge UHD M_HOT is an outstanding device that converts HDMI 2.0 signals into UHD 4K optical signals. It uses Optima technology, making it fully compatible with products that also apply this advanced technology. With a range of remarkable features, it offers high - quality signal transmission. Key Features: - Built - in Optima technology for superior performance. - Supports HDMI 2.0 input from 720p to 2160p60. - Equipped with an Optima Optic Module. - Features Chroma Format 4:2:2 10bit for vivid colors. - Uses LC single mode with a maximum transmission distance of 10Km. - Powered by a 12V DC power supply (operational voltage range: 7 - 17V DC). Technical Specifications: - Physical Dimensions (W x H x D): 80 x 59.4 x 22.5 (mm). - Weight: 110g. - Power Level: 7V - 16 VDC. - Power Consumption: Up to 7 Watts (6.2 Watts on average). - Humidity Resistance: 0 to 95% RH, non - condensing. - Maximum Data Rate: 600Mhz. - Signal Level: 800mVp - p +/- 50m. - Digital Video Support: Covers HD (720P, 1080i, 1080P), FHD (1080P), 2K4K (2160p), and 4K (2160p) formats.

Using the Bridge UHD M_HOT is a breeze. First, connect the HDMI 2.0 source to the input of the device. Then, use the fiber - optic cable to connect the device to the display or other receiving equipment. Make sure to use a 12V DC power supply within the 7 - 17V DC range. The device can support different video formats, so it should work well with most HDMI 2.0 sources. When using it, avoid exposing the device to extreme humidity or high - temperature environments. The humidity range it can handle is 0 to 95% RH, non - condensing. If you're using it for long - distance transmission, note that the maximum distance for LC single - mode fiber is 10Km. For maintenance, keep the device clean. You can use a soft, dry cloth to wipe it. Also, check the power supply regularly to ensure it's within the correct voltage range. If you encounter any issues, make sure to double - check all the connections first. If problems persist, you may need to seek professional help.
