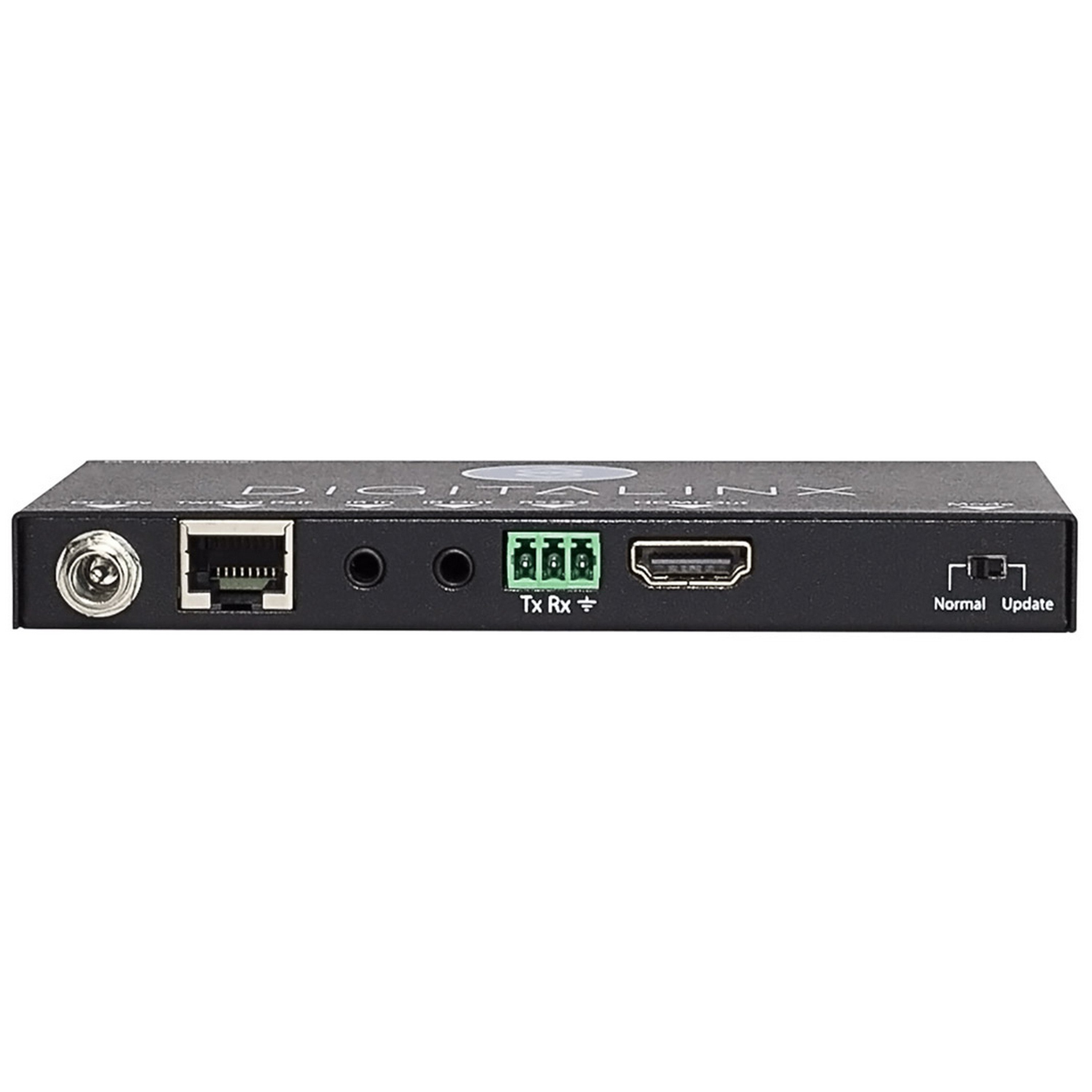

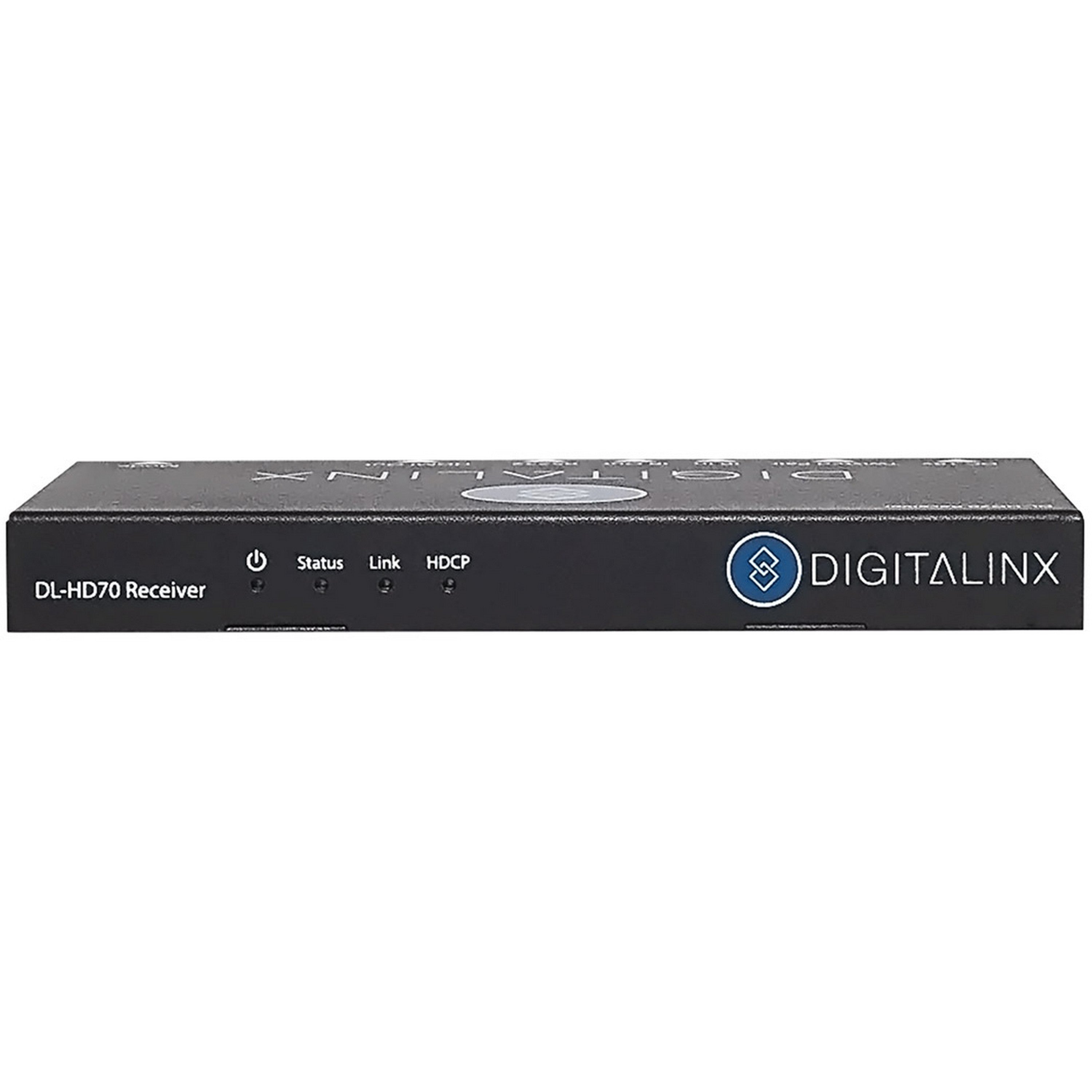

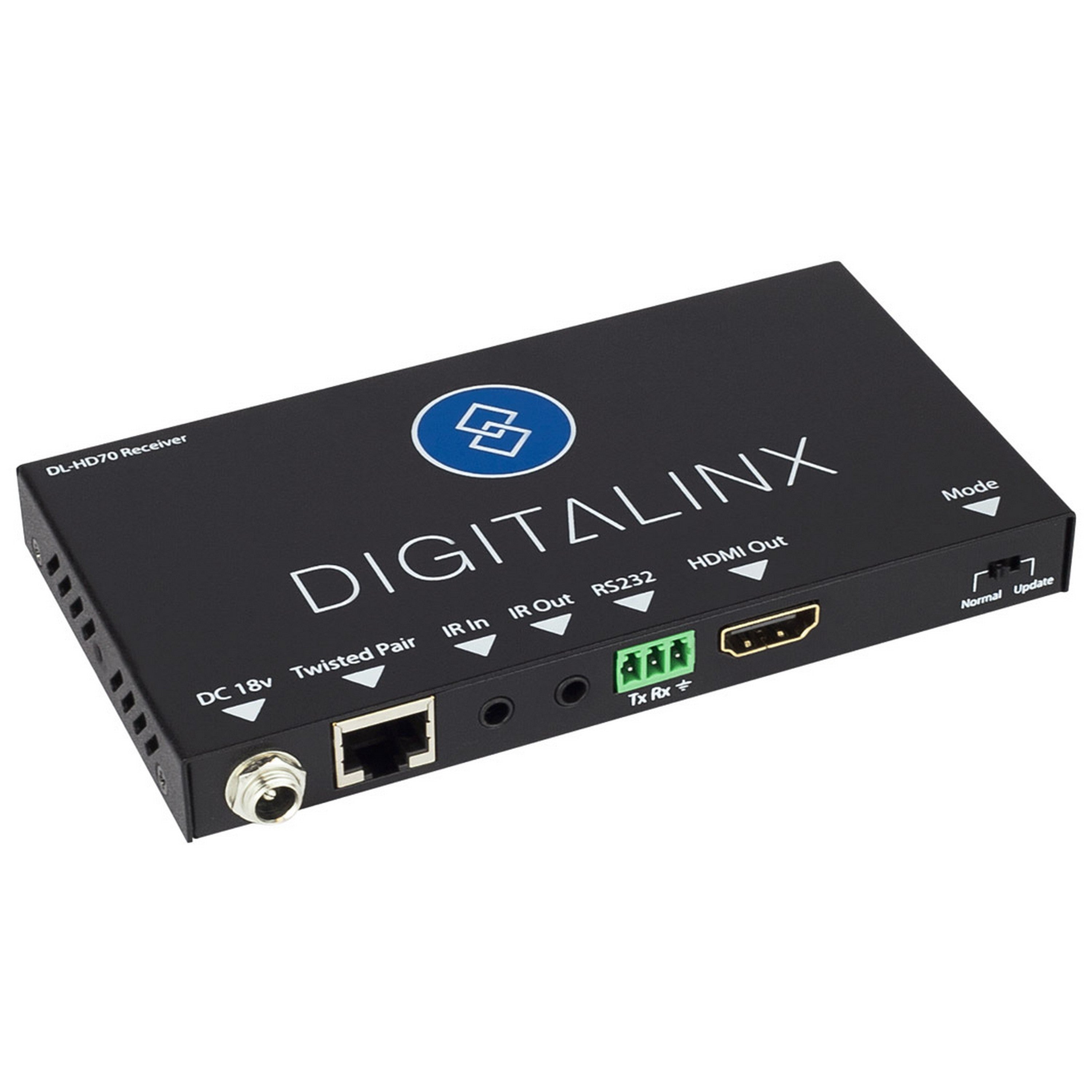

The DigitaLinx DL - HD70 is a sleek black HDMI over Twisted Pair set that comes with power and control capabilities. It offers outstanding features like HDMI transmission up to 230 feet (70m), compatibility with 1080p, 4Kx2K (UHD), and 3D content. It supports CEC and has built - in surge protection for safety. Diagnostic LEDs help you monitor the device status. It's HDCP 2.2 compliant and has bidirectional wideband IR and RS232 passthrough. The flexible power design allows you to use the power supply at either the TX or RX end, and it has a locking power connector. In terms of technical specs, it has an input DDC signal of 5.0 volts p - p (TTL), a maximum HDMI distance of 5m with pre - made cable, and an IR carrier frequency range of 33 - 55 kHz at 5 volts. It can reach a maximum distance of 70m, with a bandwidth of 10.2 Gbps and a great signal - to - noise ratio. The enclosure is made of painted steel, and it measures 5.31 x 2.91 x 0.59 in with a shipping weight of 1.8 lbs.
Using the DigitaLinx DL - HD70 is easy. First, connect the HDMI cables to your devices. You can choose to place the power supply at either the transmitter (TX) or receiver (RX) end according to your convenience, and make sure to use the locking power connector to keep it secure. This set can transmit HDMI signals up to 230 feet (70m), so you can place your devices at a good distance. When using it with 3D, 1080p, or 4Kx2K (UHD) content, it will provide a great viewing experience. Just note that the maximum HDMI distance with the pre - made cable is 5m. For the IR function, the carrier frequency range is 33 - 55 kHz at 5 volts. To maintain the product, keep it in a dry and clean place. Since it has built - in surge protection, it can handle some electrical fluctuations, but try to avoid extreme power surges. The diagnostic LEDs will show you the status of the device, so if something seems off, check them. And that's all you need to know to use and take care of your DigitaLinx DL - HD70.
