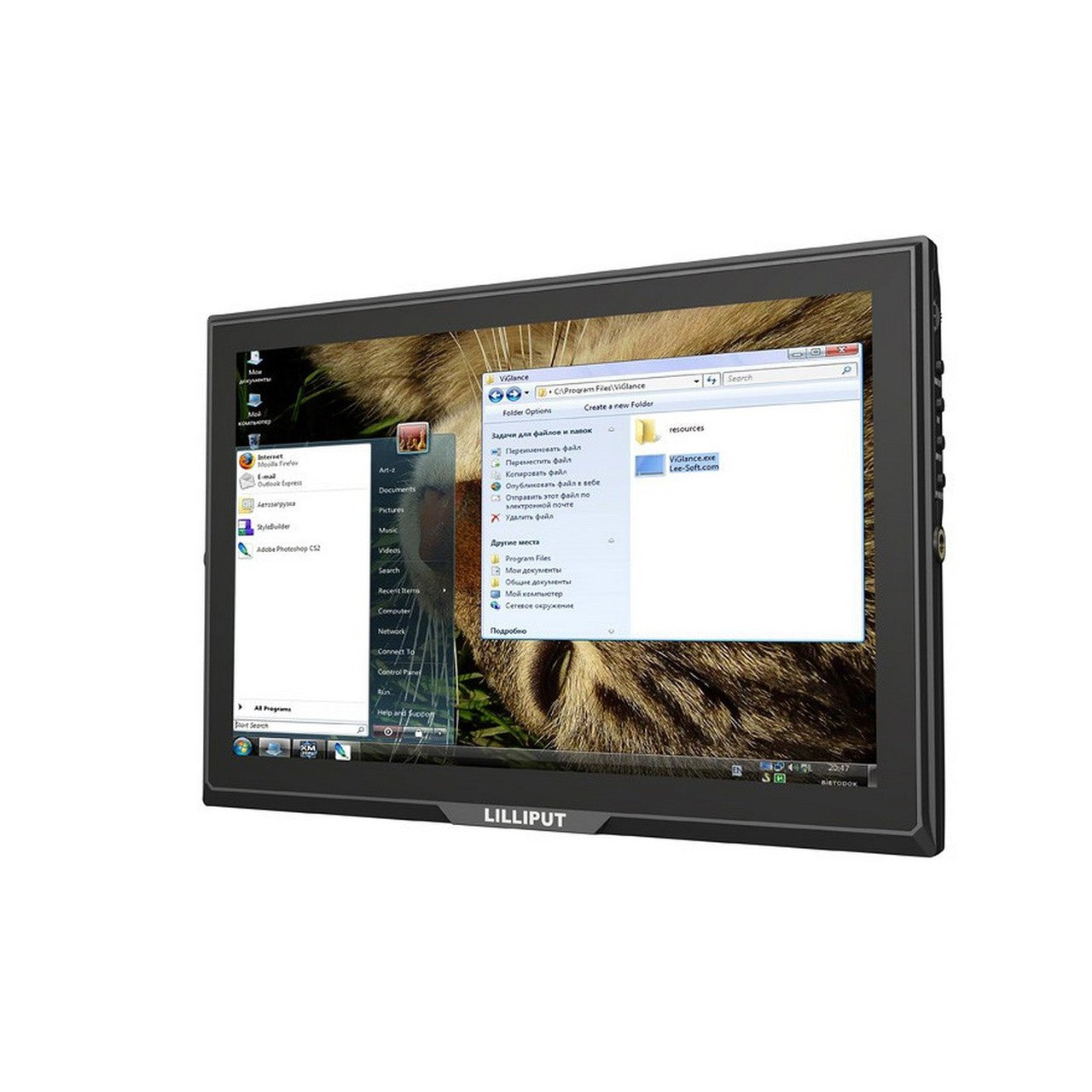

Lilliput 10.1-Inch LED Multi-Touch Screen Monitor
Wide Viewing with IPS Panel
With 170° horizontal and 170° vertical viewing angles, everyone gets the same great view from any angle.
Large 10.1' IPS Display
The 10.1' IPS panel with 1280×800 native resolution offers twice the viewing area of a 7-inch display.
Capacitive 10-Point Touch
Support 10-point touch for easy picture flipping and zooming. It has high precision, fast response, long life, and better transmittance.
Optional Lux Auto Brightness
A light sensor adjusts the panel's brightness according to ambient light, making viewing easier and saving power.
Dustproof Front Panel
The integrated front panel protects the screen from dust and mild droplets, suitable for outdoor use.
Customizable I/O Control Interface
The interface can connect to a reverse trigger line in a car reversing system and control the computer host. Functions can be customized.
Key Features
- 10-point touch capacitive screen (OS: Windows 7 or above)
- Lux auto brightness
- Integrated dustproof front panel
- I/O control interface
- High contrast: 800:1
- High brightness: 350cd/m²
Technical Specifications
Display Screen: 10.1' LED backlit, 16:9
Resolution: 1280x800, support up to 1920 x 1080
Color System: PAL-4.43, NTSC-3.58
Touch Panel: Capacitive Touch
Contrast Ratio: 800:1
Brightness: 350cd/m2
Viewing Angle: 170°/170°(H/V)
Input Signal: HDMI, VGA, AV, DVI(optional)
I/O port: 1
Speaker: 1
Input Voltage: DC 7-24V
Battery: External (optional,not included )
Current: 800mA
Power Consumption: 10W
Audio Output: 1W
Operating Temperature: -0 Degrees Celsius~50 Degrees Celsius
Storage Temperature: -32 Degrees Celsius~60 Degrees Celsius
Dimension(LWD): 250×170×32.3 mm
Weight: 560g
Using this monitor is easy. First, connect it to your device using the available input signals like HDMI, VGA, AV, or DVI. If you choose to use the optional battery, make sure to connect it properly. For the touch - screen function, it supports 10 - point touch on Windows 7 or higher operating systems. You can use your fingers to flip and zoom in/out pictures. When it comes to the auto - brightness feature, if you've enabled it, the monitor will adjust its brightness based on the surrounding light. This not only makes viewing more comfortable but also saves power. Regarding the I/O control interface, you can connect it to a reverse trigger line in a car reversing system or control your computer host. You can even customize the functions to fit your needs. As for maintenance, keep the screen clean using a soft, dry cloth. Avoid using harsh chemicals as they might damage the screen. The monitor has an integrated dustproof front panel, but still, try to keep it in a clean environment. Store the monitor in a place where the temperature is between - 32°C and 60°C, and operate it within the temperature range of 0°C to 50°C.
