Product Description

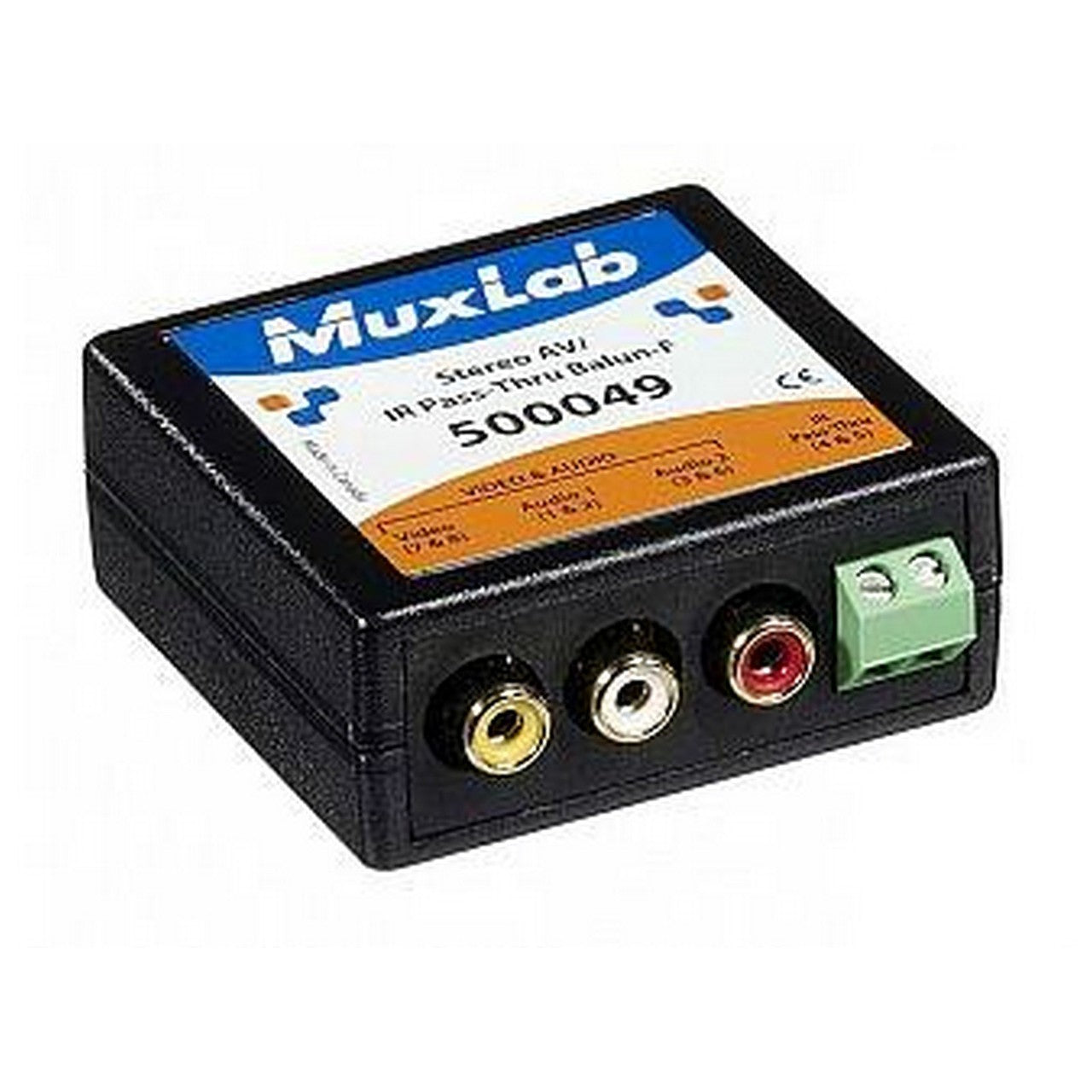

The MuxLab 500049 Female Stereo AV/IR Pass - Through Balun is a top - notch device for transmitting one composite video, one stereo audio, and one IR emitter signal through a single Cat5E/6 cable in a point - to - point setup. It offers full audio bandwidth response for high - fidelity applications and comes with built - in color - coded cable leads for easy installation. This balun can work with third - party IR Remote Control equipment, allowing the IR Emitter to use the same Cat5E/6 cable as video and audio, making cabling more cost - efficient. Ideal for classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks. Key features include video transmission up to 2,200 feet (670m) via Cat 5E/6, audio up to 3,250 ft (990m) via Cat5E/6, 20 Hz to 20 kHz audio bandwidth, IR 2 - wire emitter pass - through on the fourth twisted pair, and built - in color - coded cable leads.
Using the MuxLab 500049 Female Stereo AV/IR Pass - Through Balun is easy. First, connect your composite video, stereo audio, and IR emitter signal sources to the appropriate inputs on the balun. Then, use a single Cat5E/6 cable to make the point - to - point connection. The color - coded cable leads will help you with the proper connections. When using it with third - party IR Remote Control equipment, just connect the IR Emitter to the IR control module using the same cable. For best results, keep the cable length within the specified limits: video up to 2,200 feet (670m) and audio up to 3,250 ft (990m). As for maintenance, keep the balun in a dry and clean environment. Check the connections regularly to make sure they are secure. If you notice any issues with the signal quality, check the cable and the connections first. If the problem persists, contact the manufacturer for further assistance.
