Product Description

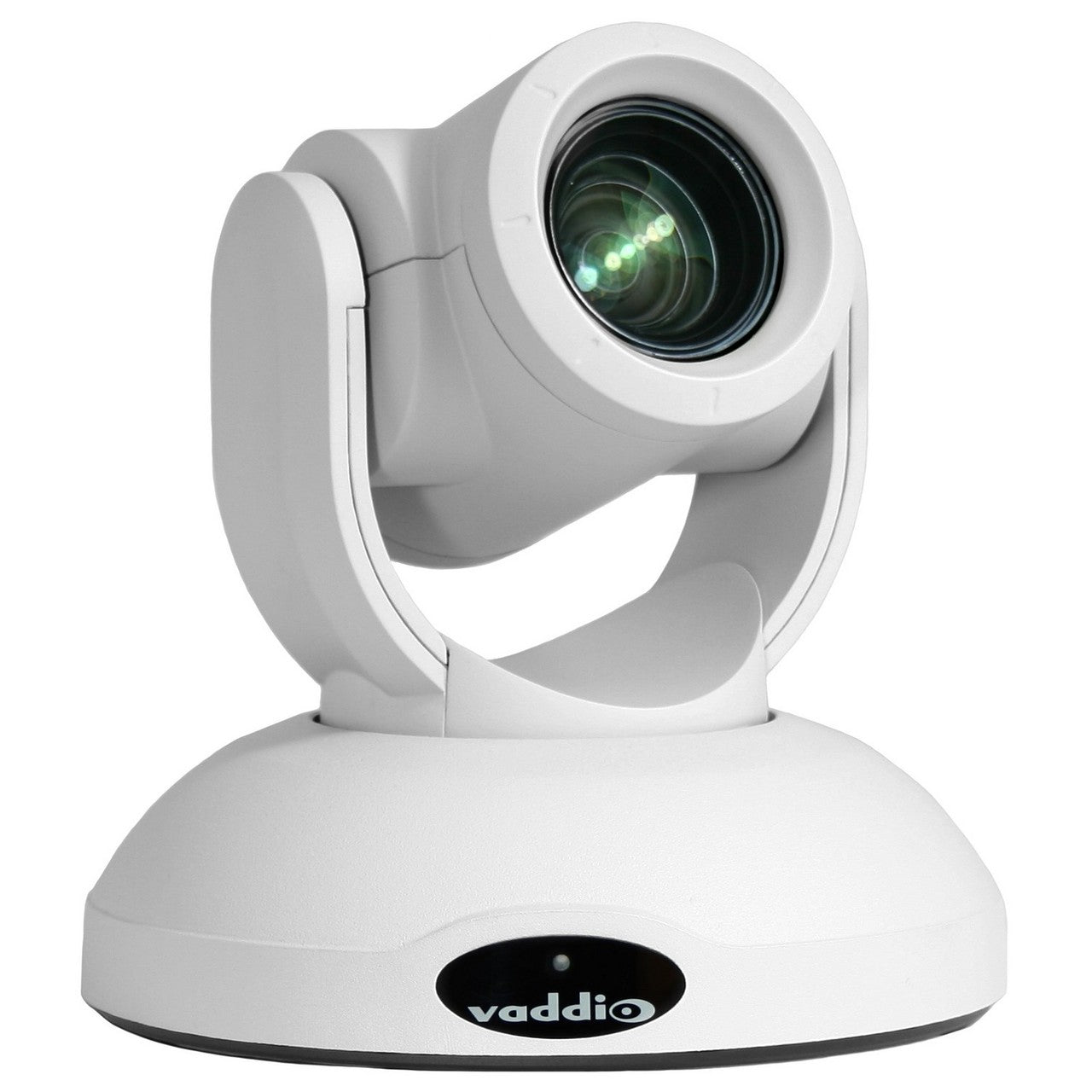

The Vaddio RoboSHOT 20 UHD OneLINK Bridge System in white is a top - notch Ultra HD (4K) PTZ camera. It offers stunning image quality and excellent low - light performance. With enterprise - class features, you can easily control it administratively and operate it remotely via a web interface and IP streaming. Ideal for medium to large spaces in higher education, corporate broadcast, and houses of worship. It has a 20x total zoom range, combining a 12x optical zoom lens with a seamless 1.67x digital zoom. The 1/2.3 - type, high - speed, low - noise, back - illuminated CMOS sensor with 9.03 total megapixels produces native UHD 2160p/30 (3840 x 2160) video images without scaling. With a 74 - degree wide horizontal field of view and a built - in CCU with browser configuration, it provides great flexibility for video production, live events, lecture capture, and conferencing. Technical specs include multiple output protocols like HDMI, HDBT, HD - SDI, and IP (H.264). It has various aspect ratios and resolutions for different outputs and streaming. The camera has great features such as a high - quality sensor, wide zoom range, and excellent control options. The OneLINK Bridge Tech offers simultaneous video outputs, audio inputs with noise/echo cancellation, and useful control features. It operates in a wide temperature and humidity range.
Using the Vaddio RoboSHOT 20 UHD OneLINK Bridge System is easy. First, make sure you have the right power supply connected. For the camera, you can use the Vaddio IR Remote Commander, web interface, Telnet, or RS - 232 API to control it. If you want to stream, you can choose from different output protocols according to your needs. When setting up for audio, connect your microphones to the two mic/line - level channels and adjust the settings using the web interface or other control methods. Keep in mind that the camera works best in an environment with recommended illumination levels of 100+ lux. Also, make sure the temperature is between 32°F to 104°F (0 °C to +40°C) and the relative humidity is between 15% to 80% and non - condensing. For storage, keep it in a place with a temperature range of - 4°F to 140°F (- 20° to +60° C) and the same humidity conditions. To maintain the system, clean the lens regularly with a soft, dry cloth. Check the power cables and connections periodically to ensure they are secure. If you encounter any issues, refer to the user manual or contact customer support.
