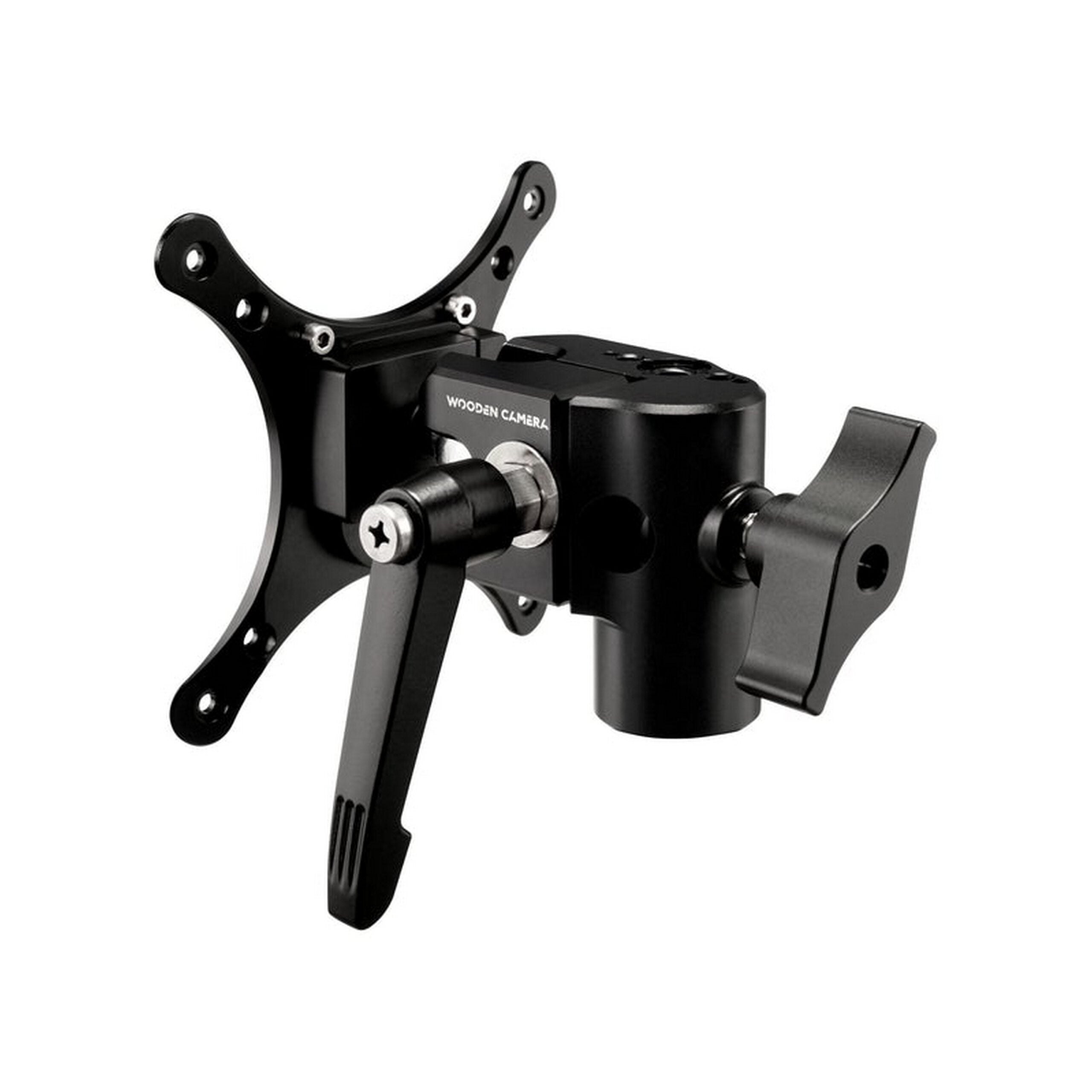

Wooden Camera Ultra QR Articulating Monitor Mount, Baby Pin, C-Stand

The Wooden Camera A20003 Ultra QR Articulating Monitor Mount with Baby Pin for C-Stand is a great choice for securely attaching production monitors up to 45 lbs (20kg). It features an integrated ARCA Swiss dovetail clamp for quick release of the monitor from the C - Stand. You can install it on a monitor in two ways: using the VESA Hole Standard (75mm or 100mm) or the ARCA Swiss dovetail clamp with select SmallHD monitors having the ARCA Swiss Slide - On Rail. The Ball Clamp system offers a wide range of movement with friction, letting you adjust the monitor's position without loosening the handle. You can tilt it up and down, pan it side - to - side, and rotate it 360° from landscape to portrait. There are ARRI - Standard 3/8” - 16 and 1/4” - 20 mounting points on top for attaching wireless receivers and secondary monitors. It's compatible with SmallHD 4K monitors and many others. Included are 4x Mounting Screws (M4 x 10 mm). It weighs 562 g (1.2 lbs) and has dimensions of 140 x 120 x 120 mm (5 x 4 x 4 in).

Using this monitor mount is easy. First, decide how you want to attach it to the monitor. You can either use the VESA Hole Standard if your monitor supports it (75mm or 100mm), or if you have a select SmallHD monitor with an ARCA Swiss Slide - On Rail, use the ARCA Swiss dovetail clamp. Then, attach the mount to a C - Stand or a 5/8” (15mm) Male Baby Pin. Once it's all set up, you can adjust the monitor's position as you like. You can tilt it up or down, pan it from side to side, and even rotate it completely from landscape to portrait. There are mounting points on top where you can attach things like wireless receivers or secondary monitors. When using it, make sure not to exceed the weight limit of 45 lbs (20kg). Also, don't over - tighten the handle as it might damage the Ball Clamp system. To maintain it, keep it clean and dry. If it gets dirty, you can use a soft cloth to wipe it. Check the mounting screws regularly to make sure they are tight and in good condition.
