Product Description

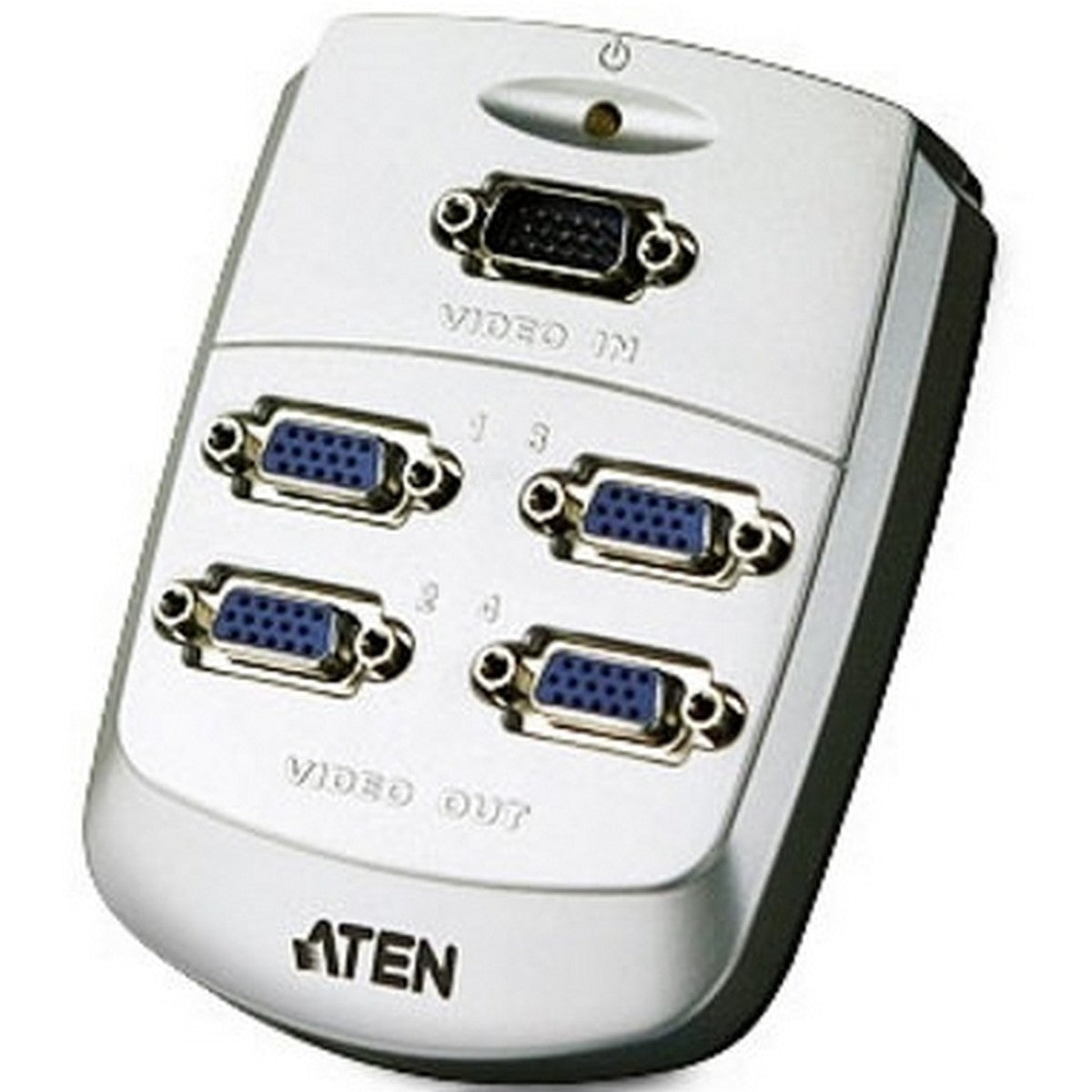

The ATEN VS84 4-Port Video Splitter is a remarkable device that duplicates the video signal from a single input source, like a computer, and sends it to up to 4 display devices such as monitors or projectors. It's not just a simple duplicator. It can enhance video signals over long distances up to 65 meters. You can cascade it three levels to other ATEN video splitters, supporting a large number of displays. It also has a compact design that can be mounted on the wall or placed on a desktop. Key features include one video input to 4 outputs, up to 250 MHz bandwidth support, long - distance transmission up to 65 m, high video resolution up to 1920 x 1440, DDC compatibility on Port 1, and support for various monitor types and operating systems like Windows 2000, Windows XP, Linux, Mac, and Sun. Technical specifications cover details about video input, output, power, environment, housing, weight, and dimensions.
Using the ATEN VS84 4 - Port Video Splitter is easy. First, connect your computer or other input source to the HDB - 15 male blue connector on the splitter. Then, connect up to 4 display devices to the 4 HDB - 15 female blue connectors. You can place it flat on a desktop or mount it on the wall as you like. If you need more display support, you can cascade it up to three levels with other ATEN video splitters. When using, make sure the power supply is stable. The splitter works best in an environment with a temperature between 0 - 50 degrees Celsius and humidity between 0 - 80% non - condensing. To maintain it, keep it clean and avoid exposing it to extreme temperatures. If you're not using it for a long time, store it in a dry place with a temperature between - 20 - 60 degrees Celsius.
