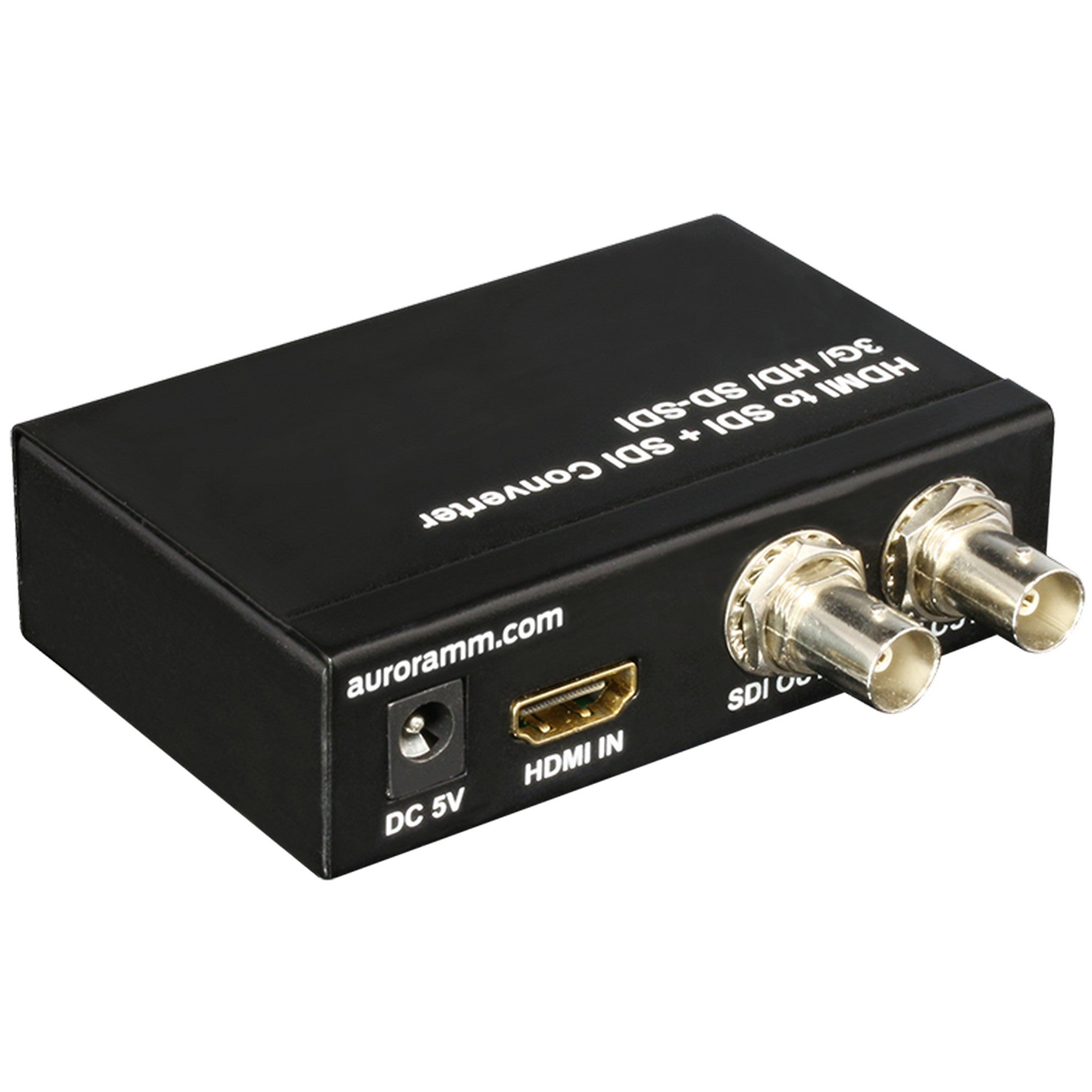

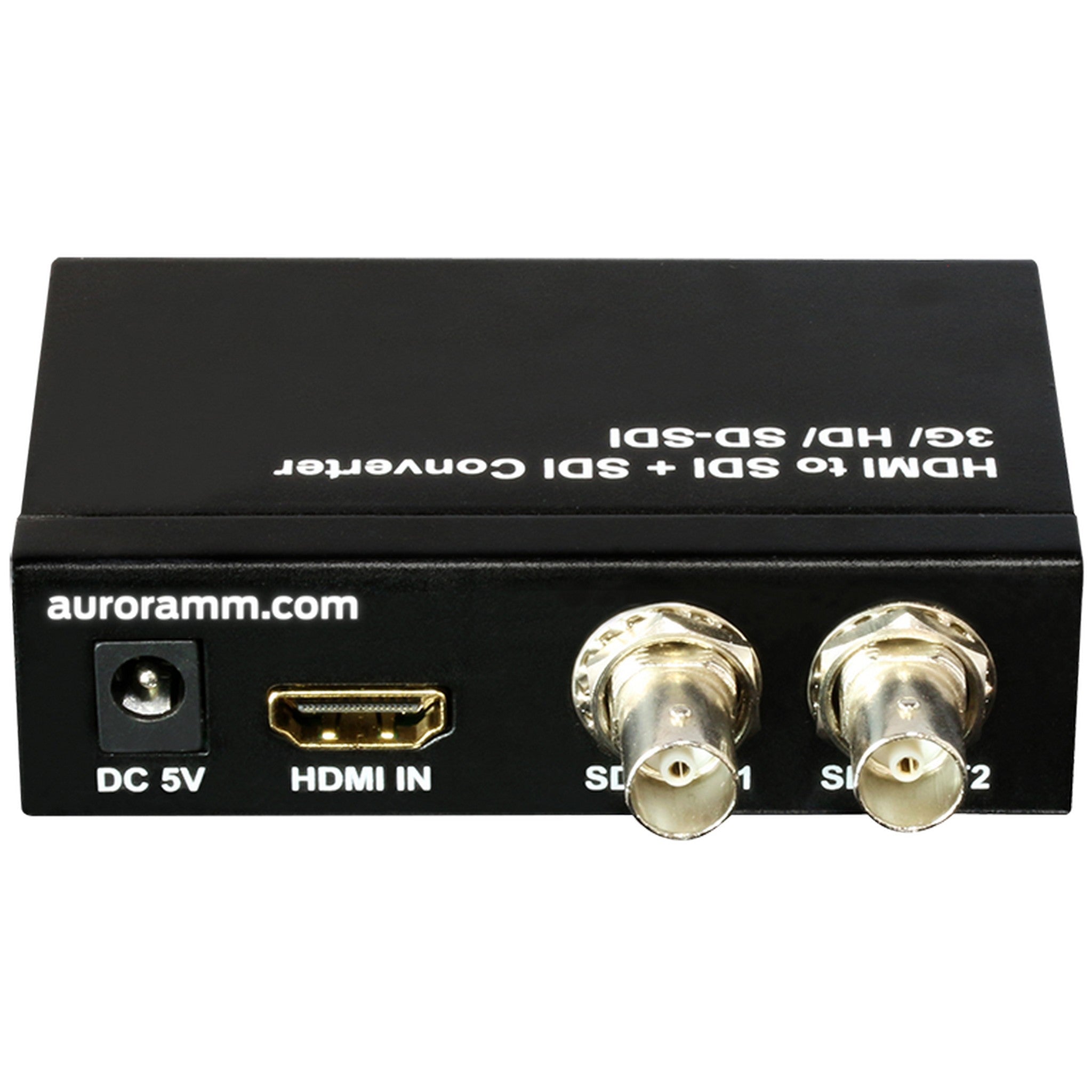

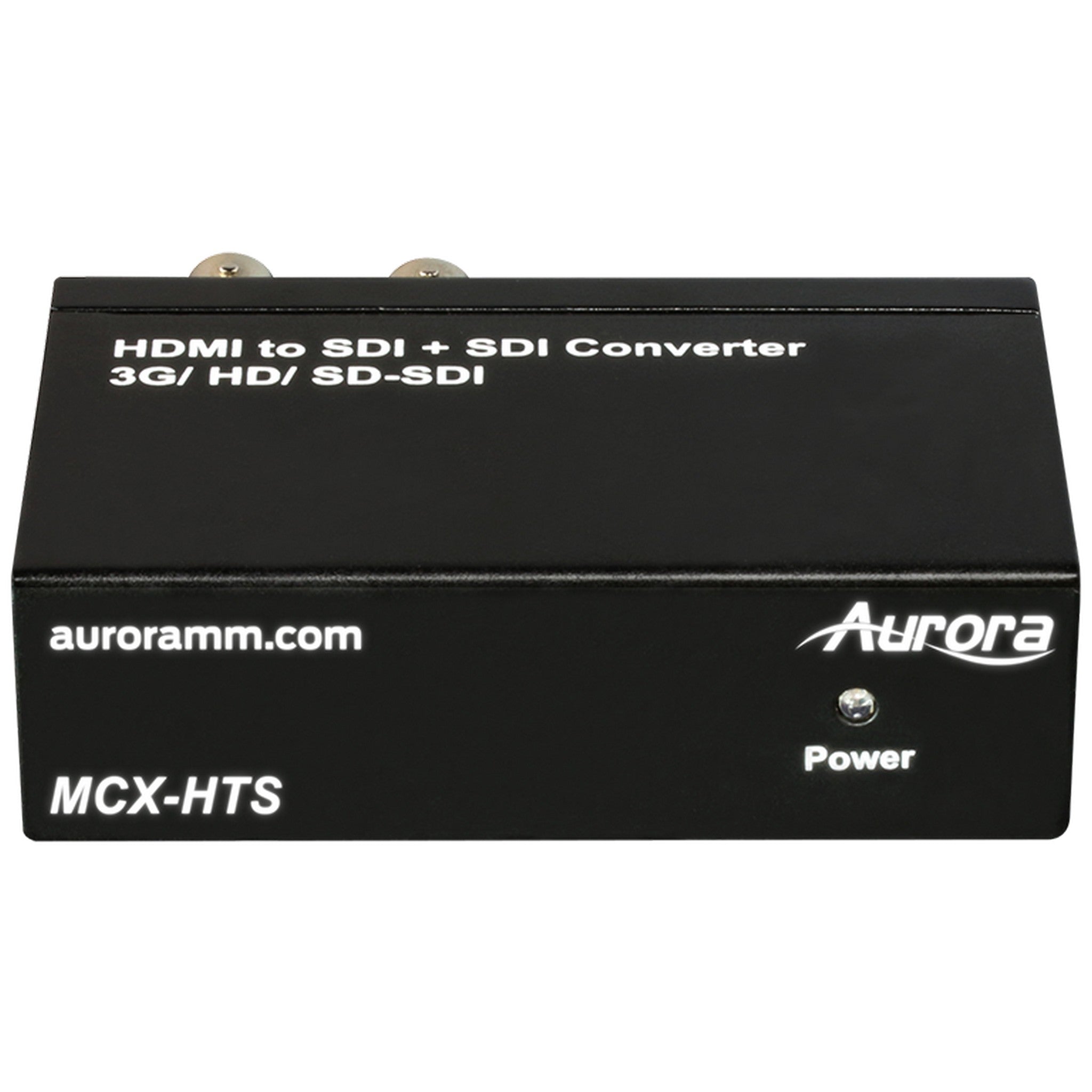

The Aurora MCX - HTS is a top - notch HDMI to dual SDI audio - video converter. It can transform your HDMI audio and video signals into two 3G/HD/SDSDI video outputs. These SDI outputs can be extended over long distances via standard coaxial cable. For 3G - SDI video distribution, it can reach up to 328ft (100m); for HD - SDI, 656ft(200m); and for SD - SDI, 984 ft(300m). With its dual SDI outputs, you can connect your HDMI video source to a local SDI display and send an extra SDI signal to your broadcasting equipment. This offers a flexible solution for any SDI broadcasting application that needs an HDMI input. Key features include 3G SDI to HDMI conversion, dual SDI outputs, a resolution of up to 1080p, auto - detection of SD - SDI, HD - SDI and 3G - SDI resolutions, and support for 225MHz/2.25Gbps per channel (6.75Gbps all channels) bandwidth. Technical specs: Signal input is HDMI, SDI data rates are 270Mb/s, 1.485Gb/s, 2.97Gb/s, output video types are SD - SDI, HD - SDI, 3G - SDI. It supports various DTV/HDTV frequencies and resolutions. The SDI distance varies by type, and the input HDMI distance is 10m (30ft). It has a metal housing, dimensions of 90 x 58 x 26mm <3.54' x 2.28' x 1.02'>, weighs 166g <5.856 oz>, uses a 5V 2A DC power supply, consumes up to 5 Watts, operates at 0 - 50C <32 - 122F>, stores at - 10 - 80C <14 - 170F>, and has a relative humidity range of 5 - 90% RH.
Using the Aurora MCX - HTS HDMI to SDI converter is easy. First, connect your HDMI source to the converter's HDMI input port. Then, use coaxial cables to connect the two SDI outputs to your desired SDI displays or broadcasting equipment. Make sure the power supply is 5V 2A DC and plug it in. The converter will automatically detect the resolution of the input signal. When using it, avoid exposing it to extreme temperatures outside the 0 - 50C <32 - 122F> operating range. Also, keep the relative humidity between 5 - 90% RH. For maintenance, simply use a dry cloth to wipe the metal housing clean. If you're not using it for a long time, store it in a place with a temperature between - 10 - 80C <14 - 170F>.
