Product Description

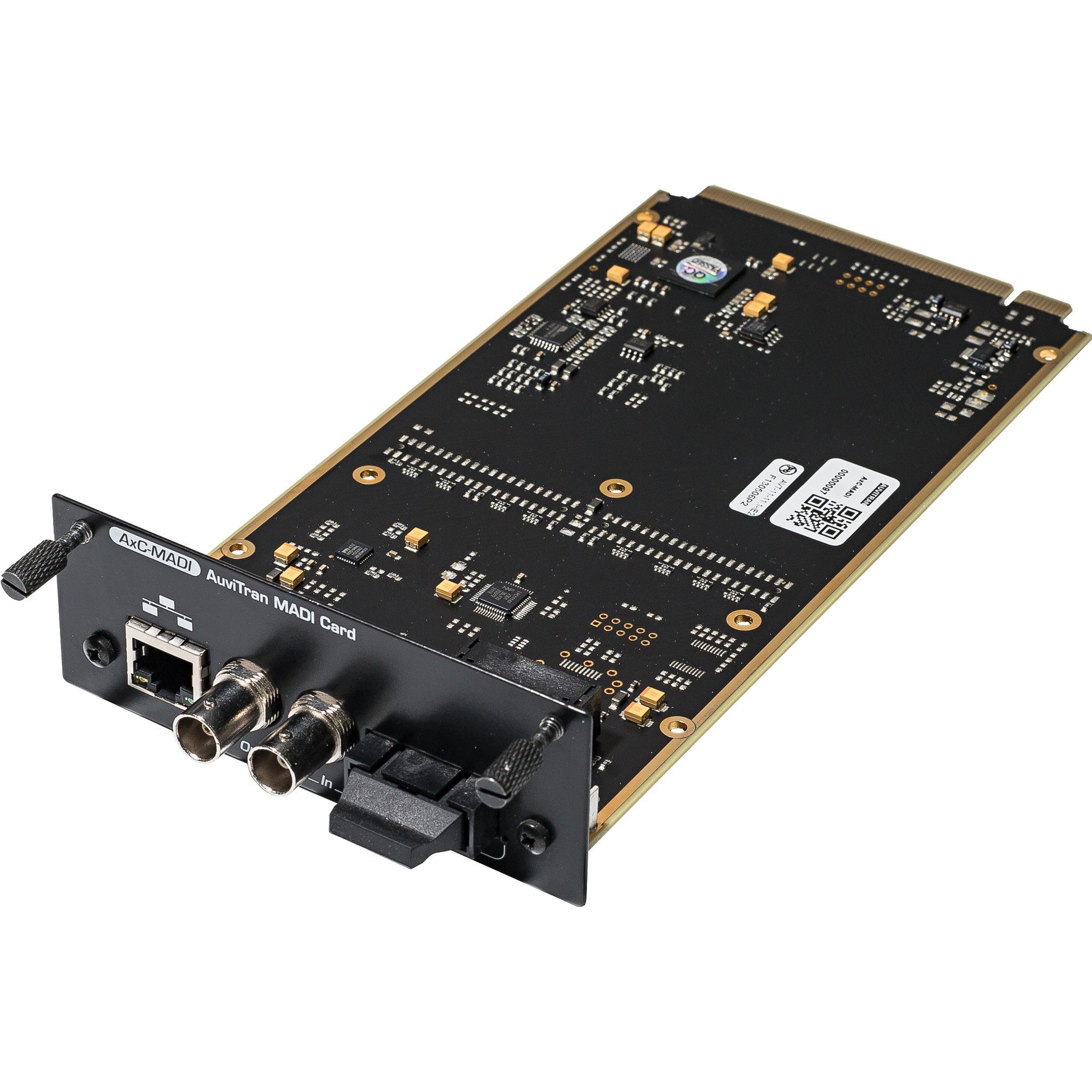

The AuviTran AxC-MADI is an outstanding MADI interface card crafted for the AuviTran Audio ToolBox platform. It's a top - choice solution for transmitting up to 64 channels of high - quality digital audio between devices using the industry - standard MADI protocol. Compatible with both AVBx3 and AVBx7 Audio ToolBox chassis, it offers great flexibility for various professional audio applications. This card supports both optical and coaxial MADI connections, ensuring it can work well with existing MADI - enabled equipment. It can operate in 64 - channel or 56 - channel modes, and supports audio resolutions up to 24 - bit and sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz, delivering excellent audio quality. The AxC - MADI integrates smoothly with other Audio ToolBox cards, enabling powerful audio routing and conversion. Whether for live sound, broadcast, or fixed installations, it provides a reliable and high - performance MADI interface. Key features include MADI interface with optical and coaxial connectors, support for different MADI modes, 24 - bit audio resolution, various sample rates, compatibility with specific platforms, remote management via AVS - Monitor software, and a dedicated control page. It's perfect for creating MADI - based systems. Product specifications cover size, power supply, temperature and humidity ranges, audio I/O, audio specs, connectivity, software integration, and part numbers.
Using the AuviTran AxC - MADI card is quite straightforward. First, make sure your Audio ToolBox chassis is either AVBx3 or AVBx7, as the card is compatible with these. Insert the card into the appropriate slot in the chassis. Connect your devices using either the optical (SC connector) or coaxial (BNC connector) MADI connections according to your equipment's requirements. You can manage the card remotely through the AVS - Monitor software on a Windows operating system (Windows 10/8/7/Vista/XP, 32 or 64 - bit). The dedicated control page in the software allows you to monitor and adjust card parameters easily. When it comes to audio settings, you can choose between 64 - channel or 56 - channel modes based on your MADI implementation needs. For sample rates, select from 44.1 kHz, 48 kHz, 88.2 kHz, or 96 kHz according to your audio quality requirements. As for maintenance, keep the card in a clean environment. Make sure the operating temperature is between 0°C to 50°C and the humidity is between 5% to 90% (non - condensing). During storage, the temperature can range from - 5°C to 70°C with humidity from 0% to 95% (non - condensing). Avoid exposing the card to physical shock or dust. If you encounter any issues, check the connections first and then refer to the software for error messages.
