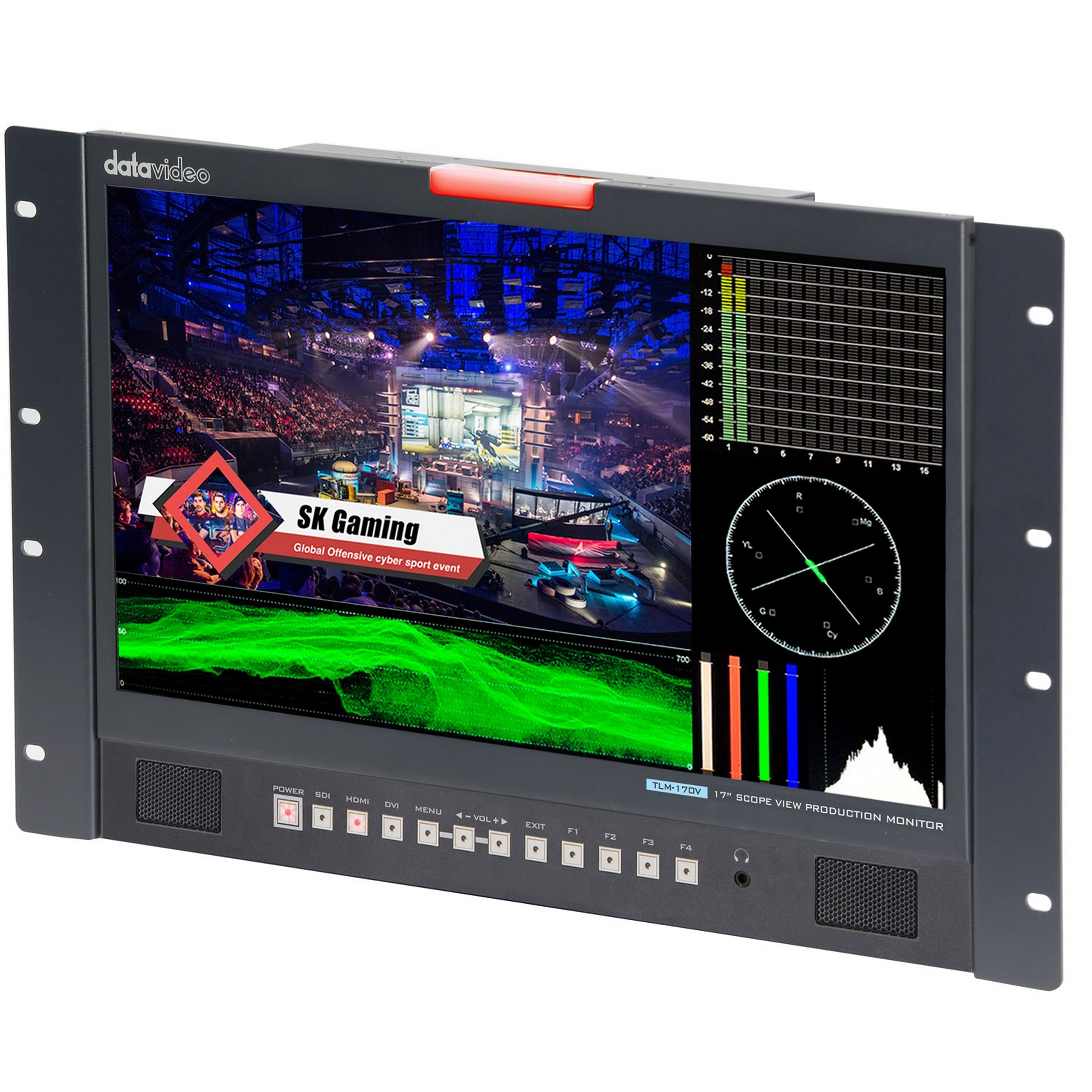

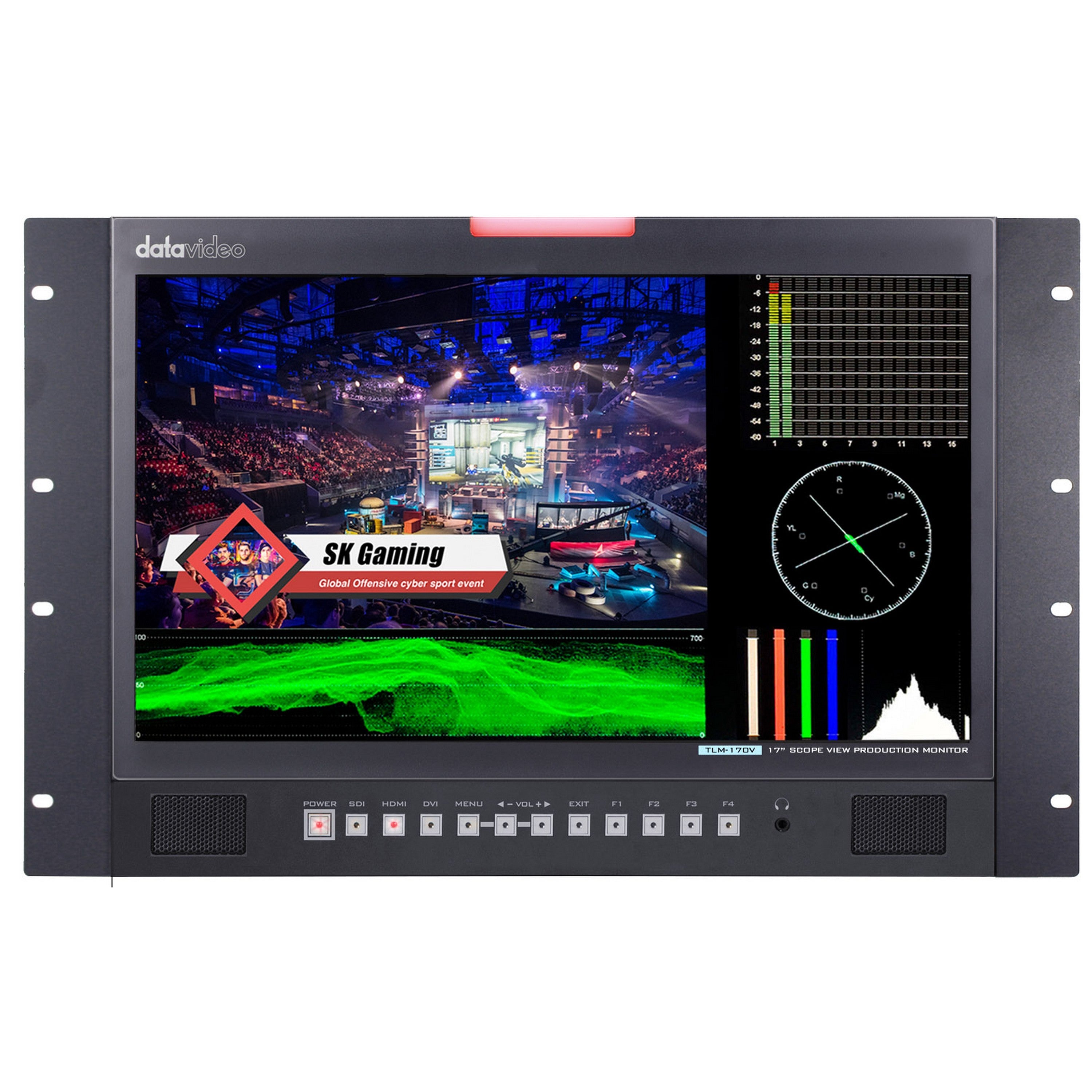

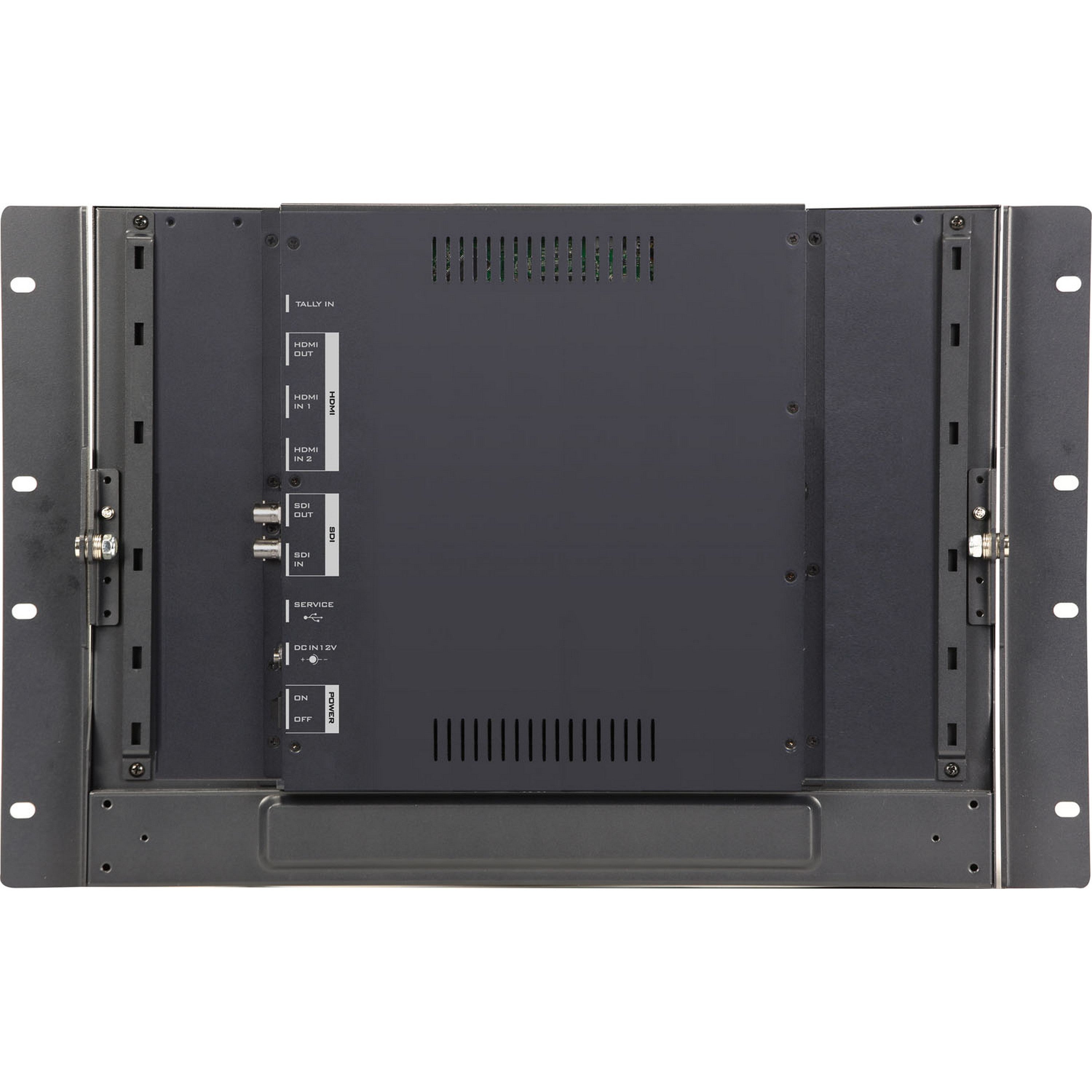

The Datavideo TLM-170VR is a 17.3-inch full HD rack mount monitor that supports 3G/HD/SD with a 1920x1080 panel resolution. It offers multiple input and output configurations, including 1 x 3G/HD/SD-SDI and 2 x HDMI inputs, along with 1 x 3G/HD/SD-SDI and 1 x HDMI loop through. The monitor can cross convert SDI and HDMI video signals, fitting well into all video production workflows. It comes with various built - in functions like column (YRGB peak), time code, waveform, vector scope, audio level meter, peaking, zoom, pix to pix, underscan, and check field. A tally light is included, making it perfect for live production. Technical specs: 17.3' LED backlit screen, 7RU rack mount chassis, wide viewing angles, 300cd/m2 luminance, 700:1 contrast, supports multiple input resolutions, 16:9 and 4:3 aspect ratios, with live (red) and cued (green) tally LEDs, 2 speakers, 1 headphone jack. Dimensions are 403 x 305 x 41 mm, weighs 4.5 kg, operates at 0 - 40 C, and requires DC 10 - 18V, 32W power.
Using the Datavideo TLM - 170VR monitor is quite straightforward. First, connect your video sources to the appropriate inputs. You can use the 3G/HD/SD - SDI or HDMI inputs depending on your device. For continuous signal flow, use the loop - through outputs. The built - in functions like the waveform and vector scope can help you adjust the video quality. Just select the function you need from the menu. When using the tally light, it's great for live production as it clearly shows the status (red for live, green for cued). As for maintenance, keep the monitor in a clean and dry place. Avoid exposing it to direct sunlight or extreme temperatures. If there's dust on the screen, use a soft, dry cloth to gently wipe it. When not in use, turn off the power to save energy and extend the monitor's lifespan. Make sure to use a proper power supply within the specified voltage range (DC 10 - 18V) to prevent any damage to the device.
