Product Description

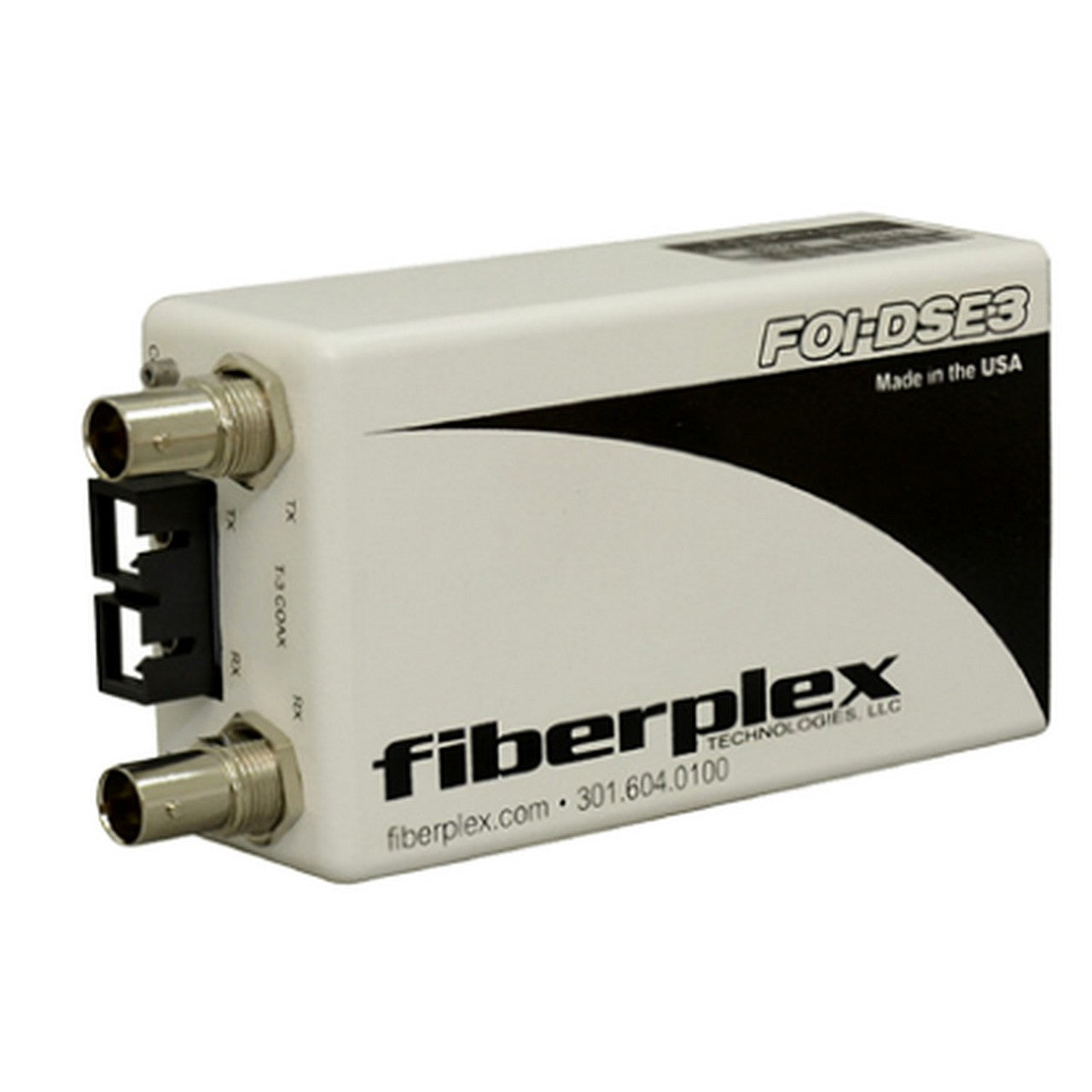

The Fiberplex FOI - DSE3 - ST Isolator is a top - notch solution for T3 or DS3 communications. It offers full electrical isolation for E3 communications, making it ideal for high - electrical - noise areas or inside/outside RF shielded enclosures. Fiber optic cables are immune to interference from impulse noise, crosstalk, and EMI. They also enhance communication privacy as they don't emit any radiation. Moreover, fiber optic cables can transmit data over much longer distances compared to copper wiring. Traditional E3 coax cabling has a 1100ft (335m) limit, but this unit's multimode optics can reach 2km, and singlemode optics can go up to 20km. Key features include a 34.368 Mbps data rate, compliance with ITU - T G.703, G.823, G.775 for loss of signal, suitability for various applications like SONET ADMs, PDH Equipment, and ATM WAN access routers and switches, meeting K41 protection specs for E3 systems, and having multimode ST optics. Technical specs involve a power requirement with a voltage range from 7V to 12V (typical 9V) and 300mA supply current. It can be stored at - 40 to 85 °C and operated at 0 to 50 °C. The data rate is 34.368 Mbps, line encoding is AMI/HDB3, and the interface connector is BNC. Multimode details are 62.5/125 μm size, 2 km max distance, 1300 nm wavelength, - 16 dBm output power, - 33 dBm receiver sensitivity, and 17 dB loss budget.
Using the Fiberplex FOI - DSE3 - ST Isolator is easy. First, make sure the power supply meets the requirements, with a voltage between 7V and 12V and a current of 300mA. Connect the device using the BNC interface connector. When it comes to fiber optic cables, choose the appropriate type - multimode for shorter distances up to 2km or singlemode for longer distances up to 20km. Remember to operate the device within the temperature range of 0 to 50 °C. For storage, keep it between - 40 and 85 °C. In terms of maintenance, keep the device clean and free from dust. Check the fiber optic cables regularly for any signs of damage. If you encounter any issues, refer to the technical specifications to troubleshoot. This isolator is a great choice for reliable E3 communications, so handle it with care to ensure long - term performance.
