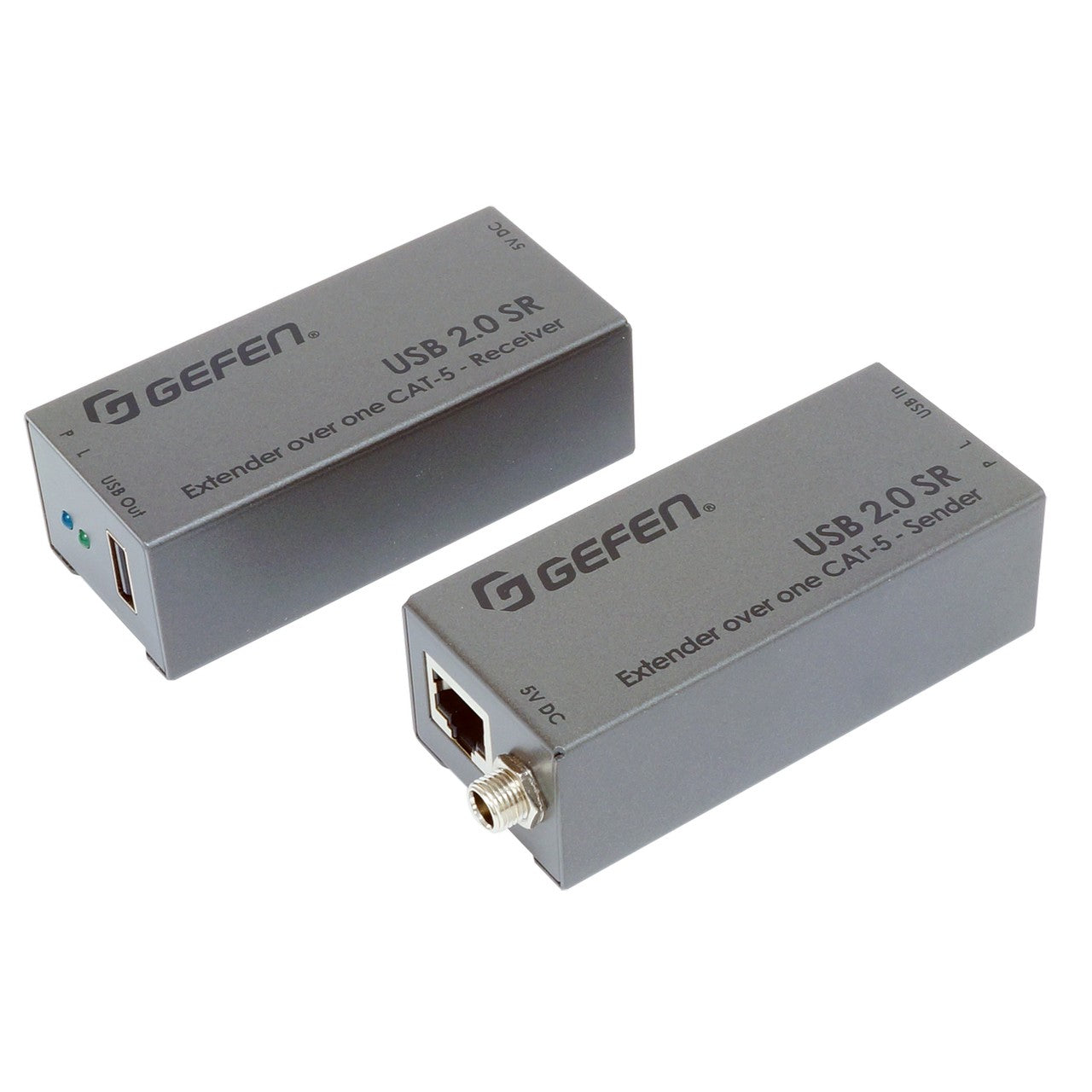

Gefen EXT-USB2.0-SR USB 2.0 Extender Over One Cat-5 Cable

The Gefen EXT-USB2.0-SR is an outstanding USB 2.0 extender. It can extend USB 2.0 up to 50 meters (165 feet) over a single CAT-5e cable. This means you can place your high - speed USB devices far from your computer. It's compatible with major operating systems like Windows, macOS, and Linux, and no software drivers are needed. Installation is a breeze; you can set up the sender and receiver units in minutes without any configuration. It supports both USB 2.0 and 1.1, which is great for high - performance applications such as digital imaging and interactive gaming. Key features include long - distance extension, support for industry - standard CAT - 5e cables, true plug - and - play operation, and the ability to reach the full 480 Mbps speed of USB 2.0. The receiver can handle a powered USB connection up to 2A at 5V. The sturdy metal enclosures offer protection against EMI and RFI, and their compact size makes them easy to install and hide. Technical specifications cover speed, connectors, power, temperature, humidity, and more.

Using the Gefen USB 2.0 Extender is super easy. First, connect the sender unit to your computer using the USB type B connector. Then, use a CAT - 5e cable to link the sender and receiver units via the RJ - 45 connectors. Finally, plug your USB device into the USB type A connector on the receiver. You don't need to install any drivers; just power on both units, and you're good to go. When using it, make sure the operating temperature is between 32°F and 122°F (0°C to 50°C) and the relative humidity is between 5% and 90% non - condensing. For storage, keep it in a place where the temperature is between - 4°F and 158°F (- 20°C to 70°C) and the relative humidity is between 0% and 95% non - condensing. To maintain it, keep the enclosures clean and free from dust. If there are any signs of damage, such as a broken cable or non - functioning LED indicators, stop using it and contact the manufacturer.
