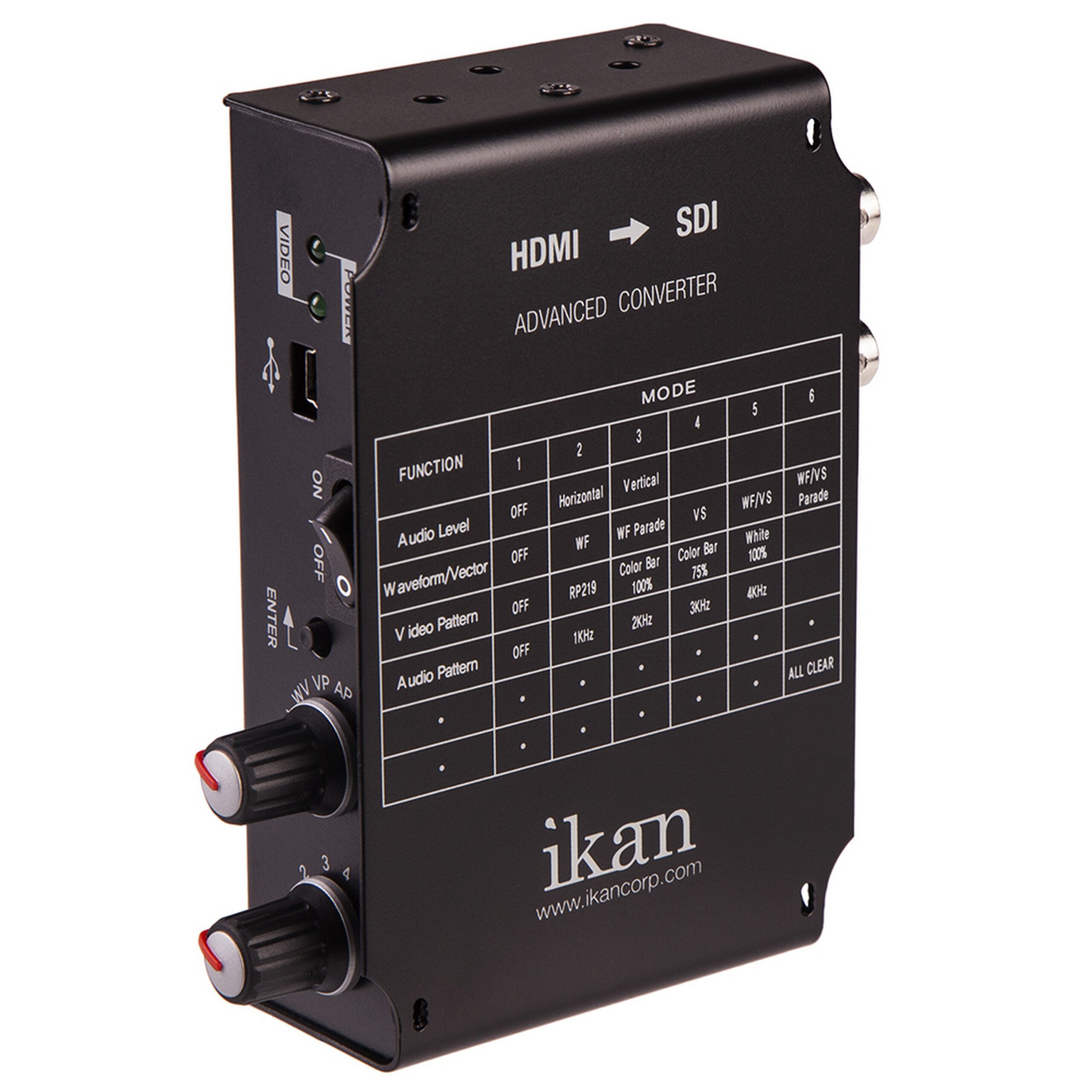

Ikan IKC-AH2S Advanced HMDI to SDI Converter

The Ikan IKC-AH2S is a top - notch HDMI to SDI converter crafted for professionals. It offers proven reliability in real - world use, a sturdy build, and all the features needed for outstanding professional performance. This converter comes with excellent video monitoring capabilities, including waveform and vectorscope functions, and a video test pattern generator that can produce color bars and RP219 patterns. It supports up to 8 channels of HDMI embedded audio and has an audio test pattern generator for frequencies from 1 to 4kHz. There's a ¼” - 20 threaded mounting point at the bottom for easy installation. The package includes an AC Adapter, CD Manual, the HDMI to SDI Converter itself, and a power cord. Key features: Full HD HDMI to SDI conversion; Waveform (single/parade) and vectorscope for video monitoring; Color bars and RP219 video test patterns; Up to 8 - channel HDMI embedded audio; 1 - 4kHz audio test pattern generator; 1/4” - 20 bottom thread for mounting. Technical specs: Brand - Ikan; Dimensions: 4.6 x 3.9 x 1.4' (116.8 x 99 x 35.5mm); Inputs: 1 x HDMI (HDCP v.1.1), 19 - pin female; Operating Temperature: - 10°C to 40°C (14°F to 104°F); Output Video Format: 2 x SDI (BNC Port); Power: 4DC (7V - 24V) or AC Adapter (100 - 230V, 50Hz/60Hz); Power Consumption: 6W; UPC Code: 847983012367; Package includes 1 power cord, 1 HDMI to SDI converter, and 1 AC adapter.

Using the Ikan IKC - AH2S is easy. First, connect the HDMI source to the HDMI input on the converter. Then, connect the output devices to the SDI ports. You can power it using the AC adapter or 4DC power within the specified voltage range. When using the video and audio test pattern generators, just select the desired pattern on the converter. For mounting, use the ¼” - 20 threaded point at the bottom. Keep in mind to operate it within the temperature range of - 10°C to 40°C. To maintain the converter, keep it clean and free from dust. Don't expose it to moisture or extreme heat. If you encounter any issues, refer to the CD manual included in the package.
