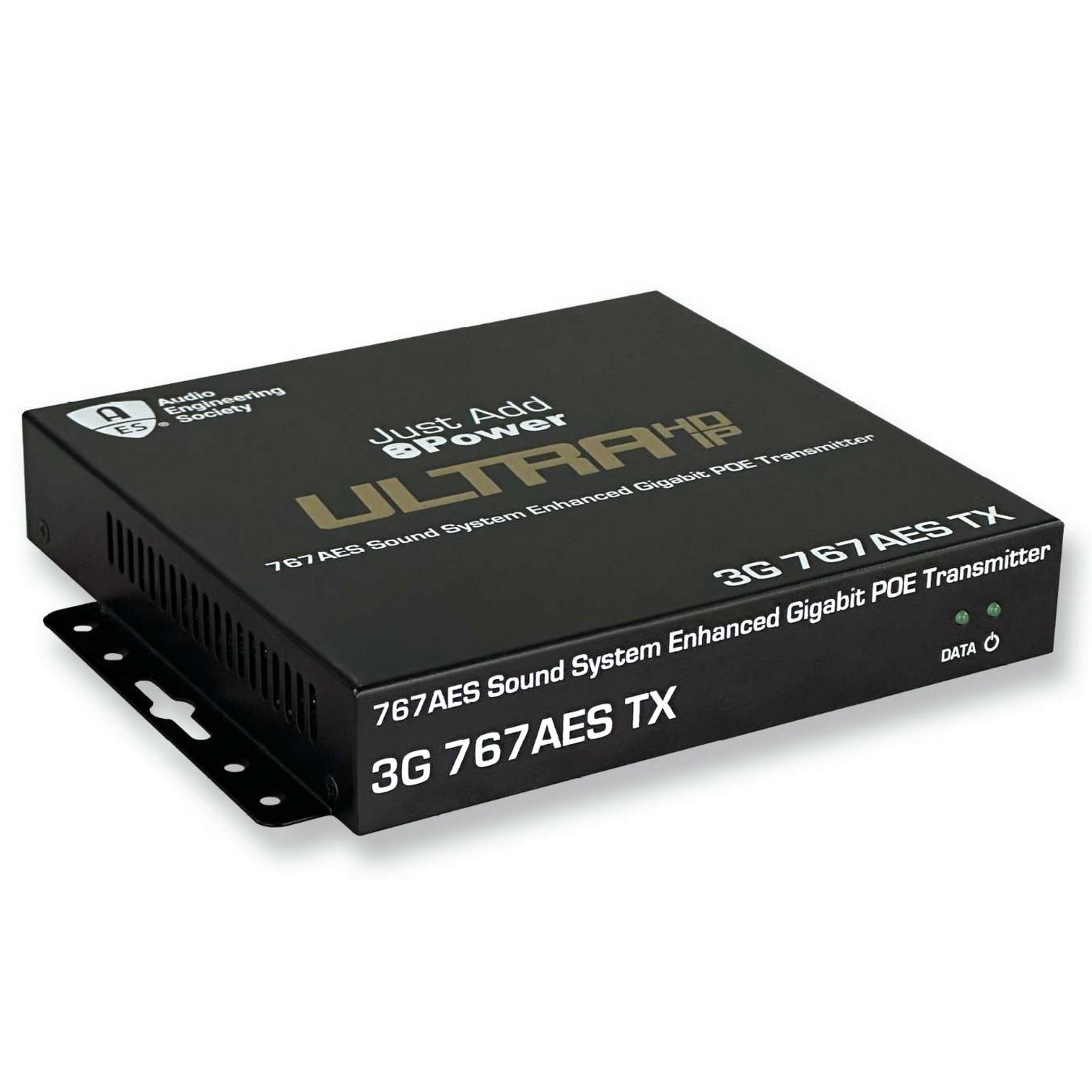

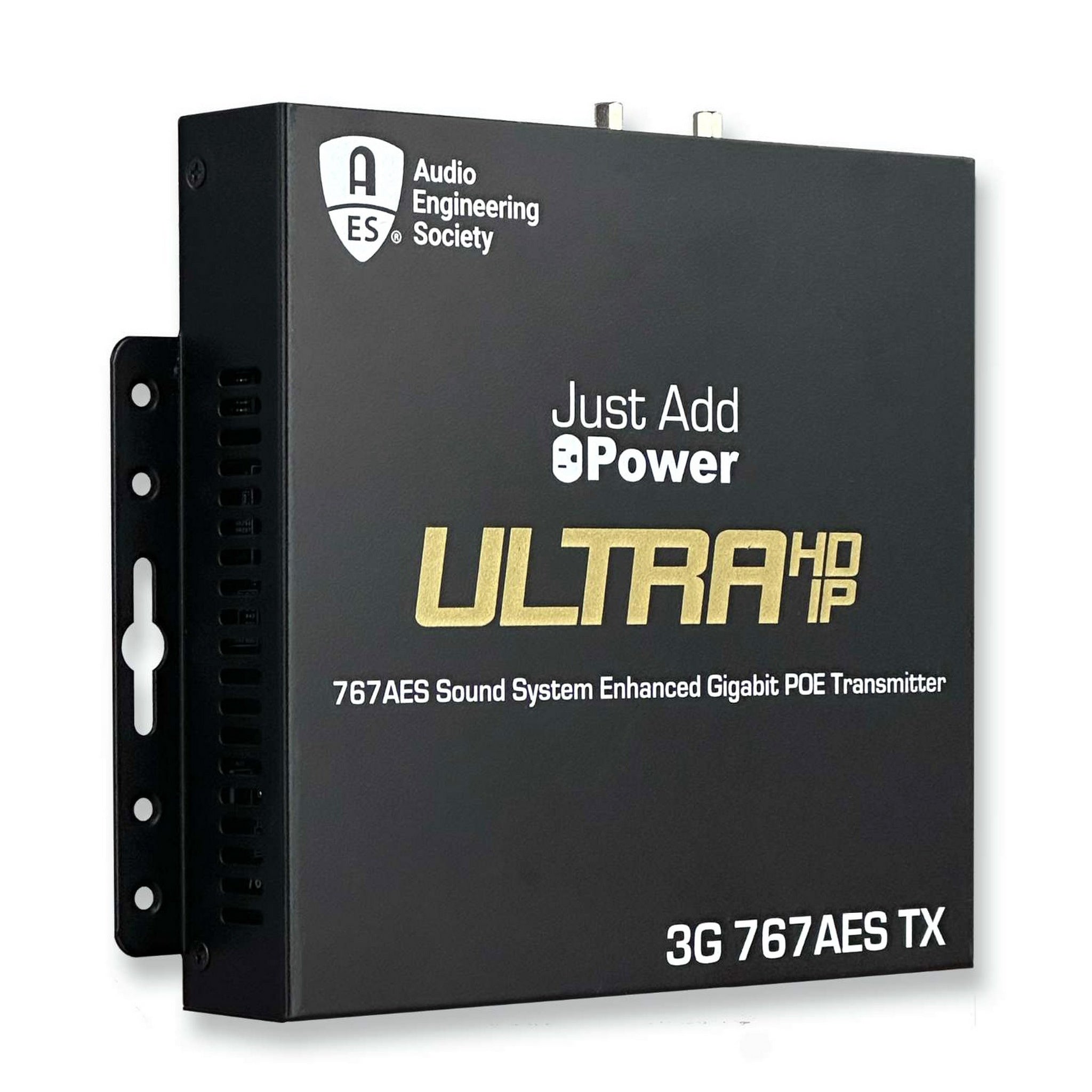

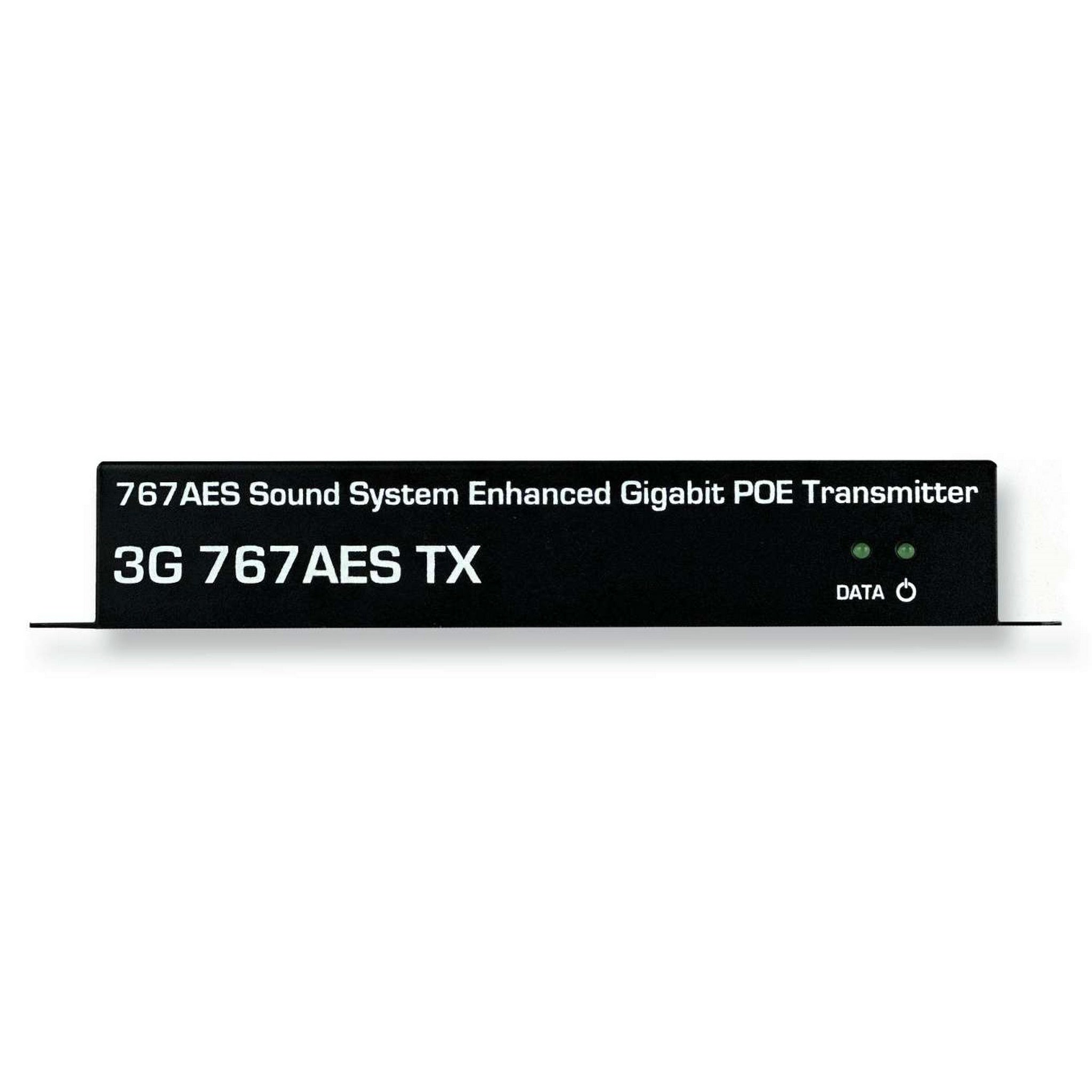

Discover our latest innovation, the Just Add Power 3G Ultra AES767 4K Audio-Enabled Transmitter. This cutting - edge device is engineered to work seamlessly with AES67 audio systems and Just Add Power AV distribution setups, taking your audio - visual enjoyment to a whole new level. You can pair it with any 3G Ultra or 2G Omega devices, ensuring great compatibility with top audio - over - IP technologies. Whether you're upgrading an existing system or starting a new one, this transmitter is a top - notch choice for quality and performance.
The transmitter comes with an HDMI loopout, making AV distribution smooth and efficient. It encodes 4K or lower resolution source devices into IP, transmitting them over the network with high fidelity and security, thanks to HDCP 2.2 support. With support for LPCM audio up to 8 channels, it offers an immersive sound experience with ultra - low AES67 audio latency of less than 4ms.
It also provides multiple control options like RS232, CEC, and IR control, ensuring easy connectivity and flexibility. The ability to input HDMI audio directly into AES67 systems, along with a local HDMI loopout, makes it extremely versatile and easy to operate. Whether for professional installations or advanced home setups, this transmitter is reliable and performs exceptionally well.
Key Features:
- HDMI loopout compatible with AES67 audio and Just Add Power AV systems
- Seamless integration with 3G Ultra or 2G Omega devices
- Encodes 4K or lower resolution sources into IP for network transmission
- Supports HDCP 2.2 for secure content
- LPCM audio support for up to 8 channels
- Ultra - low AES67 audio latency (less than 4ms)
- Direct HDMI audio input to AES67 systems
- AES67 audio extraction for compatible receivers
- Local HDMI loopout for added flexibility
- RS232, CEC, and IR control options
Specifications:
- Bandwidth: 180 - 500 Mbps
- Compliance: HDCP 2.2, RoHS/FCC/CE
- Dimensions & Weight: 184 x 30 x 152 mm (7.2” x 1.2” x 6.0”) / 0.45kg (1.0 lb)
- Encryption: AES - 128 Encryption
- Operating Temperature: 0 - 60 Degrees C / 32 - 140 Degrees F
- POE: IEEE 802.3af (15.4W)

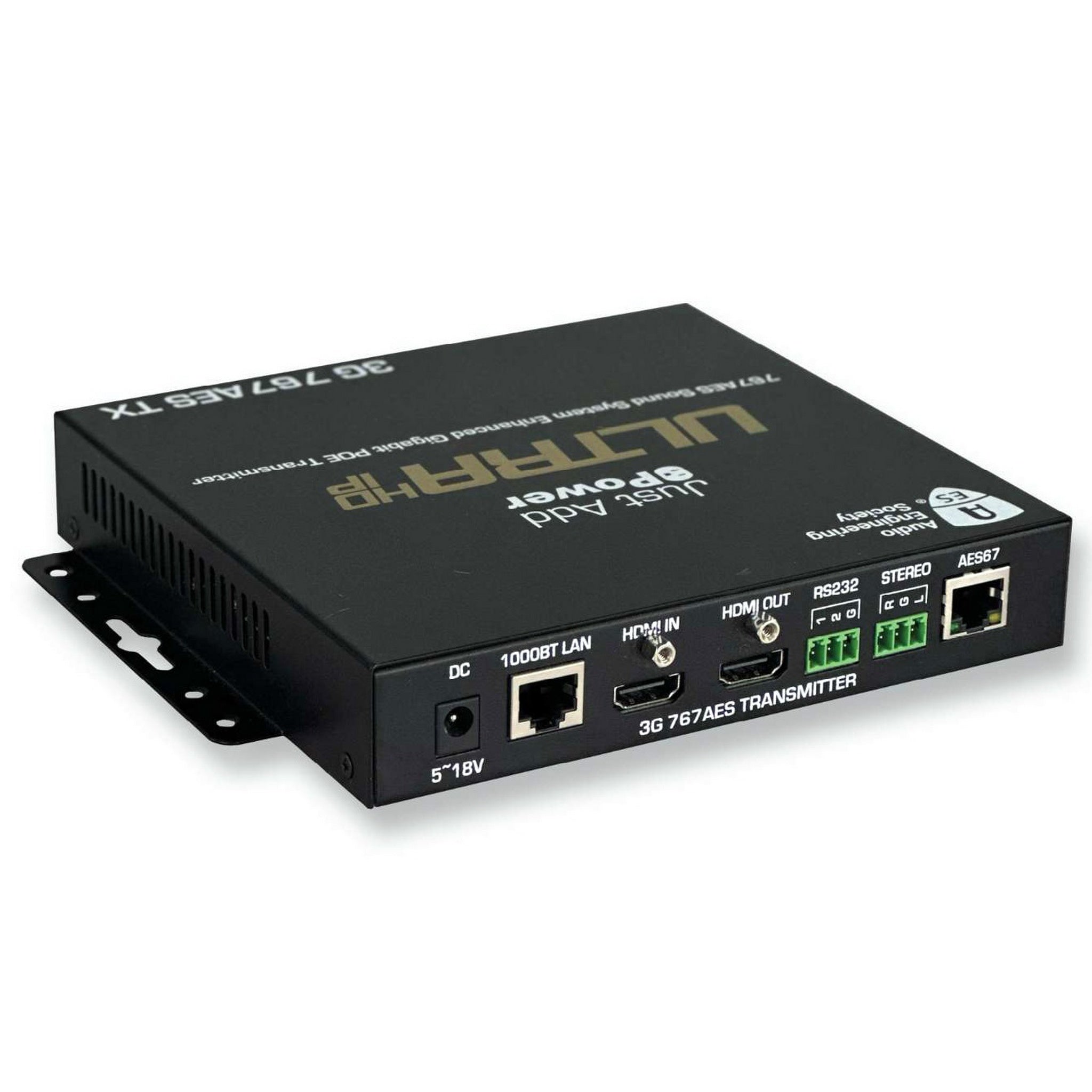

- Ports: Gigabit Ethernet, HDMI In, HDMI Out, 3 - pin Euroblock RS232, 3 - pin Euroblock Stereo Out, AES67 Gigabit Ethernet
- Power Supply (not included): 5V - 18V, 5.5mm/2.1mm, Positive tip
- Supported Resolutions: Up to 4096x2160 (interlaced & progressive)
Package Contents:
- Just Add Power 3G Ultra AES767 4K Audio - Enabled Transmitter
- User Manual
- RS232 3 - pin Euroblock
- Stereo 3 - pin Euroblock
Using the Just Add Power 3G Ultra AES767 4K Audio - Enabled Transmitter is easy. First, connect your source device, like a TV or a media player, to the HDMI In port. Then, use an Ethernet cable to connect the transmitter to your network. You can also connect it to other devices through the HDMI Out port for loopout. If you want to control it, you can use the RS232, CEC, or IR control options.
When it comes to power, you need to provide a power supply (it's not included in the package). Make sure to use a 5V - 18V power supply with a 5.5mm/2.1mm connector and a positive tip. You can also use POE (IEEE 802.3af) if your network supports it.
Here are some things to keep in mind. Don't operate the transmitter in extremely hot or cold temperatures. The ideal operating temperature is between 0 - 60 Degrees C (32 - 140 Degrees F). Also, make sure your source device's resolution is up to 4096x2160 (both interlaced and progressive) for proper encoding.
For maintenance, keep the transmitter clean and free from dust. You can use a soft, dry cloth to wipe it. If you're not using it for a long time, store it in a cool and dry place. And always refer to the user manual for detailed instructions and troubleshooting tips.
