Product Description

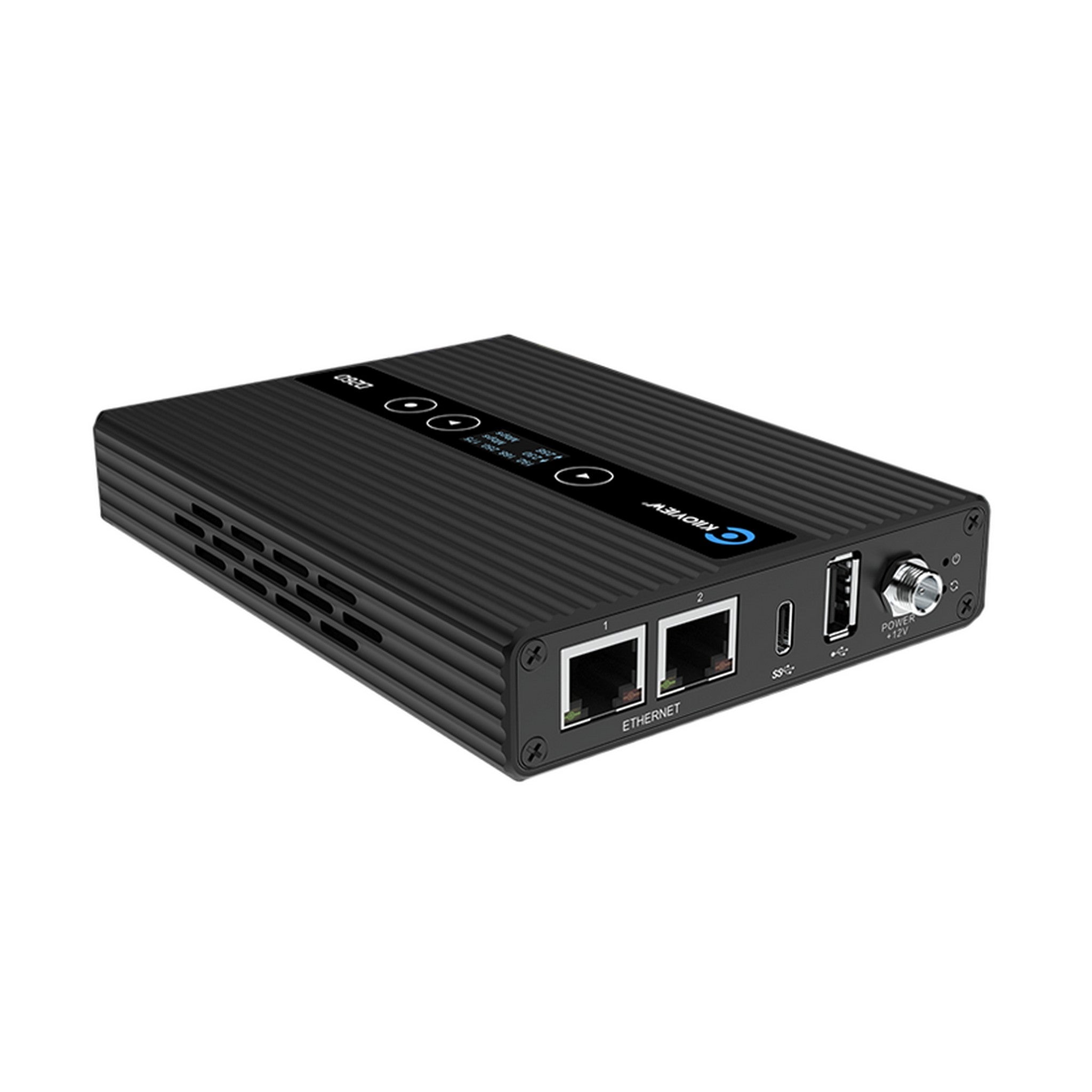

The Kiloview D260 is an advanced 4-channel HD H.265 HDMI/SDI decoder. It's an upgrade from the original DC230, packed with new features like better decoding, more ports, wider protocol support, and a handy LCD screen. It offers great value at a low cost.
**Top-Notch Decoding**: Supports H.265/H.264 decoding and can handle 4 channels of 1080p60 video streams simultaneously. You can customize the 4 video outputs for single display or PIP.
**Wide Protocol Support**: Ideal for IP-based video transmission, it supports NDI|HX3* (beta), NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP.
**More Output Interfaces**: Compared to DC230, it has two HDMI 2.0 ports, one 3G-SDI port, and 2 USB ports (Type-A and Type-C). It can output in multiple ways, like independent, multi-channel combination, or single flow replication.
**16 Preview + 4 Output**: Allows you to preview 16 video streams and select 4 for output. It's also useful for monitoring.
**Powerful Audio Decoding**: Supports various audio formats and enables real-time audio switching, mixing, and gain adjustment, with output through HDMI, SDI, and 3.5mm ports.
**Custom Layouts**: You can customize multi-output displays, including grids and PIP, and adjust display settings.
**LCD Screen and Touch Buttons**: Comes with an LCD screen and touch buttons for easy real-time status checking.
**Technical Details**: Video outputs are 2 HDMI and 1 3G-SDI. Audio outputs include HDMI, SDI, and 3.5mm. It supports H.264 and H.265 video formats, and various audio formats. Streaming protocols are diverse. It has a 0.96” LCD display, custom layouts, intercom, OSD, and tally features. Network connections are via 2 Ethernet ports, and there are 2 USB ports. Power supply is DC 12V/1A, managed by WebUI/KiloLink Server. Power consumption is max 7W, with a size of 162.85mm x 104.00mm x 25.00mm and weight of 328.18g. Operating temperature is -20°C to 60°C.
Using the Kiloview D260 is easy. First, connect it to your power source using the DC 12V/1A power supply. Then, connect your video and audio sources to the appropriate ports like HDMI, SDI, or USB. You can use the Ethernet ports for network connections.
When setting up, access the WebUI or KiloLink Server to manage the decoder. You can select the video streams you want to preview and output. For audio, you can adjust settings like switching it on or off, mixing, and gain.
If you want to customize the display layout, just use the touch buttons on the LCD screen. You can create custom grids or use PIP.
Here are some things to keep in mind. Make sure the operating temperature stays between -20°C and 60°C. Avoid using the decoder in extremely humid or dusty environments. When using the NDI|HX3 protocol, note that it's still in beta.
For maintenance, keep the decoder clean. You can use a soft, dry cloth to wipe it. If there are any issues, check the connections first. If the problem persists, refer to the user manual or contact customer support.
