Product Description

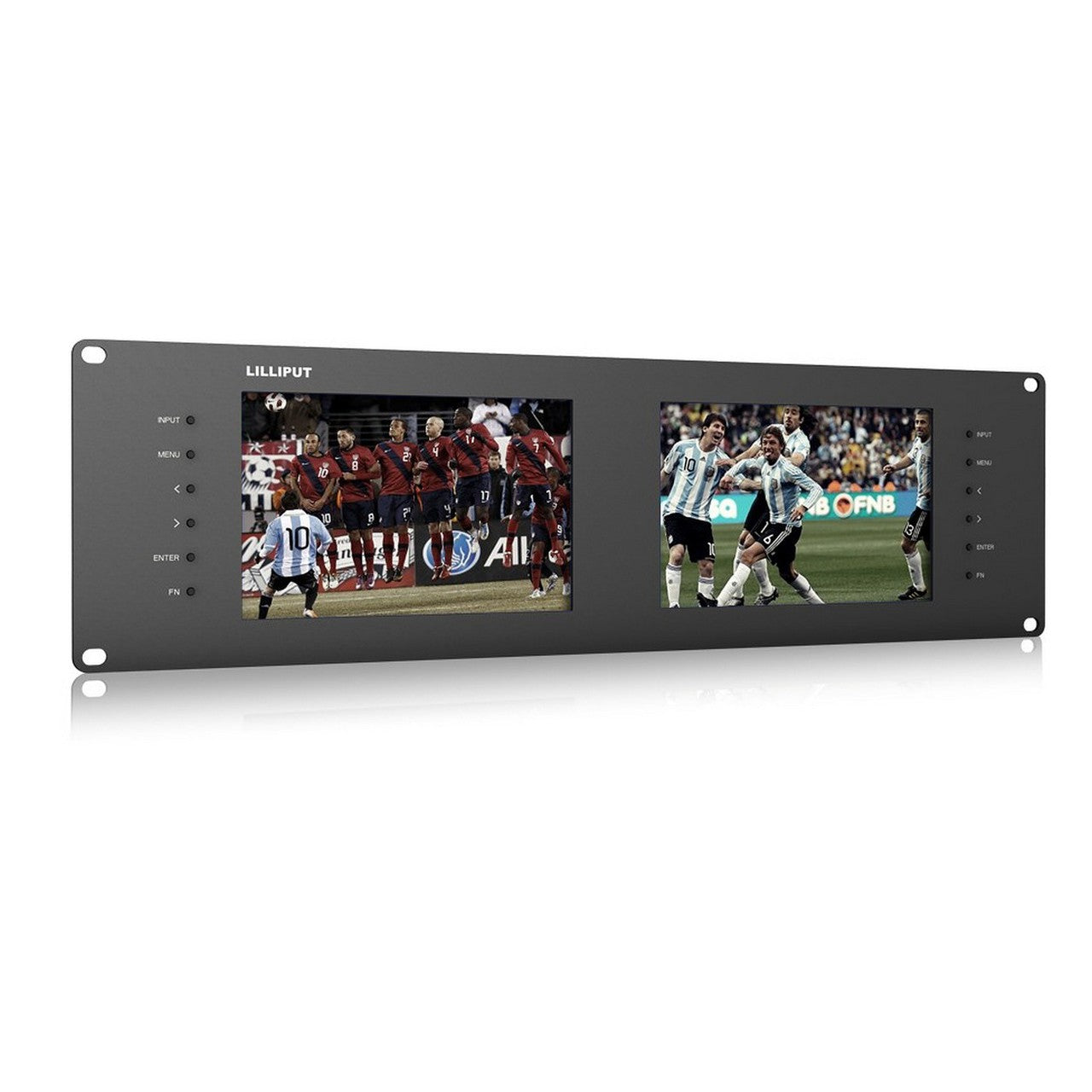

The Lilliput RM - 7028/S is a pair of 7 - inch rack monitors with a wide - screen aspect ratio. It comes with two high - definition IPS screens, delivering amazing picture quality at an affordable price. With a 178 - degree viewing angle, operators can view both monitors from one spot, and the whole technical team can also get a good view. The 400 cd/m² brightness allows for comfortable viewing even in daylight, making it ideal for outdoor gigs like festivals. The 800:1 contrast ratio ensures crisp and deep colors, so you can accurately see what's on the screen. It offers multiple connectivity options, including 3G - SDI, HDMI, YPbPr, composite, LAN, and USB 2.0. Key features include a wide - viewing - angle IPS panel, high resolution (1280 - 800), high brightness, high contrast, fast response time, dual 3G - SDI inputs, a metal housing, a slim and portable design, and a TALLY interface with an indicator light. Technical specs cover display, input, output, power, environment, dimensions, and weight.
Using the Lilliput RM - 7028/S monitors is easy. First, connect your devices to the available input ports like 3G - SDI, HDMI, etc. Make sure to choose the right input source on the monitor. You can view the content clearly from a wide angle. When using it outdoors, the high - brightness feature will help you see the screen well. For power, connect it to a DC 7 - 24V power source. Remember, the operating temperature should be between - 20°C and 60°C, and the storage temperature between - 30°C and 70°C. To maintain these monitors, keep them clean with a soft, dry cloth. Avoid exposing them to extreme heat or cold. If you're not using them for a long time, store them in a proper place within the recommended temperature range.
