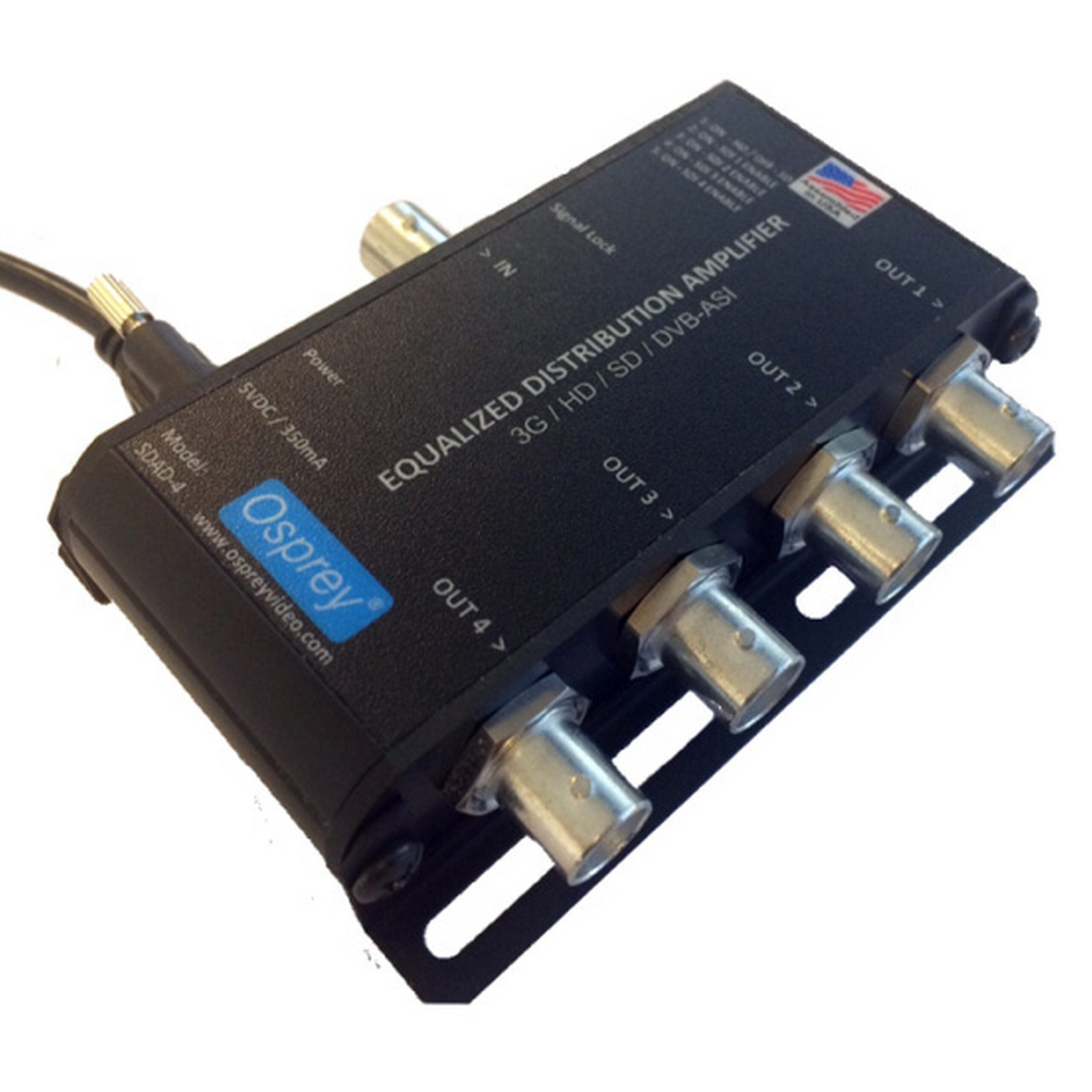

Osprey Video SDAD-4 1 x 4 USB Powered Equalized SDI Distribution Amplifier with DVB-ASI

The Osprey Video SDAD-4 is a top - notch 1 x 4 USB - powered equalized SDI distribution amplifier with DVB - ASI. The SDI Distribution Amplifier series offers 12G, 3G, HD, SD, and DVB - ASI models, which are highly adaptable for complex video workflows. There are both reclocking and non - reclocking versions for different needs. You can power these amplifiers from any USB 2.0 / 3.0 port or use the included Wall Power Supply with the lockable USB power cable, making it extremely user - friendly. Crafted with high - quality components, it has automatic input detection. It can accept any single - link SDI input up to 12G, send it directly to four outputs while keeping ancillary data and embedded audio intact. Automatic cable equalization reduces signal attenuation over long distances. To save power and maintain signal quality, you can easily turn off unused ports using accessible dip switches. Key features include 1 input and 4 outputs, support for 3G, HD, SD - SDI, DVB - ASI, and a non - reclocking design.

Using the Osprey Video SDAD - 4 is a breeze. First, decide how you want to power it. You can either connect it to a USB 2.0 or 3.0 port on your device or use the included Wall Power Supply with the lockable USB power cable. Next, connect your single - link SDI input source to the amplifier's input port. The amplifier will automatically detect the input signal up to 12G. Then, connect your output devices to the four output ports. You'll get the same signal with ancillary data and embedded audio preserved. If you're not using all the output ports, you can save power and keep the signal strong by using the dip switches to turn off the unused ports. When it comes to maintenance, keep the amplifier in a clean and dry place. Avoid exposing it to extreme temperatures or humidity. Regularly check the connections to make sure they are secure. If you notice any issues, contact the manufacturer for support.
