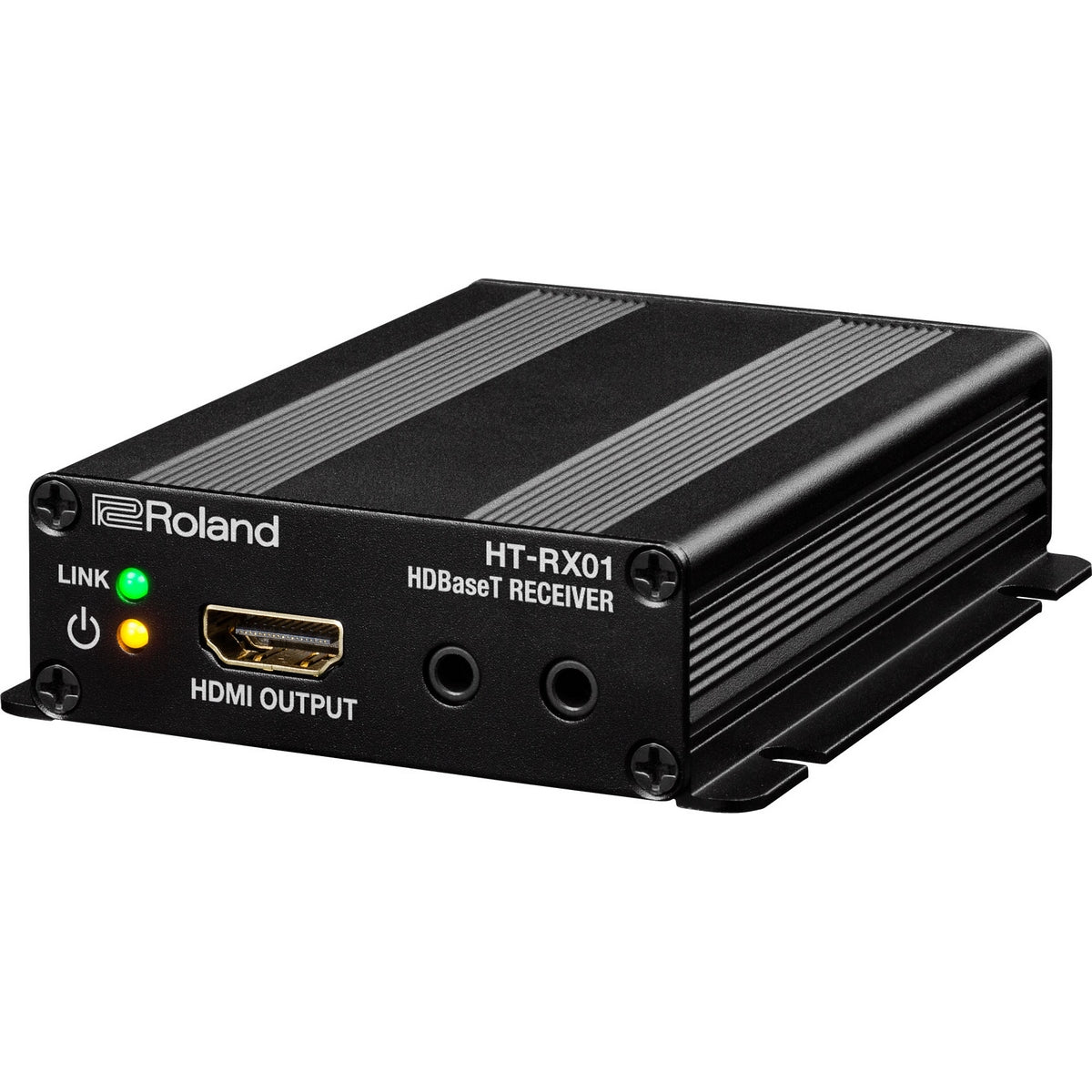

Roland HT-RX01 HDBaseT Receiver

The Roland HT - RX01 is an outstanding HDBaseT - compatible receiver. It can transmit HDMI signals up to 100 meters over an Ethernet cable, making it ideal for long - distance setups. Key features include converting HDBaseT signals to HDMI output, supporting a maximum of 1080/60p and WUXGA for HDMI, being HDCP compliant, and having the ability to perform RS - 232C transmission. The input formats are diverse, covering multiple resolutions and refresh rates. It supports various audio formats with a maximum of PCM 8ch, Dolby Digital, True HD DTS - HD Master Audio. The input connector on the HT - RX01 is an RJ45, while the output is an HDMI Type A 19 - pin connector. It's powered by an AC adaptor, has compact dimensions of 81 (W) x 93 (D) x 24 (H) mm or 3 - 3/16 (W) x 3 - 11/16 (D) x 1 (H) inches, and weighs 300 g or 11 oz excluding the AC adaptor. Accessories include an AC adaptor, three types of AC plugs, a 2 - meter RS - 232 conversion cable, three ferrite cores, and an Owner's Manual.

Using the Roland HT - RX01 is quite simple. First, connect the HT - RX01 to the source device using the RJ45 input connector. Then, connect the HDMI output of the HT - RX01 to your display device. Plug in the AC adaptor to power it up. When selecting input formats, make sure your source device is set to a supported resolution and refresh rate. As for audio, the receiver supports various formats, so just choose the one that suits your needs. When it comes to maintenance, keep the device in a dry and well - ventilated place. Avoid exposing it to extreme temperatures or humidity. Regularly check the cables for any signs of damage. If you need to use the RS - 232C transmission, refer to the included Owner's Manual for detailed instructions. And don't forget to use the ferrite cores on the cables to reduce electromagnetic interference.
