Product Description

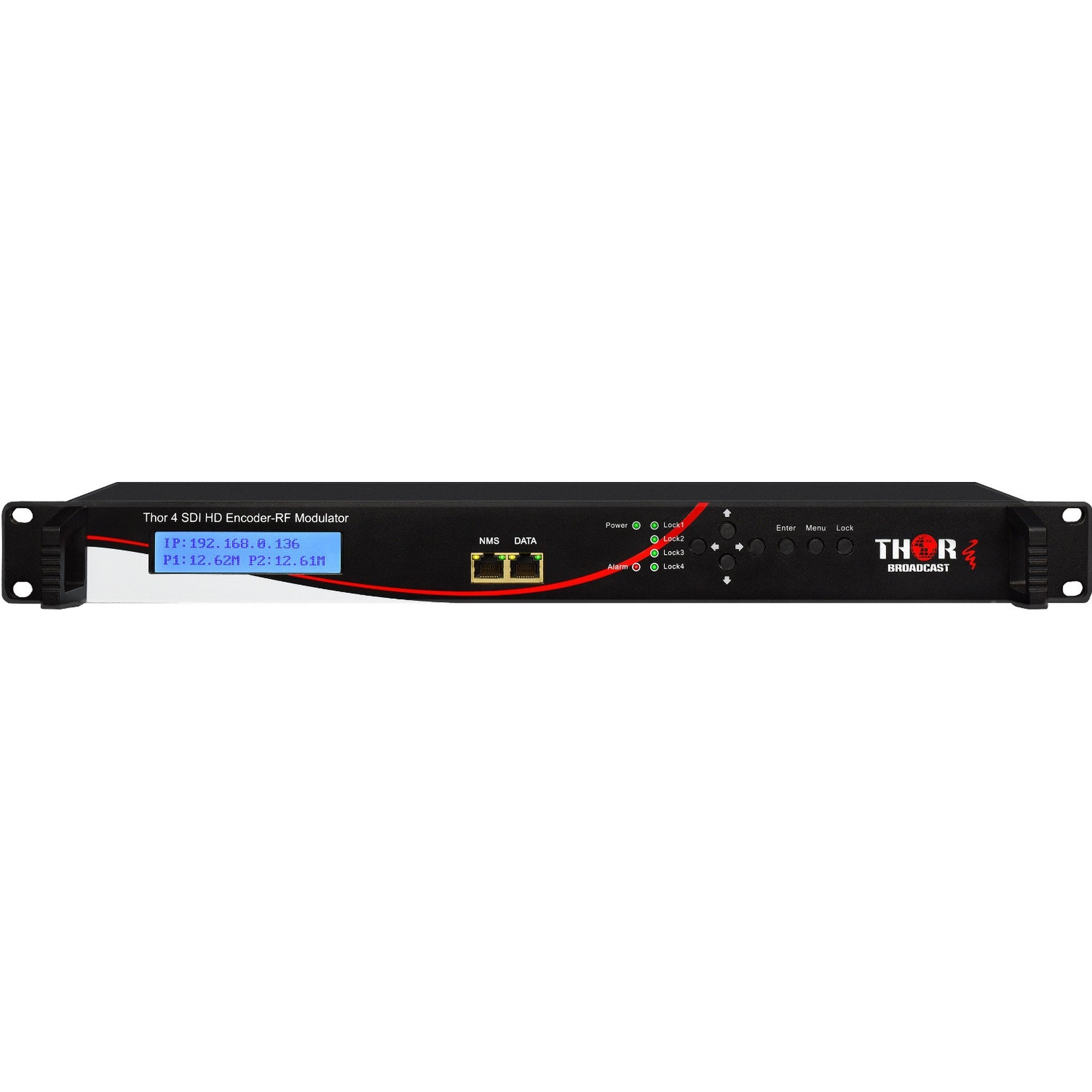

The Thor Fiber H - 1SDI - QAM - IPLL is a top - notch encoder modulator designed for live video scenarios. It's a low - latency SD/HD - SDI input encoder that has won high praise from numerous AV professional integrators in the USA. SDI is the go - to option for high - end cameras and digital video feeds when top - quality video is essential. With its low - latency encoding, it can transform any headend into a provider of ultra - fast live HD video across any infrastructure. Encoding times can range from as low as 70ms to 250ms, which is ideal for a PRO - DVB encoder working with live camera feeds. This encoder modulator can handle 1, 2, or 4 channels of SD/HD - SDI feeds and generate QAM, ASI, or IPTV streams for distribution or contribution. It's widely used in many professional and collegiate stadiums and arenas. This multi - channel SDI unit is a cost - effective powerhouse, known for its excellent encoding picture quality. It can function as an encoder, a modulator, an IPTV server, or all three at once. The SDI - QAM unit outputs in MPEG - 2 or H.264, making it easy to distribute video in 720p, 1080i, or 1080p60. Combining channels or stacking units is simple thanks to the RF inputs and outputs on each unit, including DVB - ASI input and output for headend contribution. Key features include a 70 ms low - latency encoding for quick display, 1x HD - SDI input and 1x ASI input with QAM, IPTV, and ASI output, the ability to distribute or broadcast any live HD - SDI digital video source, a combination of encoder, modulator, IPTV server, and ASI mux, web - server control on a separate network port, and encoding in MPEG - 2 or H.264 video codecs at 0.5 - 19 Mbps.
Using the Thor Fiber H - 1SDI - QAM - IPLL encoder modulator is straightforward. First, connect your SD/HD - SDI video source to the 1x HD - SDI input. You can also connect an ASI source to the ASI input if needed. Then, configure the output settings according to your requirements. You can choose to output QAM, ASI, or IPTV streams. For IPTV streaming, make sure your network settings are correct. You can control the unit through the web server on a separate network port. Just open your web browser and enter the IP address of the unit. When it comes to encoding, you can select either MPEG - 2 or H.264 video codecs with bit rates ranging from 0.5 to 19 Mbps. For audio, there are multiple codecs available with different bit rates. Some important things to note: Keep the unit in an environment with an operating temperature between 0 - 45 C. The power input should be 100 - 240 VAC auto - switching 20W. Don't expose the unit to extreme humidity or dust. For maintenance, regularly check the connections to ensure they are secure. If you notice any performance issues, restart the unit. You can also clean the exterior of the unit with a soft, dry cloth.
