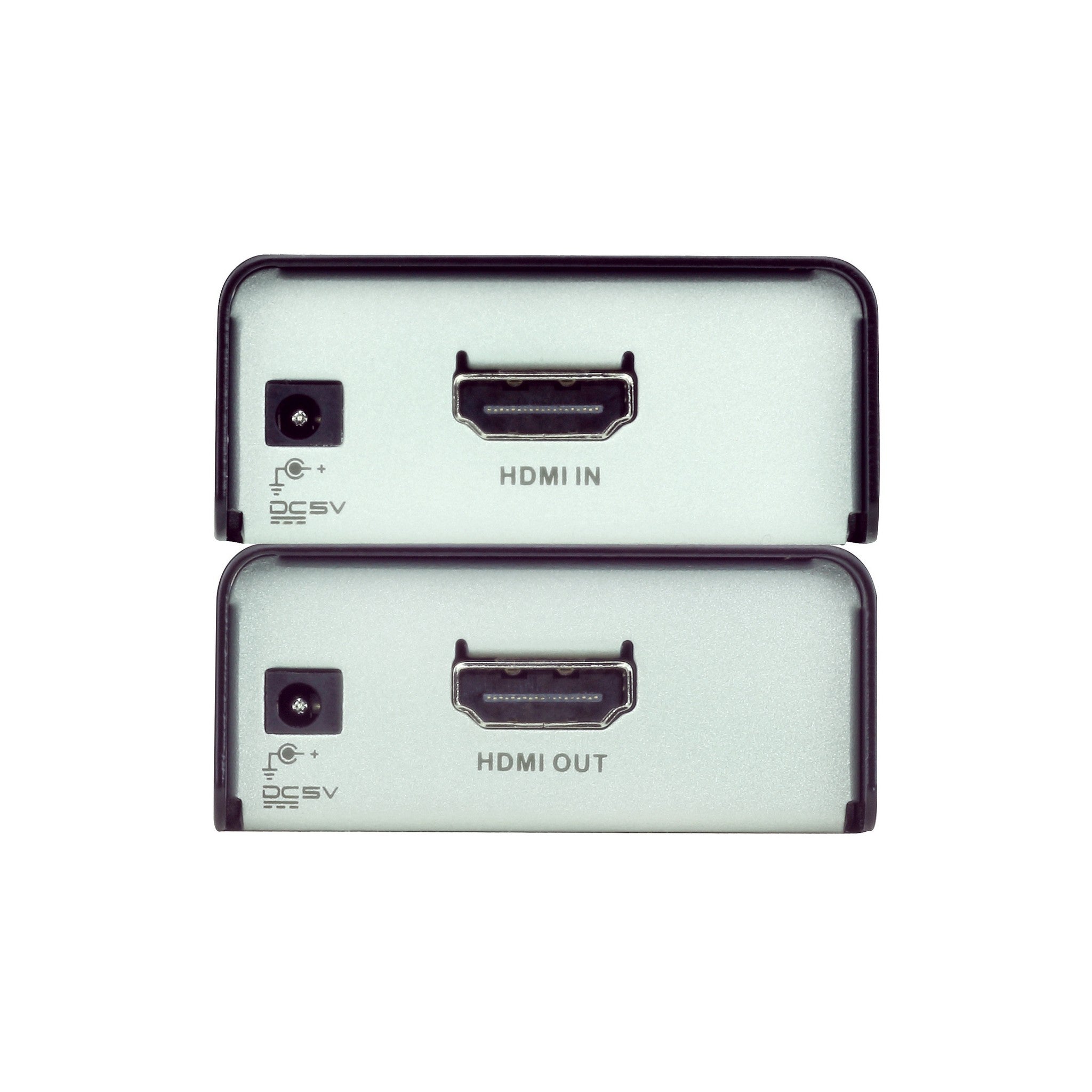

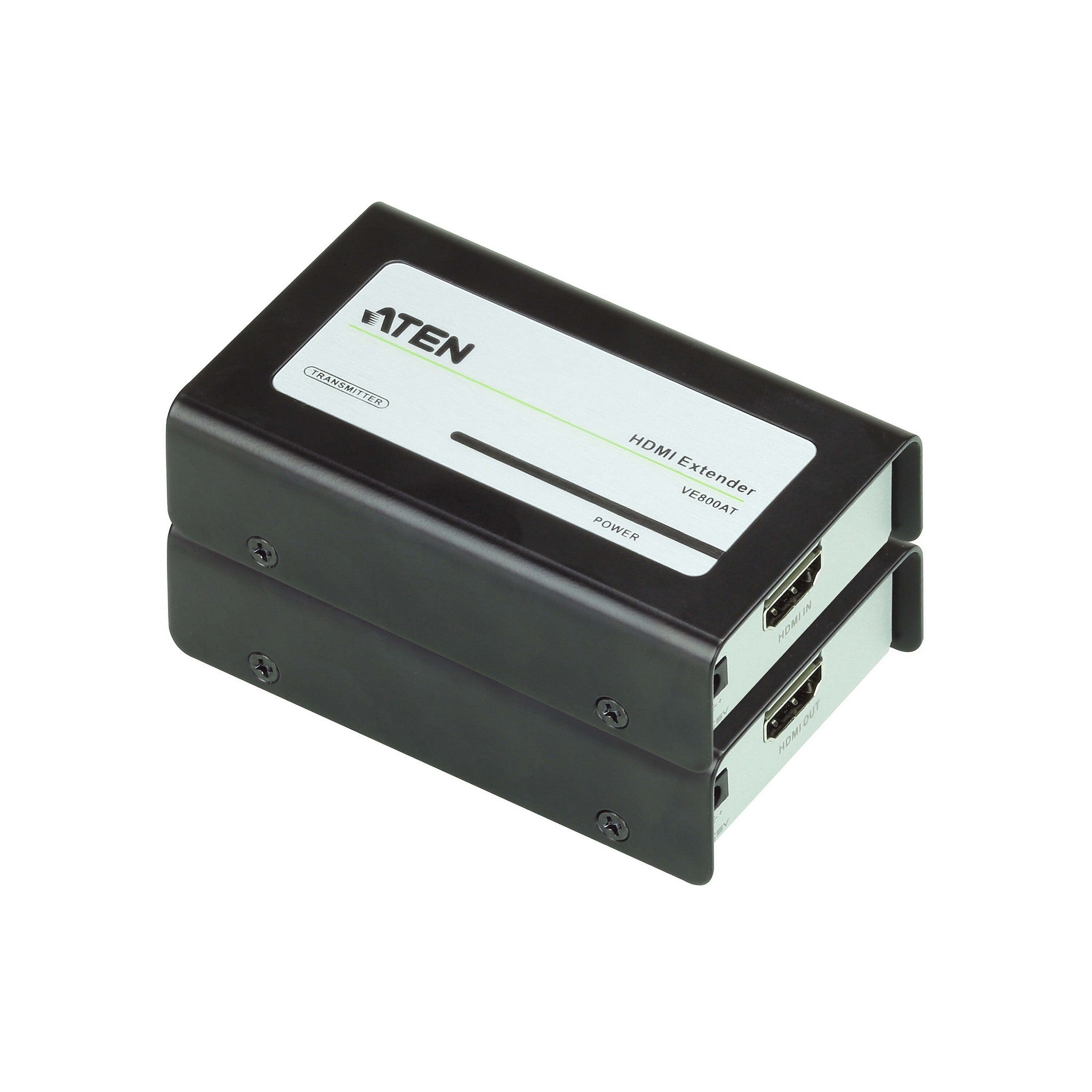

The ATEN VE800A is an outstanding Cat5e HDMI extender that can stretch your HDMI display up to 60 meters away from the HDMI source using just one Cat5e cable. It utilizes new technology to transmit A/V signals over a single Cat5e cable. You can use the display's EDID by simply connecting another Cat5e cable to the DDC port. This extender supports amazing HDMI features like 3D and Deep Color, offering you a perfect viewing experience. Key features include extending the distance between the HDMI source and display, using a Cat5e cable for connection, ATEN EDID technology for single - cable transmission, reaching 1080p at 130 ft (40 m) and 1080i (HDTV) at 196 ft (60 m), superior video quality up to 1920 x 1200 and 1080p, compatibility with HDMI (3D, Deep Color) and HDCP, support for Dolby True HD and DTS HD Master Audio, an 8 - segment equalization adjustment switch for optimal display quality, and DDC compatibility. Technical specs: The VE800AT has a 1 x DC Jack for power, no EQ Switch, orange power indicator, video resolution of 1920x1200, 1W power consumption, operating temperature from 0 - 50 degrees C, storage temperature from - 20 - 60 degrees C, 0 - 80% RH non - condensing humidity, a metal housing, weighs 0.4 lb, and has dimensions of 3.5 x 2.2 x 0.9 in. The VE800AR has a 1 x DC Jack for power, a 1 x Knob EQ Switch, orange power and green online indicators, same video resolution, 0.75W power consumption, and similar temperature, humidity, housing, weight, and dimensions as the VE800AT.

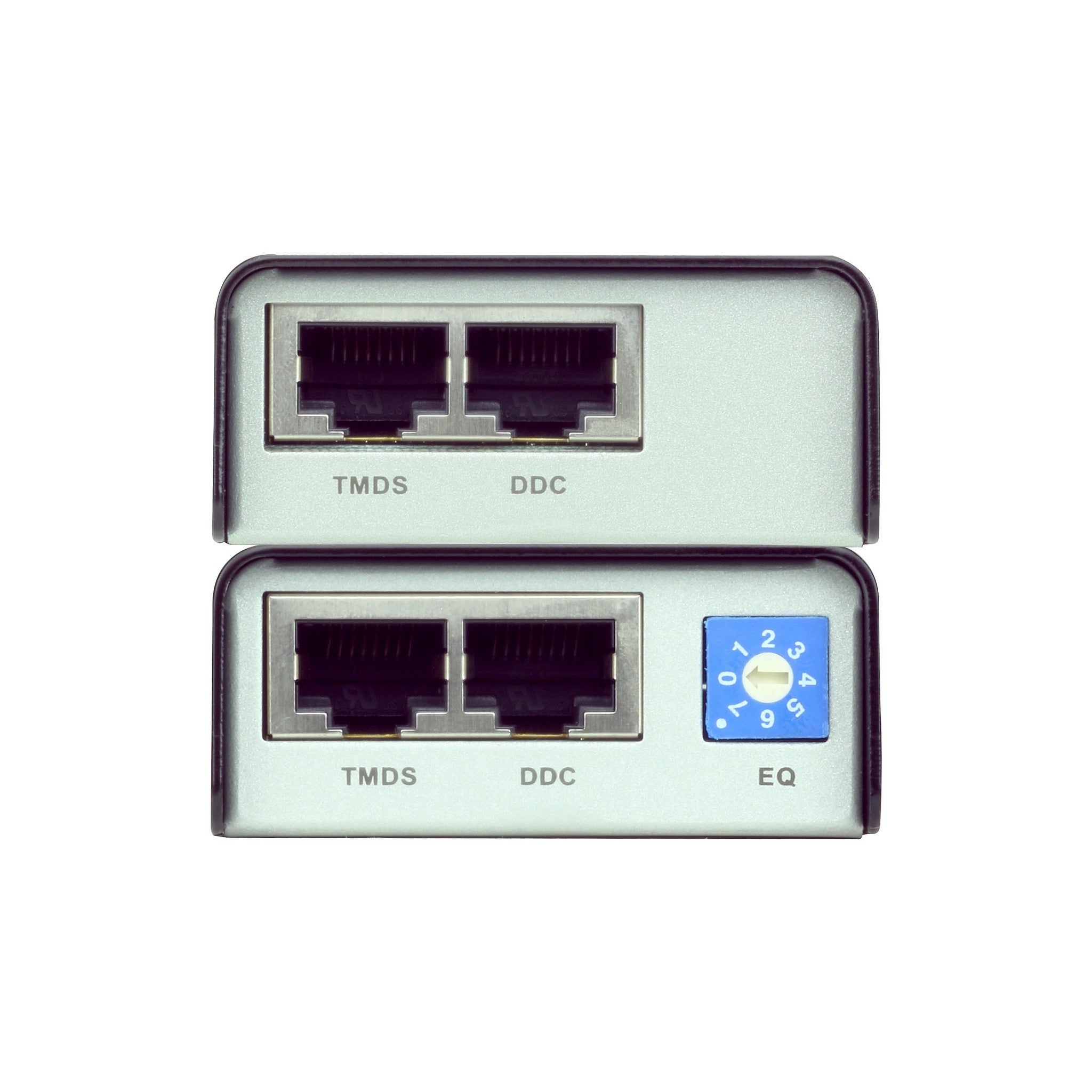

Using the ATEN VE800A is a breeze. First, connect one end of the Cat5e cable to the local unit and the other end to the remote unit. Then, connect your HDMI source to the local unit and the HDMI display to the remote unit. If you want to use the display's EDID, connect another Cat5e cable to the DDC port. When it comes to the EQ switch on the VE800AR, you can adjust it to get the best display quality. As for the power, make sure to use the correct DC Jack for each unit. When using the product, keep it in an environment with a temperature between 0 - 50 degrees C and humidity from 0 - 80% RH non - condensing. For storage, a temperature range of - 20 - 60 degrees C is appropriate. To maintain the product, keep it clean and dry. Wipe it with a soft, dry cloth if it gets dirty. Avoid exposing it to water or other liquids, and don't subject it to strong impacts. If you encounter any problems, check the connections first and make sure all cables are properly plugged in.
