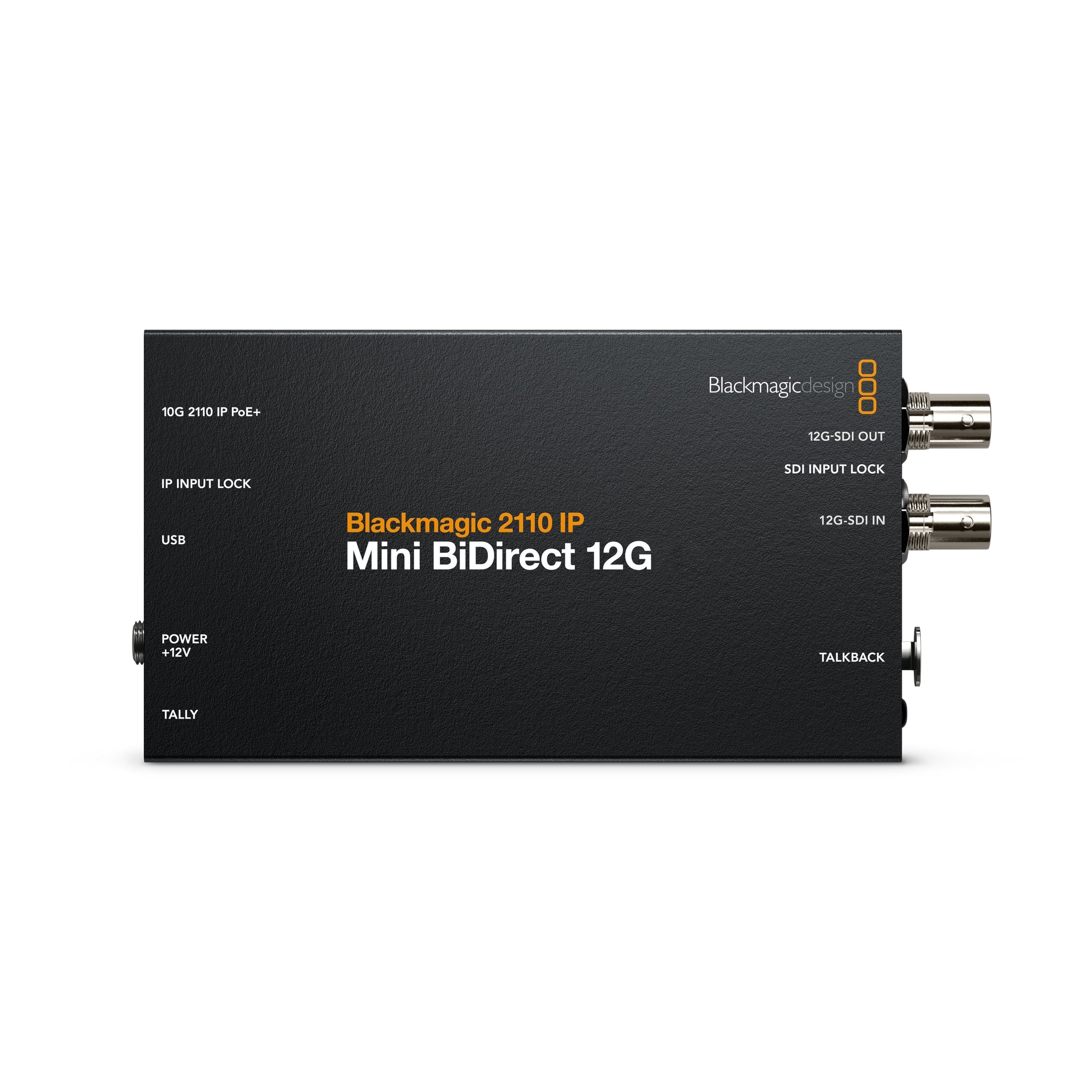

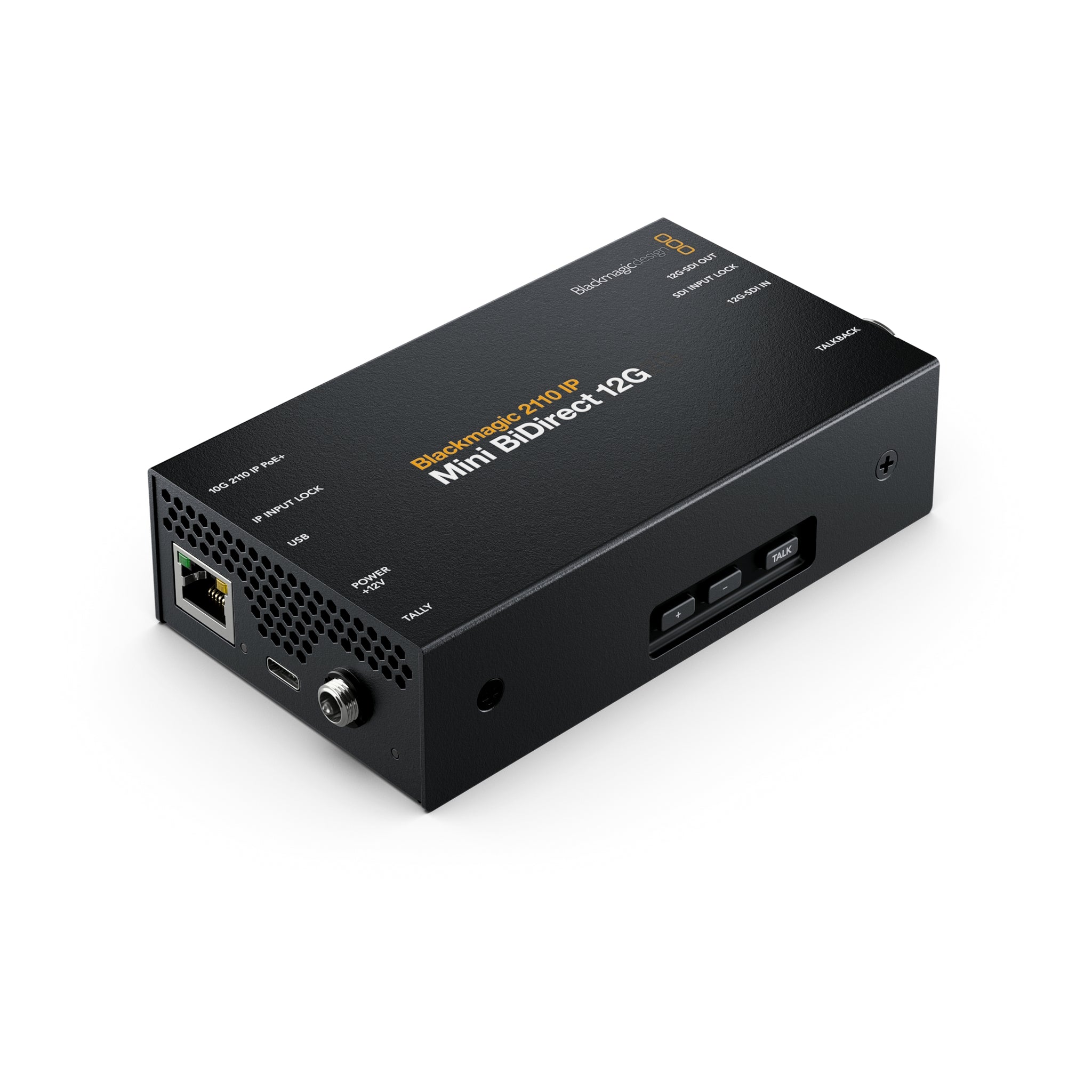

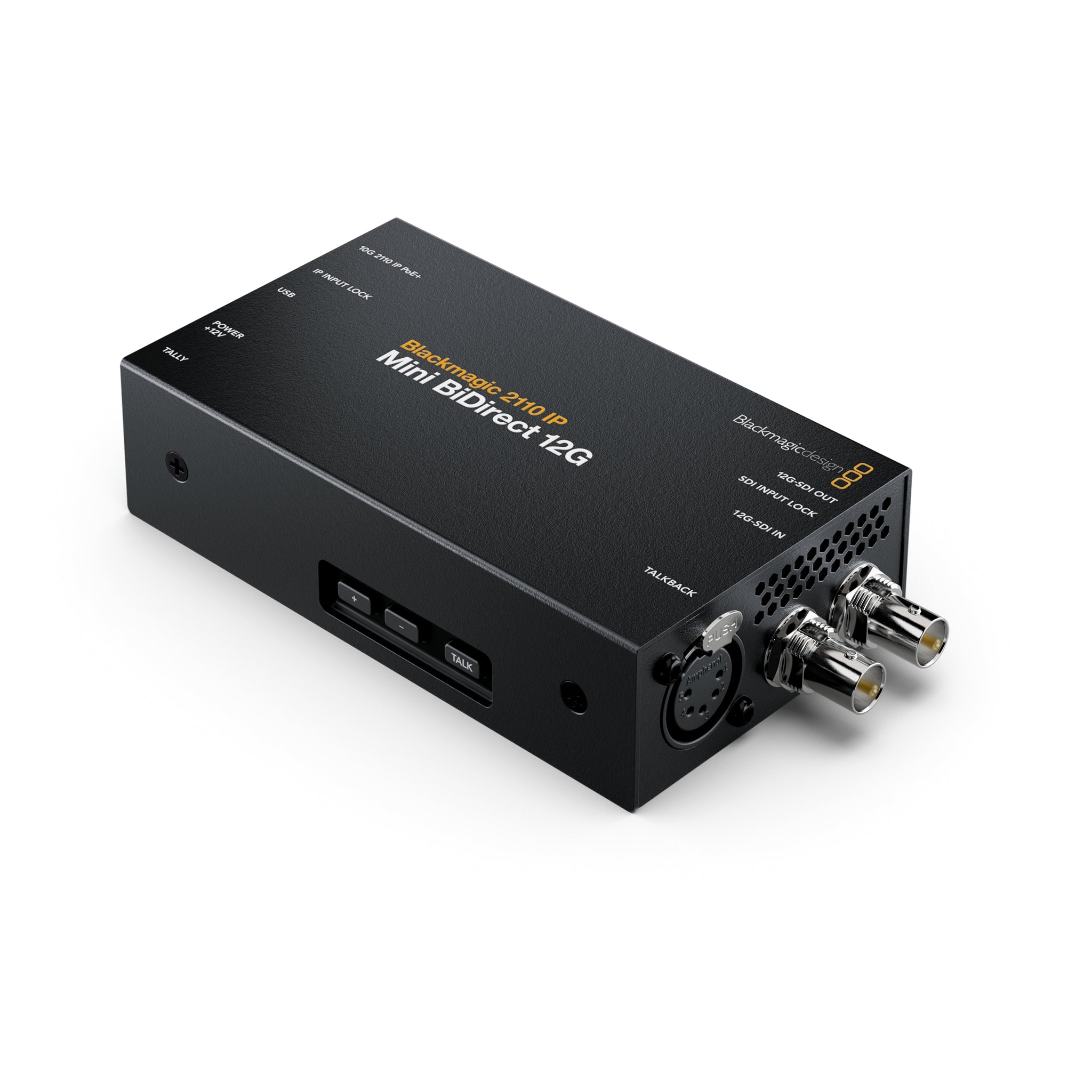

The Blackmagic Design 2110 IP Mini BiDirect 12G Converter is a game - changer in the broadcast industry. It enables seamless conversion from traditional SDI connections of broadcast cameras to advanced SMPTE - 2110 IP video systems. This versatile converter supports a wide range of video standards, from SD to Ultra HD up to 2160p60, ensuring it stays relevant in future - proof setups. With its SDI program return feature and built - in 5 - pin XLR talkback headset connection, it offers professional - grade functionality for efficient video production. The talkback volume control and press - to - talk button make communication among the production crew a breeze. It has flexible power and connectivity options, including a 10G Ethernet port or an included DC power supply, adapting to various setups. Whether for high - def live broadcasts or complex Ultra HD productions, this converter is the top choice for high - quality video conversion. It's reliable and robust, built to handle challenging production environments. Its multi - rate support with auto - detection simplifies setup and reduces downtime, making it a must - have for upgrading to the latest IP video standards.
Using the Blackmagic Design 2110 IP Mini BiDirect 12G Converter is easy. First, connect your broadcast camera with an SDI connection to the converter's SDI input. Then, you can choose to connect it to an SMPTE - 2110 IP video system using the 10G Ethernet port. You can also power it with the included DC power supply or through a PoE++ power supply via the RJ45 Ethernet connector. For communication, connect a 5 - pin XLR talkback headset to the appropriate ports and use the talkback volume control and press - to - talk button. When setting up, make sure the operating temperature is between 5 and 40 degrees Celsius (41 and 104 degrees Fahrenheit). Don't expose it to extreme humidity or temperatures outside the specified storage range of - 20 to 45 degrees Celsius (- 4 to 113 degrees Fahrenheit). For maintenance, keep the converter clean and free from dust. Periodically check the connections to ensure they are secure. If you need to update the firmware, use the USB - C 3.1 Gen 1 ports for configuration and updates, following the instructions provided by Blackmagic Design.
