Product Description

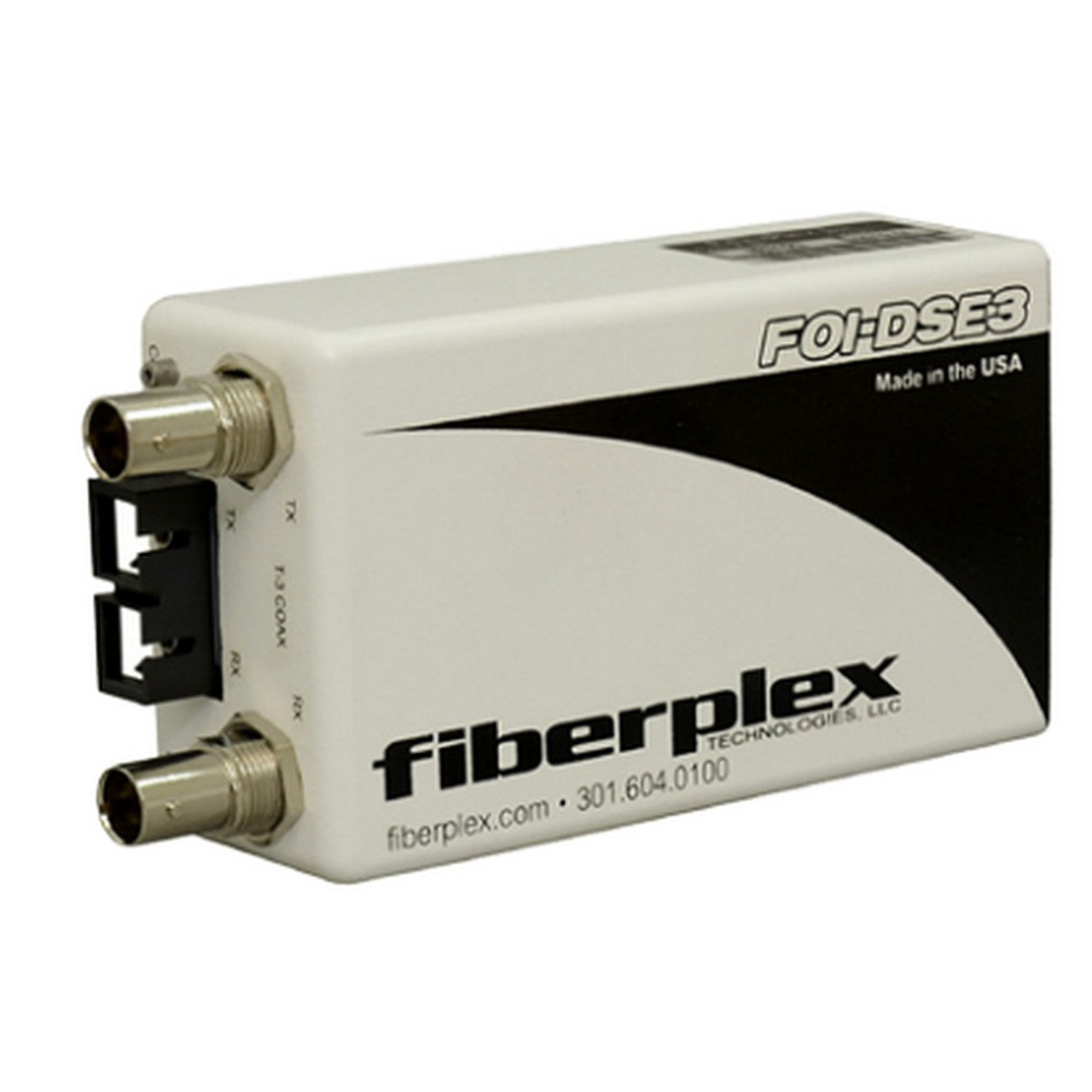

The Fiberplex FOI - DSE3 - S - FC is a top - notch fiber optic isolator designed for E3 communications. It offers complete electrical isolation, making it perfect for areas with high electrical noise or in and out of RF shielded enclosures. Unlike traditional copper wiring, the fiber optic cable used in this isolator is immune to interference from impulse noise, crosstalk, and EMI. It also enhances communication privacy as it doesn't radiate any emissions. Moreover, it provides much longer transmission distances. While traditional E3 coax cabling is limited to 1100ft (335m), the multimode optics on this unit can extend the distance to 2km, and singlemode optics can reach up to 20km. Key features include a data rate of 34.368 Mbps, compliance with ITU - T G.703, ITU - T G.823, and ITU - T G.775 for loss of signal. It's suitable for applications like SONET Add/Drop Multiplexers (ADMs), PDH Equipment, ATM WAN access routers and switches, and meets K41 protection specifications for E3 systems. It comes with singlemode FC optics. Technical specs: Power requires a voltage range from 7V to 12V (typical 9V) with a supply current of 300mA. Storage temperature is from - 40 to 85 °C, and operating temperature is 0 to 50 °C. The data rate is 34.368 Mbps, line encoding is AMI/HDB3, the interface connector is BNC. For singlemode, it has a size of 9 / 125 μm, max distance of 20 km, wavelength of 1300 nm, output power of - 17 dBm, receiver sensitivity of - 35 dBm, and a loss budget of 18 dB.
Using the Fiberplex FOI - DSE3 - S - FC isolator is straightforward. First, make sure the power supply voltage is within the 7V - 12V range. Connect the isolator to your E3 communication device using the BNC interface connector. You can use it in areas with high electrical noise or inside RF shielded enclosures. When it comes to the fiber optic cable, take care not to bend it too sharply as this can affect the signal. For long - distance transmission, choose the appropriate singlemode or multimode optics according to your needs. Keep the isolator in an environment where the temperature is between 0 - 50 °C during operation and - 40 - 85 °C for storage. Regularly check the power supply and the connections to ensure stable performance. If you encounter any issues, refer to the technical specifications or contact our support team.
