Freakshow MSX2-O 4K/12G Reclocking DA

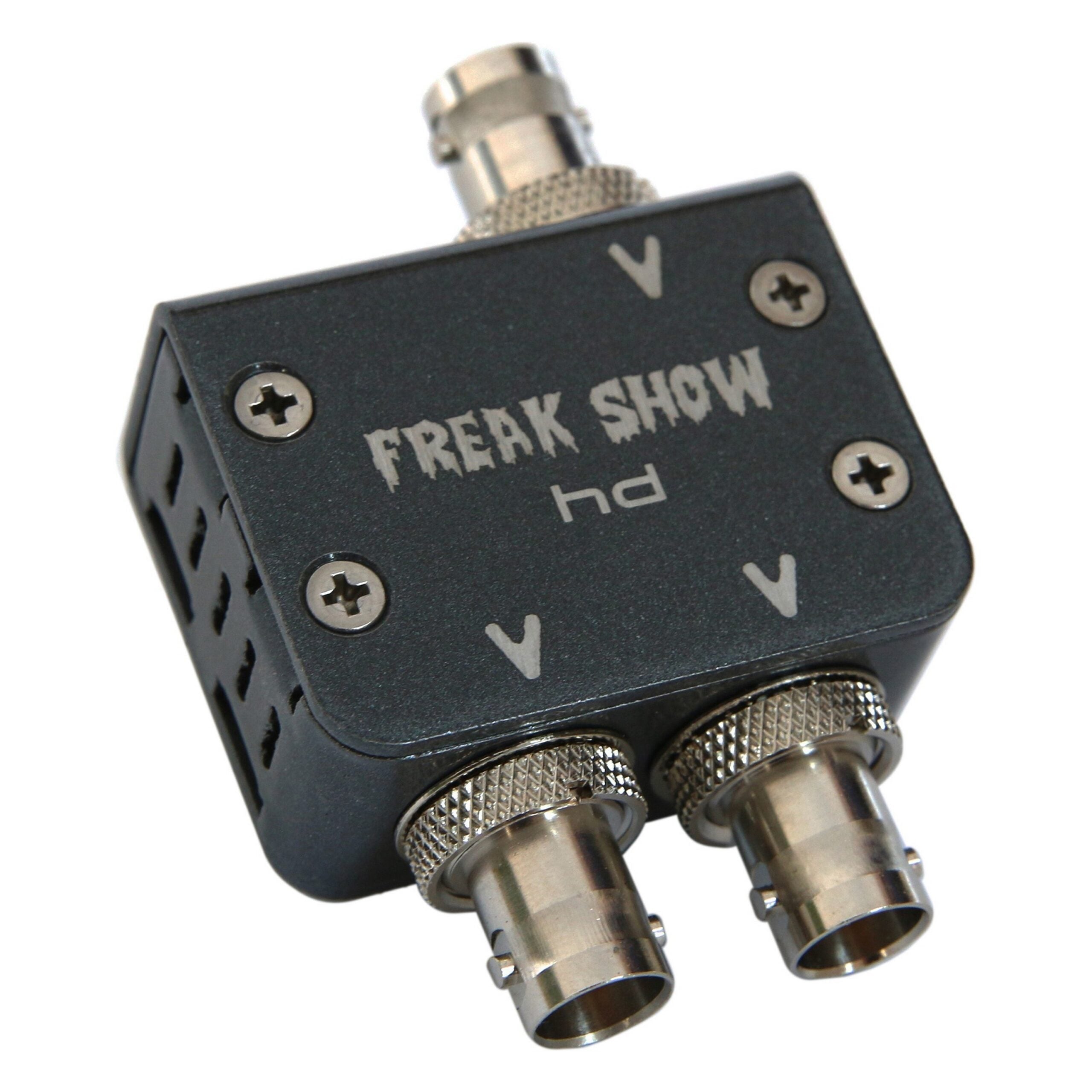

Freakshow, a leader in 4K/12G distribution solutions, presents the Micro Split MSX2-O, the world's most compact 4K/12G reclocking distribution amplifier. It comes in two series: the O-series with a standard FREAKSHOW connector and the L-series with a locking Lemo connector. This product uses the latest reclocking and cable EQ technology to extend cable runs up to 700 feet. Its 12G/HD/SD-SDI flexibility is future-proof and outperforms previous generations. Technical specifications include support for 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, and 270Mb-SDI formats, meeting or exceeding SMPTE standards. It has auto-selectable SDI inputs and proper outputs for each device, along with cable re-clocking and equalization. It operates at 5 - 36v.

Using the Freakshow Micro Split MSX2-O is quite straightforward. First, connect your input source to the 1x12G/ 6G/ 3G/ 1.5G/ 270Mb auto - selectable SDI input via the BNC connector. Then, connect your output devices to the appropriate outputs. The device will automatically detect the input format and provide the correct output. When it comes to cable selection, keep in mind the cable re - clocking and equalization distances. For example, at 12G, you can use up to 75 meters of Belden 1694A cable. As for maintenance, keep the device in a clean and dry environment. Avoid exposing it to extreme temperatures or humidity. If you notice any issues with the signal quality, check the cable connections first. This device operates at 5 - 36v, so make sure to use a power supply within this voltage range.
