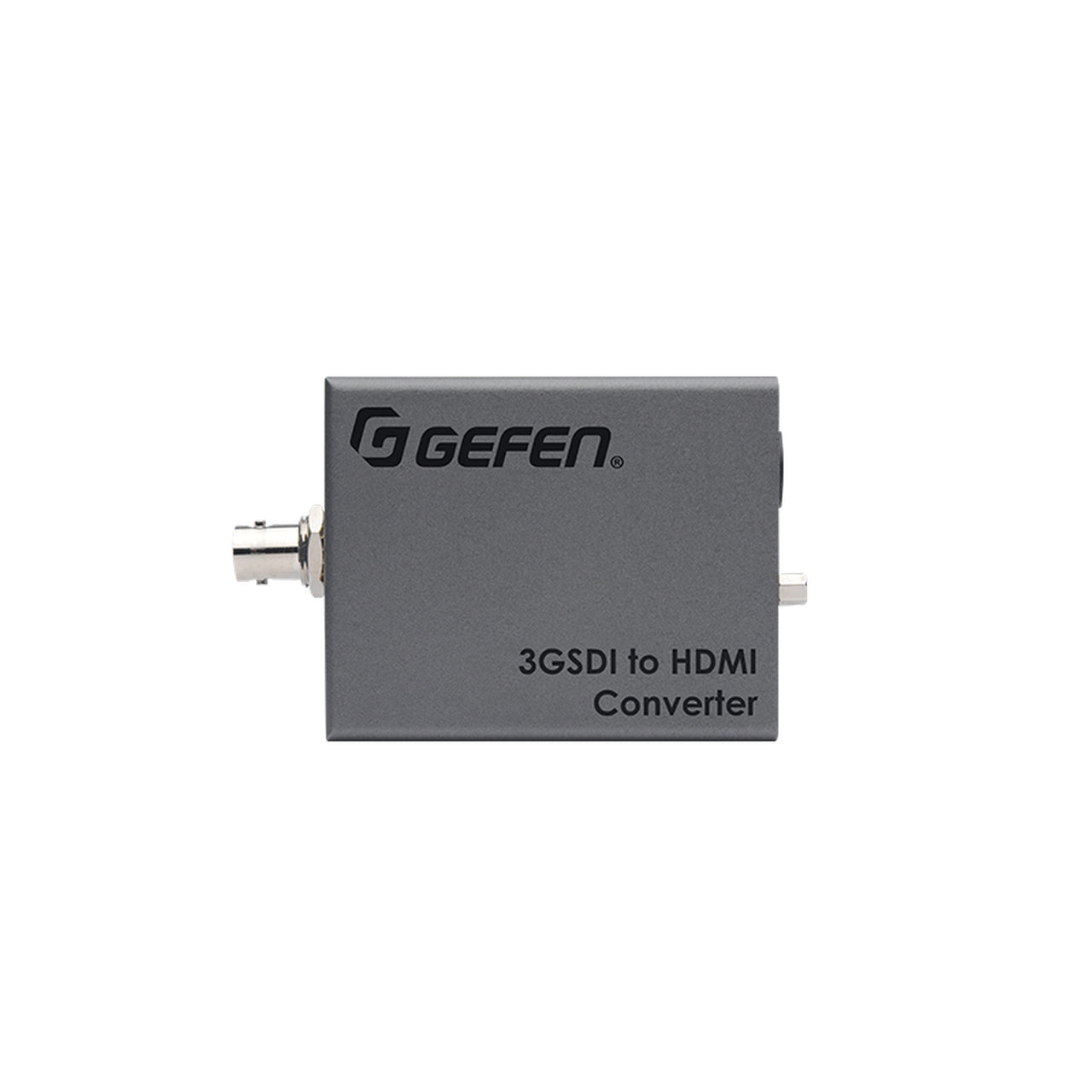

Gefen EXT-3G-HD-C 3G-SDI to HDMI Converter

The Gefen EXT-3G-HD-C is a top - notch converter that seamlessly transforms audio and video from SDI to HDMI. It supports resolutions up to 1080p Full HD, including 3G - SDI, single - link HD - SDI, and can handle audio formats up to 8 channels of LPCM. This product works perfectly with the Gefen Syner - G software suite, a powerful set of tools for product discovery, configuration, management, monitoring, and upgrading. The EXT - 3G - HD - C has a compact and lightweight enclosure. You can easily hold it in place with double - sided Velcro tape. It also features an ISO standard 1/4 - 20 attachment provision and a detachable surface - mounting bracket. With a flexible power input that accepts a wide range of DC voltages and a locking power supply connector, it's great for both mobile A/V applications and high - performance fixed installations. Key features include converting SDI to HDMI, supporting input resolutions up to 1080p60 and output up to 1080p Full HD, offering HDMI or DVI output modes, and much more.

Using the Gefen EXT - 3G - HD - C is a breeze. First, connect your SDI source to the SDI BNC - type female video input connector. Then, link your HDMI - compatible device to the HDMI Type A 19 - pin female locking video output connector. For power, use the 3 - pin locking power supply connector and ensure the power supply is within the 6V to 24V DC operating range. You can configure the product via the DIP switches. If you need to update the firmware, use the Mini USB port with the Gefen Syner - G software. When using it, keep the operating temperature between 32 to 122 degrees F (0 to 50 degrees C) and the humidity between 5% to 90% RH, non - condensing. For storage, keep it in a place with a temperature between - 4 to 185 degrees F (- 20 to 85 degrees C) and humidity between 0% to 95% RH, non - condensing. To maintain the product, keep it clean and free from dust. Check the connectors regularly for any signs of damage.
