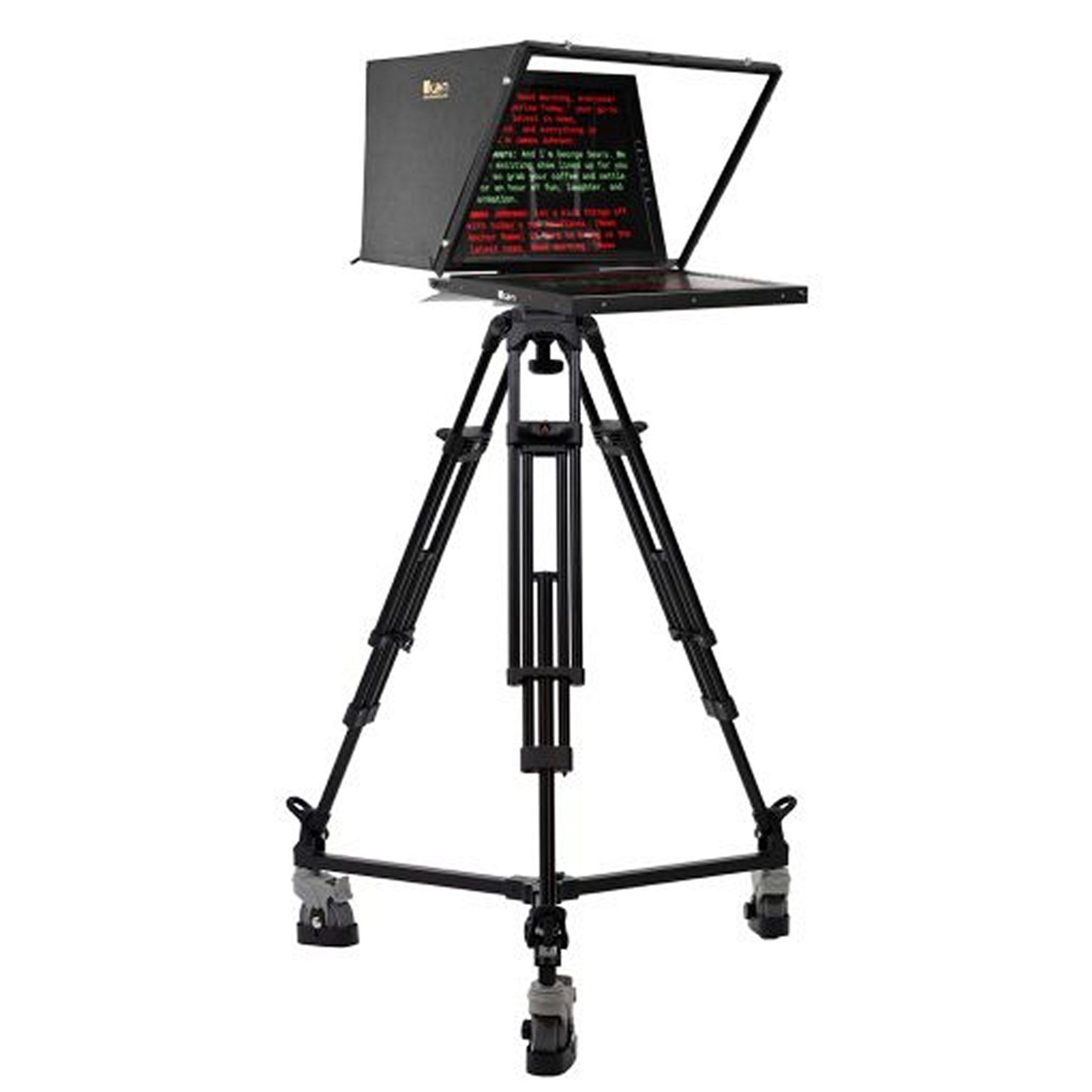

Discover the PT4900S-PTZ-V2-TRIPOD, the ultimate 19-inch SDI PTZ teleprompter kit tailored for studio pros, live event hosts, and virtual production wizards. This all-in-one package includes a sharp 19-inch SDI teleprompter, a tough tripod, and a handy dolly, perfect for upping your video production game. It can hold camera payloads up to 96.3 lbs, fitting various camera setups so you can convey your message clearly and confidently.
With multiple video inputs like HDMI, VGA, and 3G-SDI, it adapts to different production settings. The dolly comes with cable guards for safe and smooth movement. Plus, two carrying bags are included for easy transport, ideal for on-the-go professionals.
Whether you're shooting in a studio or broadcasting live, this teleprompter kit meets the needs of modern video production. Its strong build and smart design make it a must-have for anyone serious about high-quality video content.
**Key Features**
- 19-inch SDI teleprompter, tripod, and dolly included
- Can handle camera payloads up to 96.3 lbs
- Multiple video inputs: HDMI, VGA, 3G-SDI
- Dolly with cable guards for safe transport
- Two carrying bags for tripod and dolly
**Technical Specifications**
- Shipping Weight: 72 lbs
- Shipping Dimensions: Box 1: 28 x 27 x 17 in, Box 2: 37 x 19 x 9 in
- Package contents include teleprompter base, monitor, risers, hood, glass, warranty card, power supply, software download, quick release plate, flat base, tripod, spreader, rubber feet, and dolly
- Tripod: Anodized aluminum alloy, 100 mm bowl size, one-stage/three-section legs, rotary clamp locks, mid-level spreader, spiked/retractable feet, 132.3 lbs load capacity, 18.5 - 63.0 in height range, 29.1 in folded length, 11.2 lbs weight
- Dolly: 15 lbs net weight, 39.4 in footprint diameter, 4.92 in cable guard diameter, 6.7 in height, 19.7 in radius, 3.9 in wheel width, lockable wheels, aluminum legs, rubber wheels, steel screws, 132.3 lbs payload
- Quick Release Plate: 4.7 x 3.9 x 1 inches, 0.7 lbs net weight

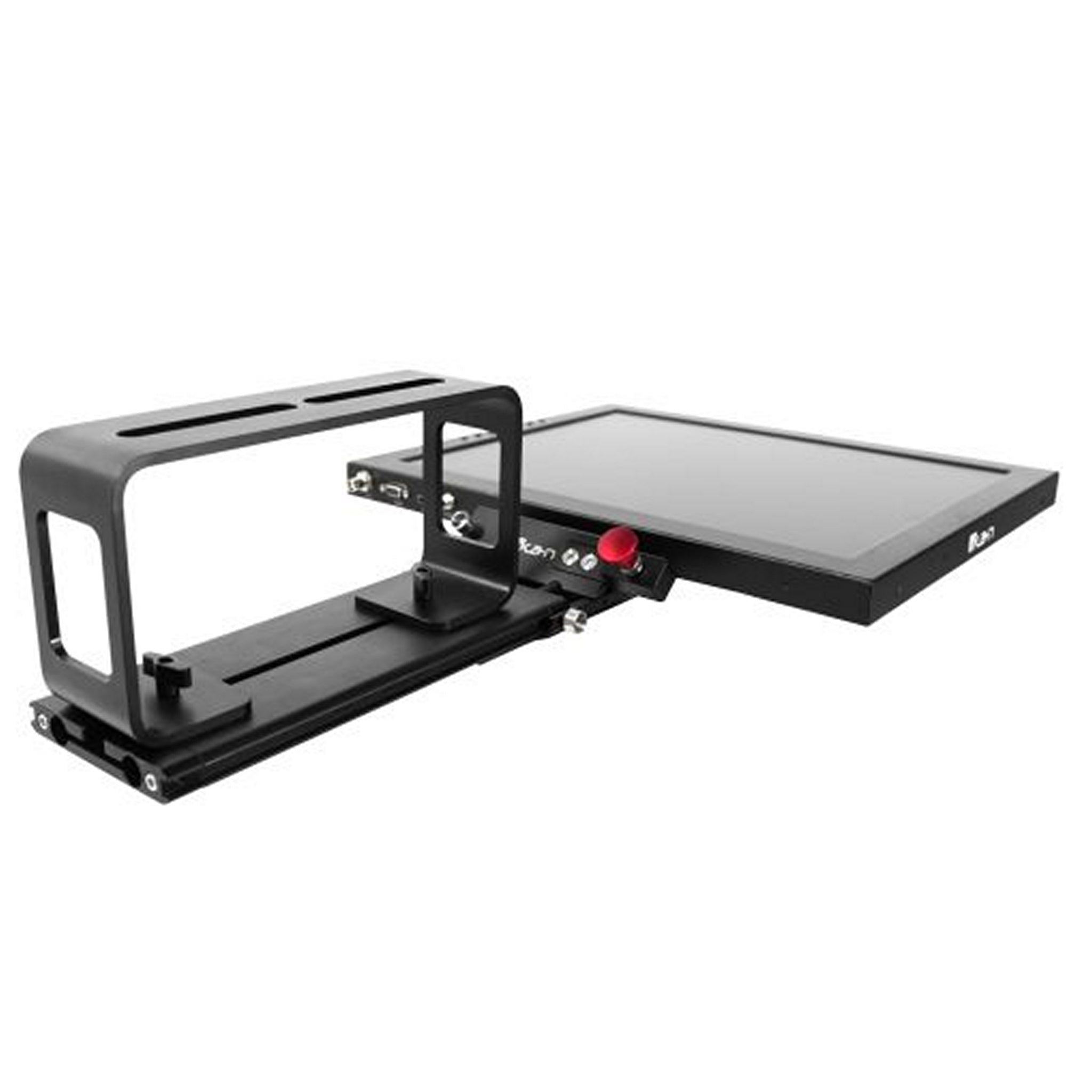

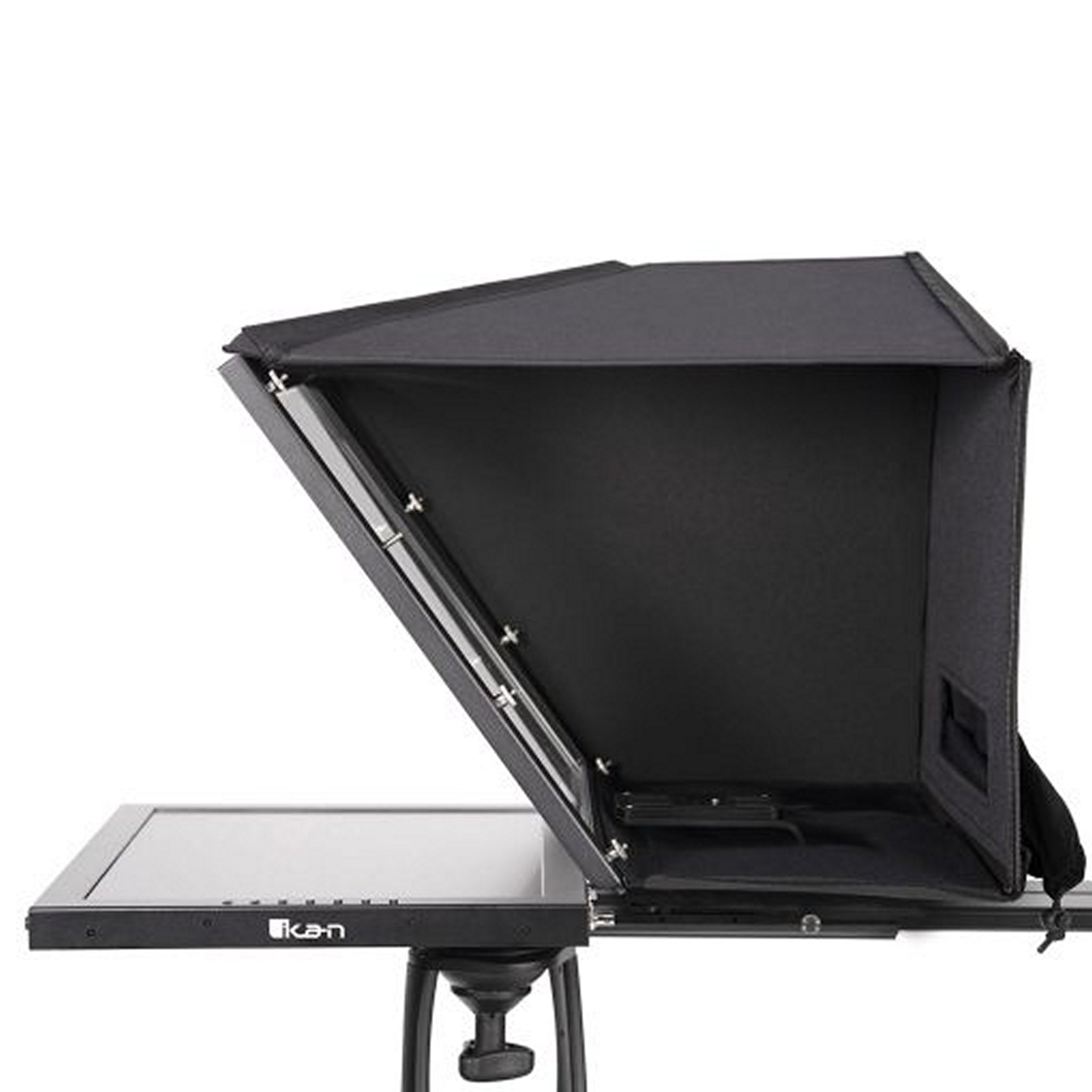

- Teleprompter Base System: Different riser plate heights, carbon fiber rods, 25 ft reading range, 65/35 beamsplitter ratio, rectangular glass beamsplitter, multiple tripod mounts, various weights, 16.1 in height, made in Taiwan
- 19-inch SDI Teleprompter Monitor: 4:3 aspect ratio, 1000 cd/m2 max brightness, 19 in diagonal screen, VESA 100mm mount, SDI/HDMI/VGA inputs, DC 12v/4A input voltage, 30W power consumption, 6 lbs product weight, 17 x 15 x 1 inches dimensions, 1280 x 1024 native resolution, 160°(H)/170°(V) viewing angle, aluminum chassis, horizontal and vertical image flip

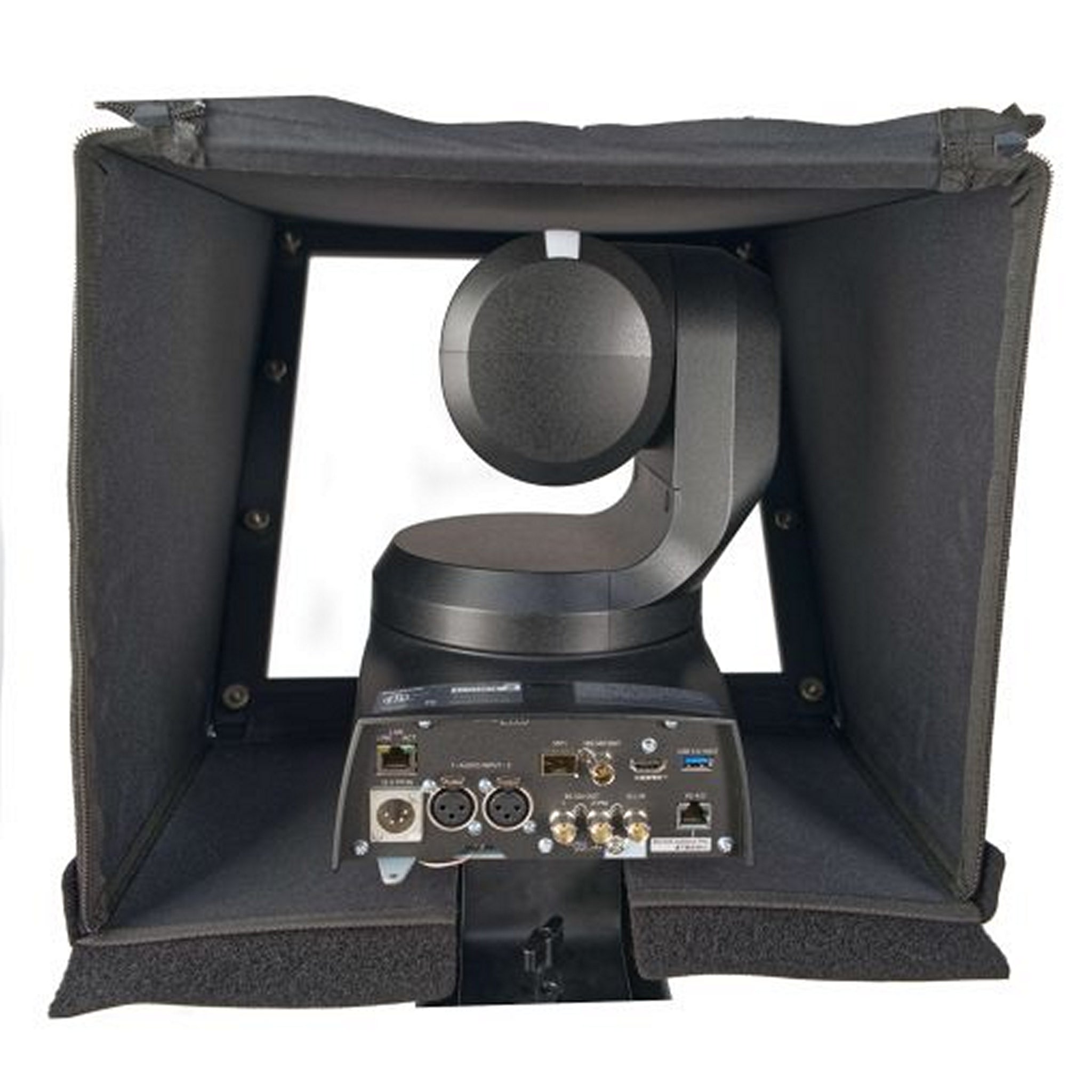

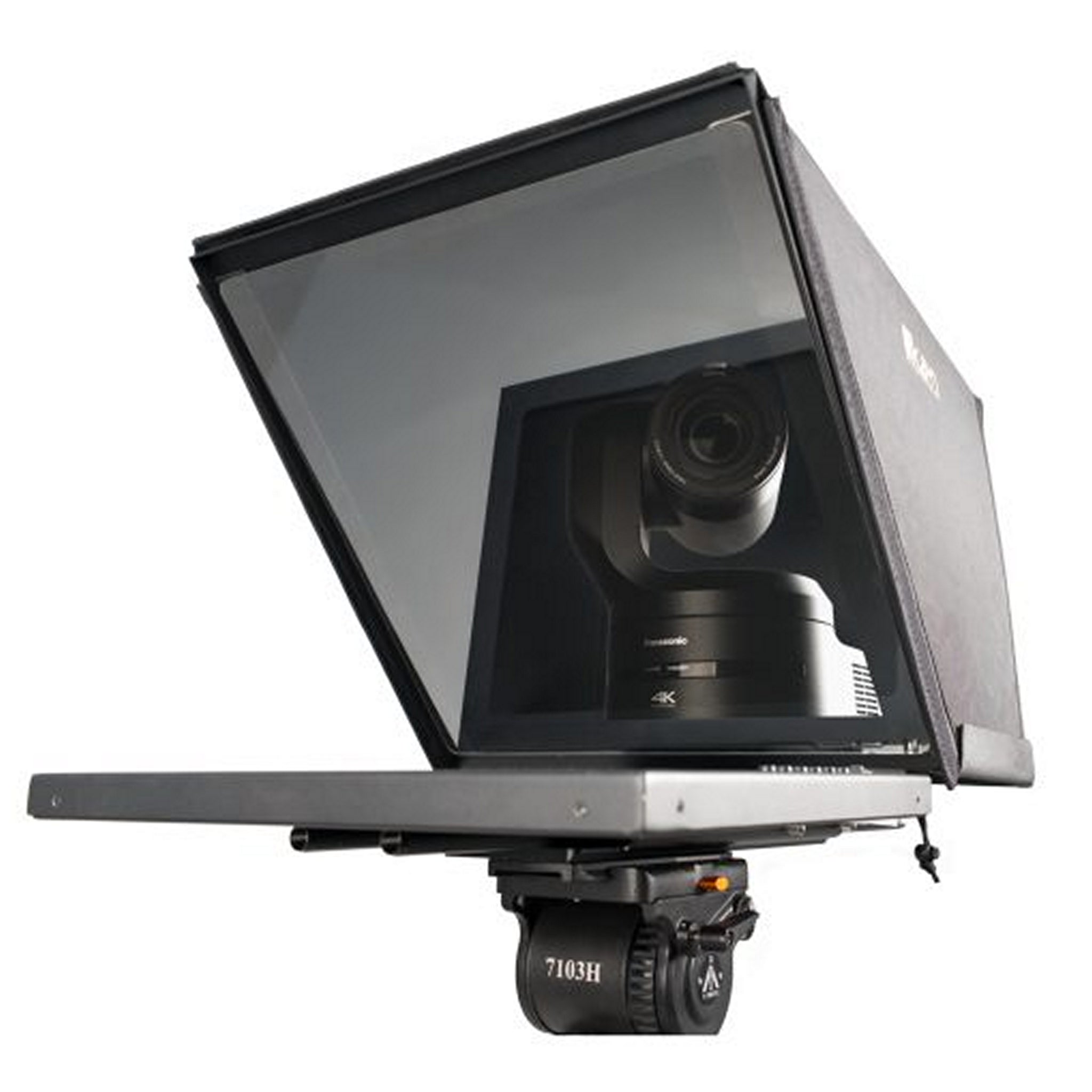

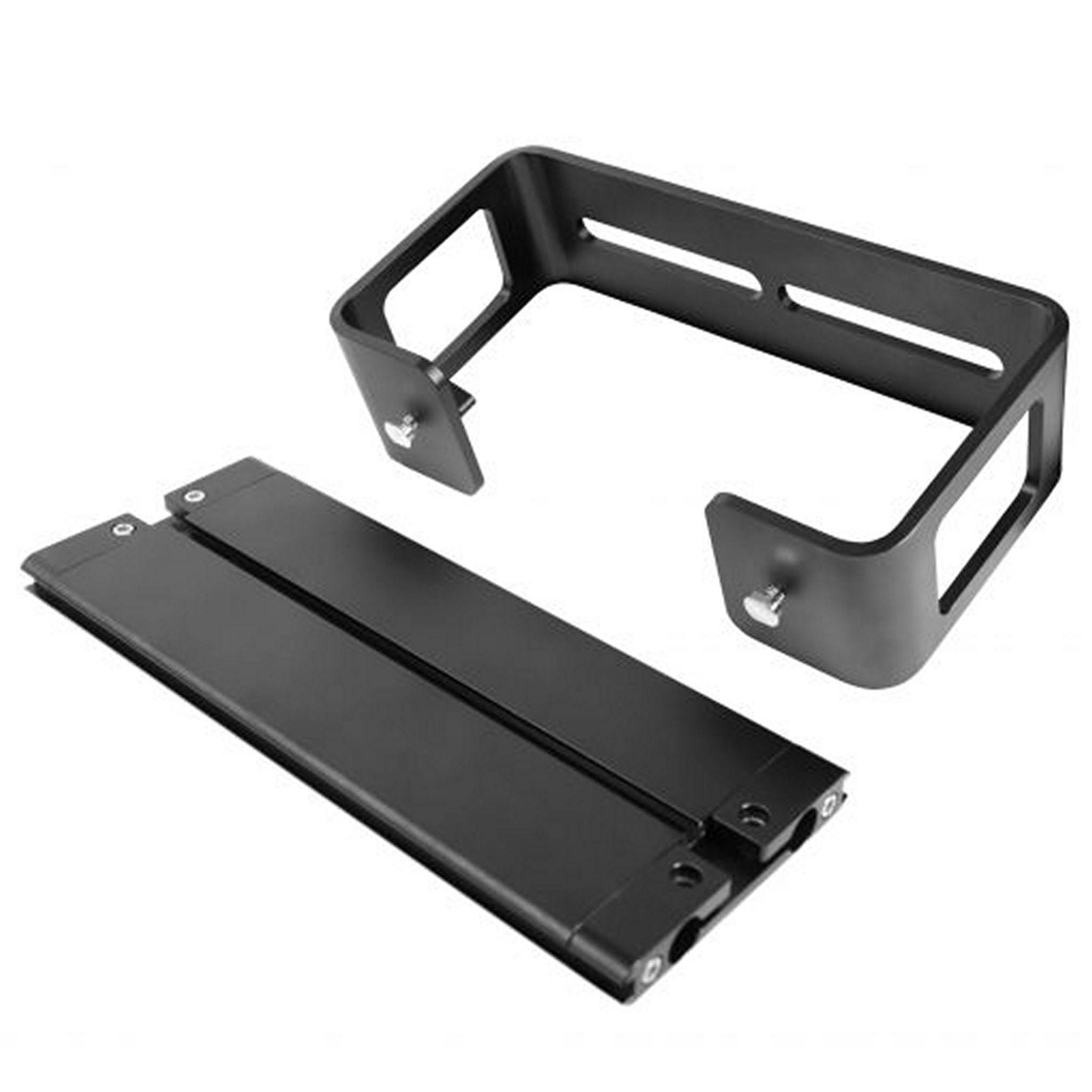

- PTZ Teleprompter Add-on Kit: 51 mm PTZ riser height, 0.58 lbs PTZ riser weight, specific dimensions for PTZ hood, polyester canvas hood material, aluminum PTZ riser material, 3.3 lbs PTZ hood weight, 3.88 lbs net weight for full kit
Using the PT4900S-PTZ-V2-TRIPOD is a breeze. First, set up the tripod by extending the legs and locking them in place using the rotary clamps. Adjust the height to your preference, making sure it's stable. Next, attach the teleprompter base to the tripod using the appropriate mounts. Then, connect the 19-inch SDI teleprompter monitor to the base and plug in the power supply.
When connecting your camera, choose the right video input (HDMI, VGA, or 3G-SDI) based on your camera's output. If you're using the dolly, attach it to the setup and make sure the cable guards are in place to prevent any cable damage during movement.
For transport, use the two carrying bags provided to pack the tripod and dolly. This will make it easier to move the equipment around.
Here are some important notes. Don't exceed the load capacity of the tripod or dolly. When moving the dolly, lock the wheels when you reach your desired position to keep the setup stable. Keep the teleprompter clean by using a soft, dry cloth to wipe the screen and glass.
For maintenance, check the tripod legs and locks regularly for any signs of wear or damage. Lubricate the moving parts of the dolly occasionally to ensure smooth operation. If you're not using the teleprompter for a long time, store it in a dry and cool place.
