Product Description

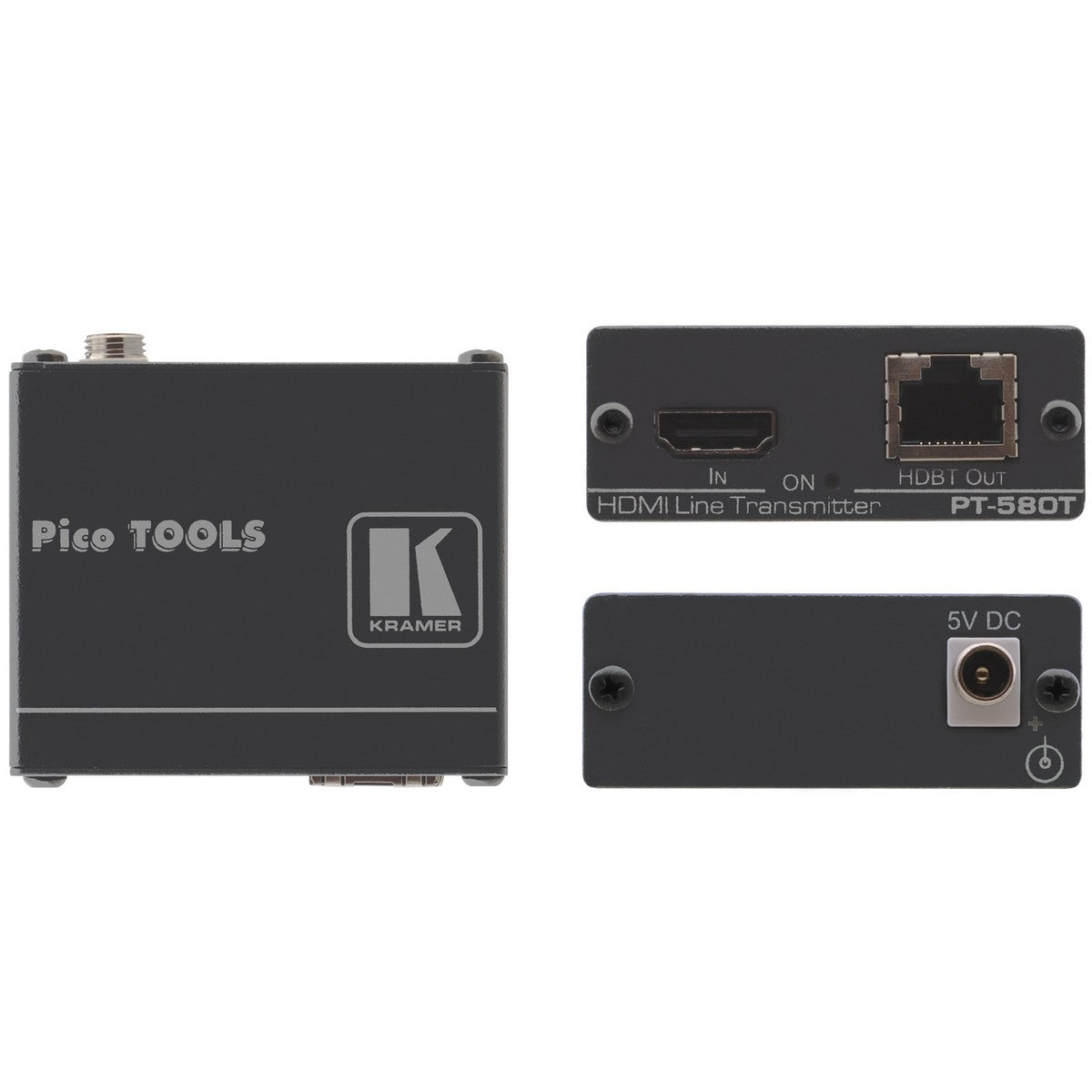

The Kramer PT - 580T is an outstanding HDBaseT twisted - pair transmitter designed for HDMI signals, capable of achieving 4K resolution. It takes an HDMI signal and converts it into a twisted - pair signal. Paired with an HDBaseT receiver like the TP - 580R or WP - 580R, which can convert the twisted - pair signal back to an HDMI signal, they form a powerful transmitter - receiver combination.
Key Features:
- Supports a max data rate of 10.2Gbps (3.4Gbps per graphic channel) for smooth 4K resolution.
- Compatible with HDTV and compliant with HDCP.
- Utilizes certified HDBaseT technology.
- Offers comprehensive HDMI support including deep color, x.v.Color, lip sync, uncompressed audio channels, Dolby TrueHD, DTS - HD, and CEC.
- Supports 2K x 4K and 3D pass - through.
- Features EDID pass - through to transfer EDID signals from source to display.
- Can reach up to 70m (230ft) when using BC - HDKat6a cables.
- Comes with a power LED indicator.
- Ultra - compact design; 4 units can be rack - mounted side - by - side in a 1U rack space with the optional RK - 4PT rack adapter.
- Ideal for various applications such as projection systems in conference rooms, boardrooms, auditoriums, hotels, churches, production studios, and rental/staging.
Technical Specifications:
- Input: 1 HDMI connector.
- Output: 1 RJ - 45 connector.
- Max data rate: 10.2Gbps (3.4Gbps per graphic channel).
- Complies with HDMI and HDCP standards.
- Operating temperature: 0°C to +40°C (32°F to 104°F).
- Storage temperature: - 40°C to +70°C (- 40°F to 158°F).
- Humidity: 10% to 90%, RHL non - condensing.
- Power consumption: 5V DC, 575mA.
- Dimensions: 6.2cm x 5.2cm x 2.4cm (2.4 x 2.1 x 1 inches) W, D, H.
- Weight: 0.14kg (0.3lbs).
- Included accessories: 5V DC power supply.
- Options: 19 - inch RK - 4PT rack adapter; Kramer BC - HDKat6a cable.
Using the Kramer PT - 580T is quite simple. First, connect an HDMI source, like a media player or a computer, to the HDMI input of the transmitter. Then, use a suitable cable, such as the Kramer BC - HDKat6a cable, to connect the RJ - 45 output of the transmitter to the corresponding input of an HDBaseT receiver. Make sure the power supply is connected properly. The power LED will light up when the unit is powered on.
When using the product, keep it in an environment with a temperature between 0°C and 40°C and humidity between 10% and 90% non - condensing. Avoid exposing it to extreme temperatures or high humidity, as this may affect its performance.
For maintenance, keep the unit clean by gently wiping it with a dry cloth. If there are any issues, check the connections first. If the problem persists, contact the manufacturer for further assistance. Also, when not in use, store it in a cool and dry place with a temperature between - 40°C and 70°C.
