Kramer VS-88HDCPxl 8x8 DVI HDCP Matrix Switcher

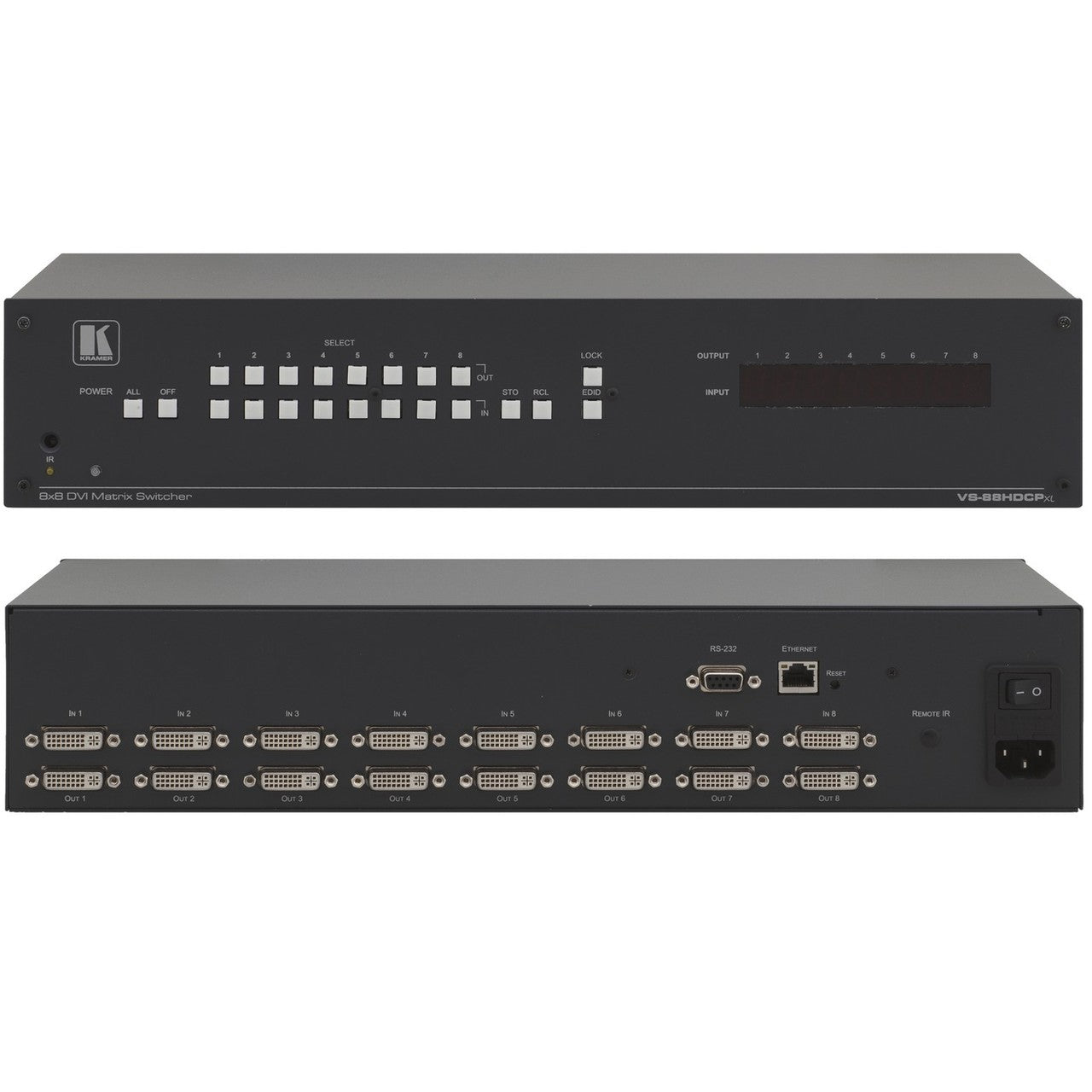

The Kramer VS - 88HDCPxl is an outstanding high - performance matrix switcher designed for DVI and HDMI signals using a DVI - D connector. It re - clocks and equalizes the signal, allowing you to route any input to any or all outputs at the same time. This switcher offers a maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and is fully compatible with HDCP and HDTV. It supports HDMI features like Deep Color, x.v.Color, 3D Pass - Through, and HDMI Compressed Audio Channels. The EDID Capture function can copy and store the EDID from a display device. Each output can be disconnected, and there's a front - panel control lockout. It has memory locations to store multiple switch presets for easy recall. With flexible control options including the front panel, IR remote, RS - 232 (with K - Router Windows - based software), and Ethernet (with Configuration Manager & Virtual Serial Port Manager), it's very user - friendly. It has a worldwide power supply (100 - 240V AC) and comes in a standard 19 - inch rack - mount size (1U) with rack ears. Ideal for conference room presentations, advertising, and rental and staging.

Using the Kramer VS - 88HDCPxl is quite straightforward. First, connect your HDMI devices to the 8 input connectors and your displays to the 8 output connectors. You can control the switcher using the front - panel buttons, the IR remote, RS - 232, or Ethernet. To set up a preset, use the memory location function to store your desired switch configurations. When using the switcher, make sure the power supply is within the 100 - 240V AC range. The operating temperature should be between 0°C and 40°C. Avoid exposing the device to extreme temperatures and humidity outside the specified range. For maintenance, keep the device clean and dust - free. If you encounter any issues, refer to the included software or contact the manufacturer.
