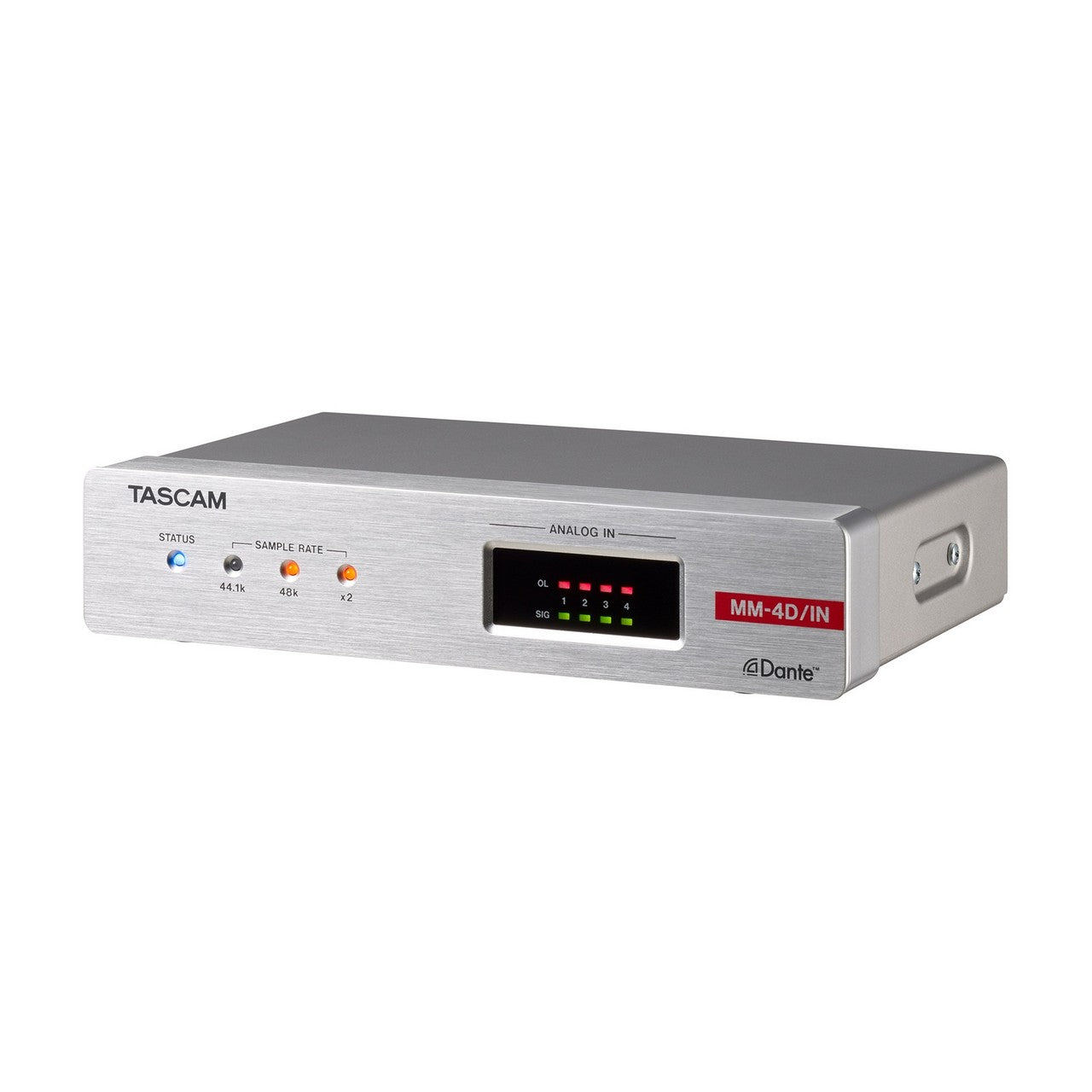

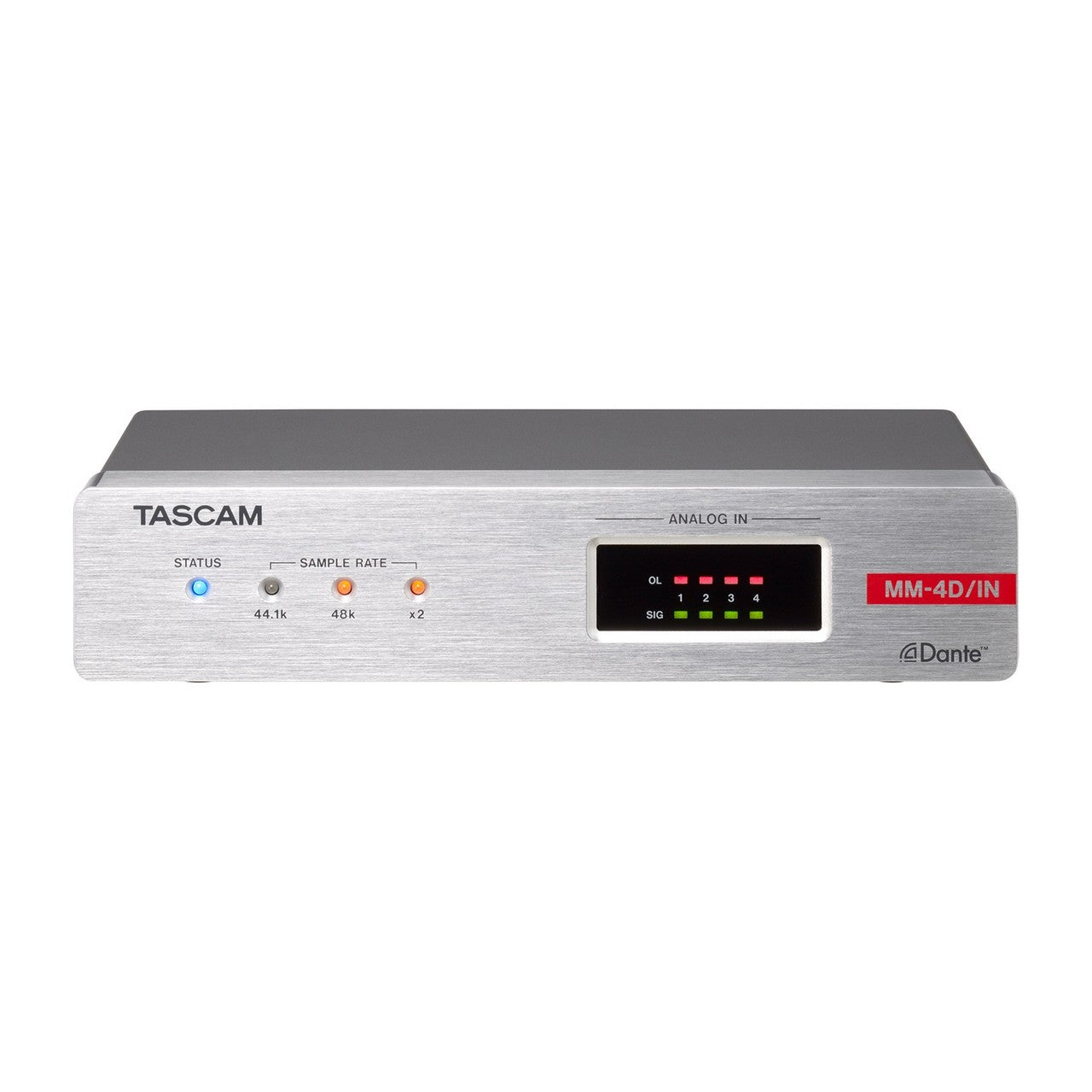

The Tascam MM-4D/IN-X is a top - notch and compact 4 - channel microphone/line input Dante converter crafted for audio professionals. It offers high - quality audio conversion and outstanding performance. Measuring just half the size of a standard 1U rack, it easily integrates into diverse Dante systems and serves as a smart analog output unit. The built - in DSP mixer provides small - scale systems with various input/output model features from the TASCAM Dante Compact Processor Series. With support for up to 96kHz/24bit resolution and XLR connectors for analog mic/line inputs, it ensures excellent sound quality and flexibility. This converter is perfect for spaces where room is limited but high - performance audio connectivity is a must. It works well with Dante Domain Manager and Dante AES67 mode, enabling seamless integration into large and complex audio networks. The onboard DSP functions and flexible scene preset options make it suitable for all sorts of audio situations, whether it's a live event or a recording studio. It also supports PoE, which simplifies installation by eliminating the need for extra power supplies. Moreover, its sturdy build and indicator lights make it easy to monitor status and operate. Key features include 4 - channel mic/line input with +48v phantom power, remote mic gain control, 4 Dante input/outputs, support for PoE, up to 24bit/96kHz audio resolution, a variety of DSP functions, support for Dante daisy chain, compatibility with Dante Domain Manager and Dante AES67 Mode, flexible scene preset function (up to 50 presets), a timer event function for future updates, remote control via Dante, half - rack mountable size, indicators for LAN/Dante connection and sample rate, signal indicators for line input signals, configurable reference level (via remote control only), and surface rack mountable angles for under - desk installation. Specifications cover formats, channels, input/output ratings, connectors, transmission protocol, Ethernet standard, cables, analog IN connectors, input levels, impedance, power, power consumption, dimensions, weight, and operating temperature range. The package includes the MM - 4D/IN - X converter, surface rack mountable angles, and a user manual.

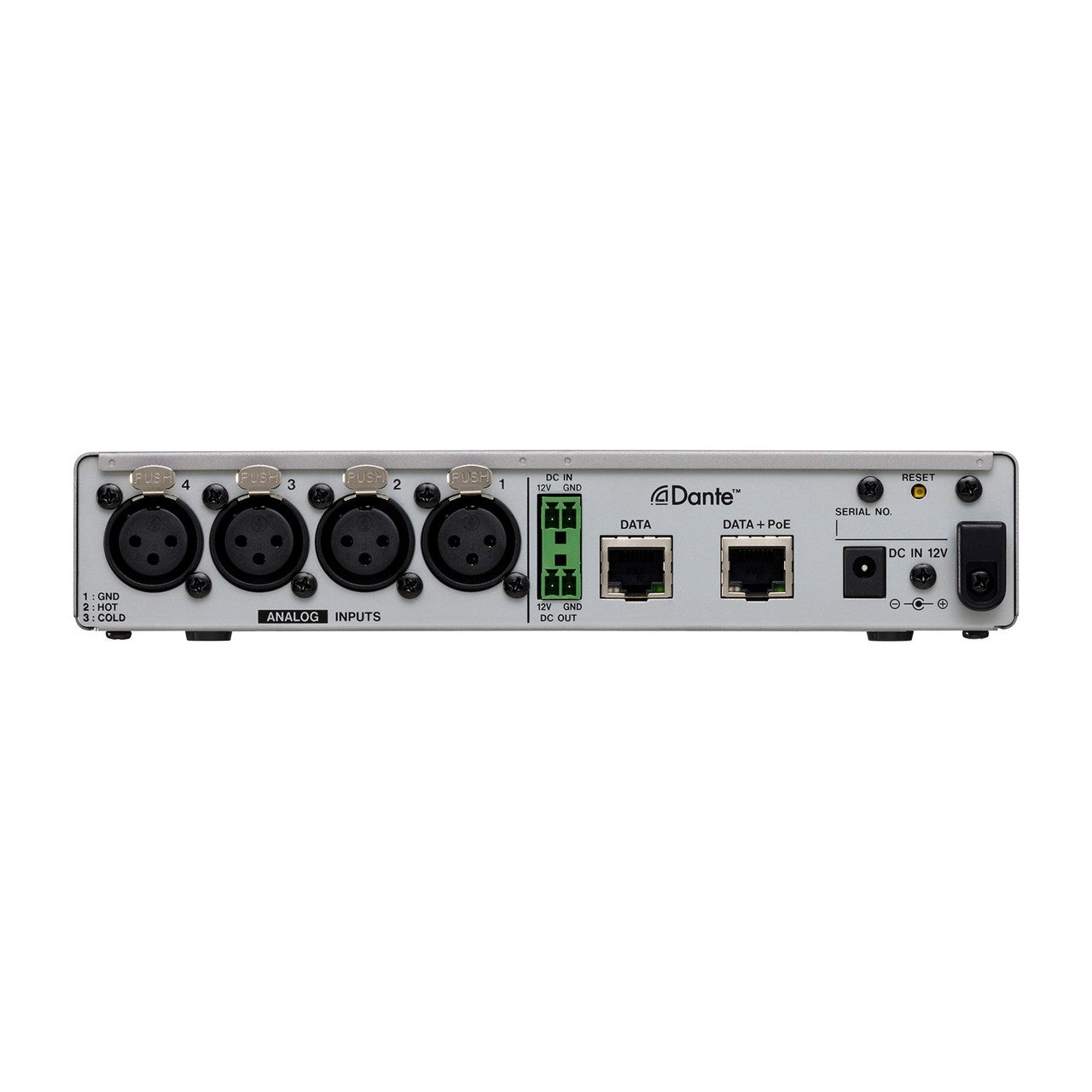

Using the Tascam MM - 4D/IN - X is easy. First, connect your analog microphones or line sources to the XLR connectors on the unit. Make sure to set the appropriate gain levels, and you can even control the mic gain remotely if needed. Connect the unit to your network using a category 5e or faster STP cable through the RJ - 45 connector. If you're using PoE, you don't need an additional power supply, but you can also use the TASCAM PS - P1220E AC adapter if you prefer. Once connected, the unit will be ready to integrate into your Dante system. You can use the onboard DSP functions to adjust the audio according to your needs. The scene preset function is really handy - you can save up to 50 different settings for different situations. For maintenance, keep the unit in a clean and dry environment. The operating temperature should be between 0°C and 40°C. Check the LAN/Dante connection and sample rate indicators regularly to make sure everything is working properly. Also, pay attention to the signal indicators to monitor the line input signals. If you need to change the reference level, you can do it via remote control. When installing, you can use the surface rack mountable angles for under - desk installation to save space.
