Product Description

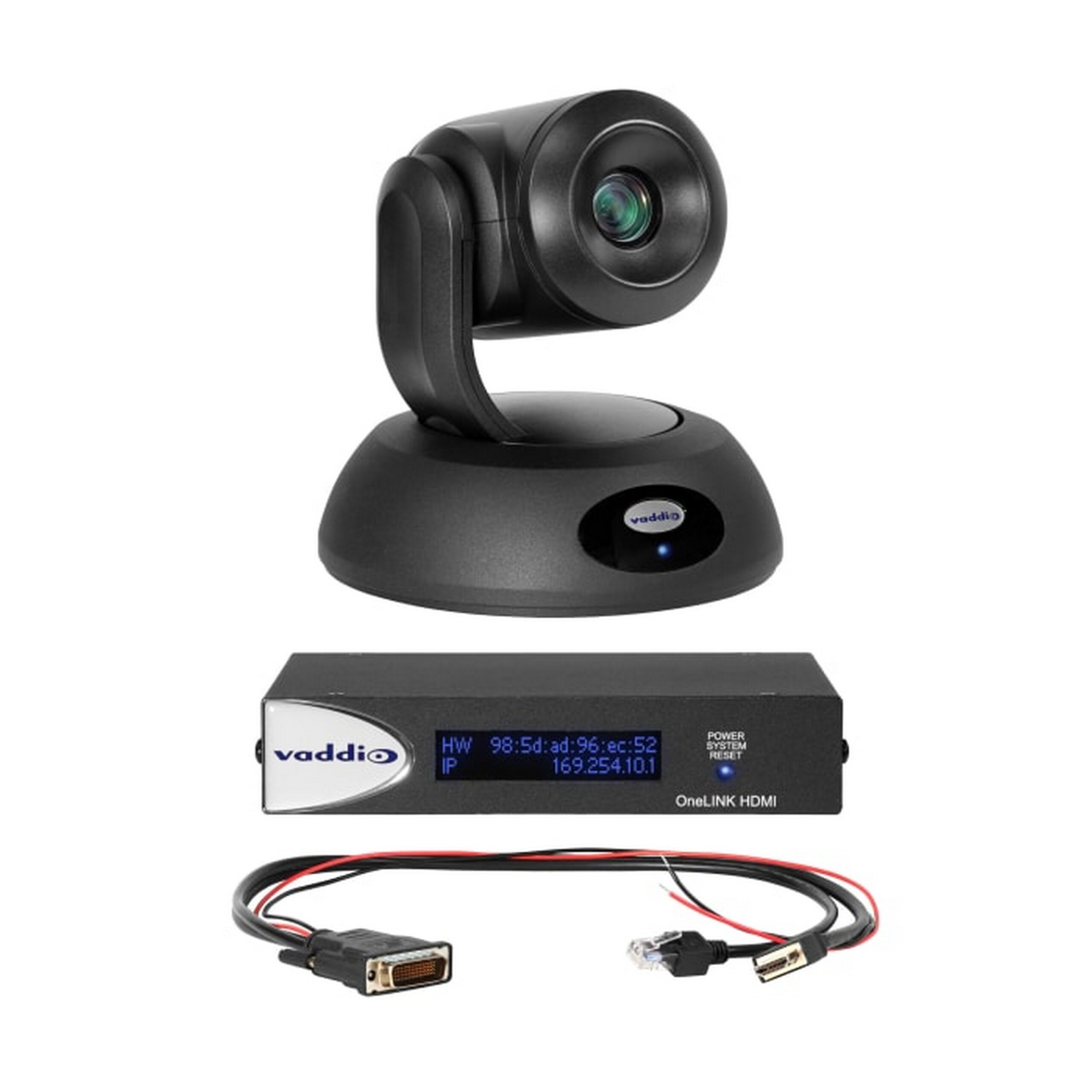

Introducing the Vaddio RoboSHOT 12E HDBT OneLINK HDMI System for Polycom Codecs, part of the RoboSHOT Elite Series - Vaddio's next - gen professional cameras. With a 1/2.5 - type Exmor R CMOS sensor, these cameras offer amazing high - definition video. The advanced image signal processing gives excellent light - gathering, great contrast, and sharp 1080p/60 video, even in low light. The enhanced wide dynamic range makes unevenly lit areas in the video more visible and detailed. You can enjoy IP streaming (RTSP or RTMP with H.264 compression) to share live events like church services, lectures, or meetings on platforms such as YouTube, Livestream, and Facebook. The web - based user interface lets you control the camera from anywhere in the world via an IP network. Just enter the camera's streaming URL into a standards - based media player to watch the stream. Ideal for remote management and IT control. The Elite Series PTZ cameras come with Vaddio's Tri - Synchronous Motion technology for ultra - smooth and natural camera movement. The RoboSHOT 12E is perfect for small to medium spaces like conference rooms, training rooms, and classrooms that need a wide view. It has simultaneous HDBaseT, HDMI, and IP (H.264) streaming. You can connect directly to HDBaseT - compatible devices or use Vaddio OneLINK receivers to simplify cabling and extend the installation distance. The package includes a RoboSHOT 12E HDBT camera (black or white), a thin - profile wall mount (black or white) with hardware and manual, a Vaddio IR Remote Commander, a OneLINK HDMI Interface, a 48V power supply with AC cord, a 2' (0.6m) fan - out cable for Polycom, a 3 - position phoenix - style connector, an EZCamera RS - 232 Control Adapter, an application note, and quick - start guides. Key features include 12x optical zoom, a 1/2.5 - type Exmor R CMOS sensor, a 70.2 - degree horizontal field of view, simultaneous HDbaseT, HDMI, and IP H.264 streaming, remote IP management, simple camera extension with HDBaseT technology, power, video, and control over a single Cat - 5e cable up to 230 ft. (70m) or a Cat - 6 cable up to 328 ft. (100m), and simultaneous HDMI and IP streaming outputs.
Using the Vaddio RoboSHOT 12E HDBT OneLINK HDMI System is a breeze. First, connect the camera to your Polycom codec using the provided 2' (0.6m) fan - out cable. Then, plug in the 48V power supply with the AC cord. You can choose to connect directly to HDBaseT - compatible devices or use the Vaddio OneLINK receivers to simplify cabling. To start streaming, use the web - based user interface on your browser to control the camera and set up the IP streaming. Enter the camera's streaming URL into a standards - based media player to watch the stream. When using in a room, make sure the illumination is at least 1.0 Lux (F1.6), but 100+ Lux is recommended for better results. The camera has a pan and tilt range (Pan: +/-160, Tilt: +90 to - 30) and speed (0.35/sec to 120/sec), which you can adjust according to your needs. For maintenance, keep the camera in an environment with a temperature between 32 to 104F (0 to 40C). Clean the lens regularly with a soft, dry cloth. The camera has a 2 - year warranty, so if you encounter any problems, reach out to the support team.
