Product Description

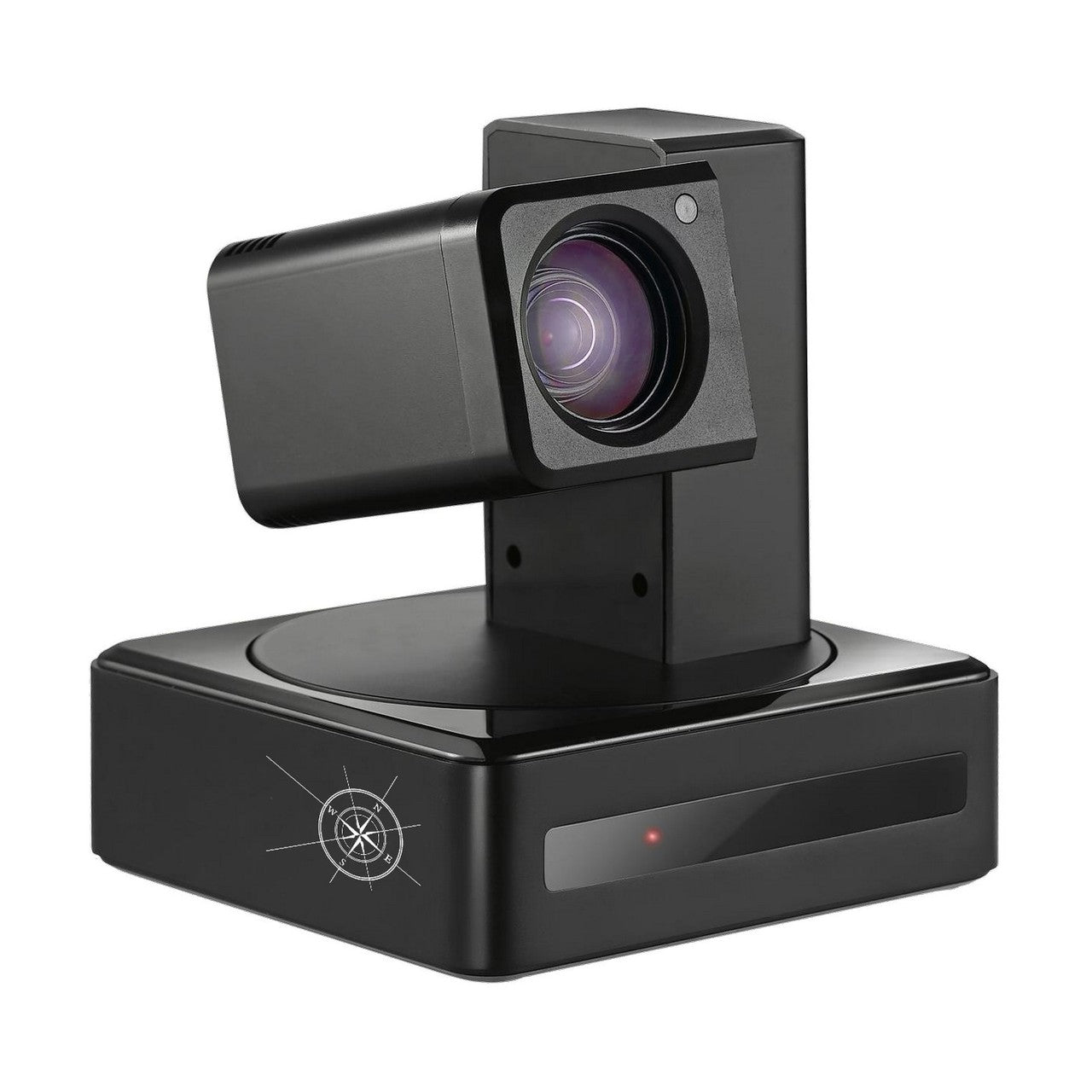

The VDO360 VPTZH - 02 USB PTZ HD Compass Camera is a top - notch device offering excellent performance. It supports MJPEG format with resolutions of 640×480, 1280×720, and 1920×1080 at 30fps. The USB2.0 output ensures easy connection. It's compatible with major control systems via RS232 control. The dual IR receivers on the front enhance control flexibility. Belt - drive stepper motors with variable speed provide smooth and fast movement. It has a 9 - 12V DC input at 1A. You can enjoy camera preset positioning, with up to 255 separate locations, and seven presets on the handheld remote or desktop control. It enables far - end camera control in suitable software codecs. A free PC desktop control program is available for download. The IR controls include a 'Video Mute'. It offers accurate pan and tilt, slow movement for fine - tuning, and rapid motion for wide - range movement, all with quiet operation. Its attractive form factor and metal frame give it a modern look, and its compact size makes it suitable for discreet placement. Technical specs include a focus range of f4.9 - 49mm/60cm - infinity, optical distortion of 1.2% - +0.8%, dynamic range of 65db, SNR above 50db, FOV with diagonal 66.6 - 7.2, horizontal 53.2 - 5.3, vertical 39.8 - 4.2, sensor size of 1/2.7”, standard 1/4”/20 thread tripod mount, dimensions of W 4 5/8” (117.5mm), D 4 3/8” (111.2mm), H 5”(127mm), and weight of 1lb 3.2 oz (.548 Kg).
Using the VDO360 VPTZH - 02 USB PTZ HD Compass Camera is easy. First, connect it to your device via the USB2.0 output. If you want to use external control, use the RS232 connection. You can use the handheld remote or the free PC desktop control program from our website to operate the camera. To set preset positions, just use the preset function, and you can save up to 255 different locations. For fine - tuning the camera position, use the slow movement mode. When you need to cover a wide area quickly, switch to rapid motion. Remember to use a 9 - 12V DC power supply at 1A. Keep the camera away from strong magnetic fields and high - temperature environments. Clean the lens gently with a soft cloth regularly to maintain image quality. If there are any issues, check the connections and the control settings first.
