Product Description

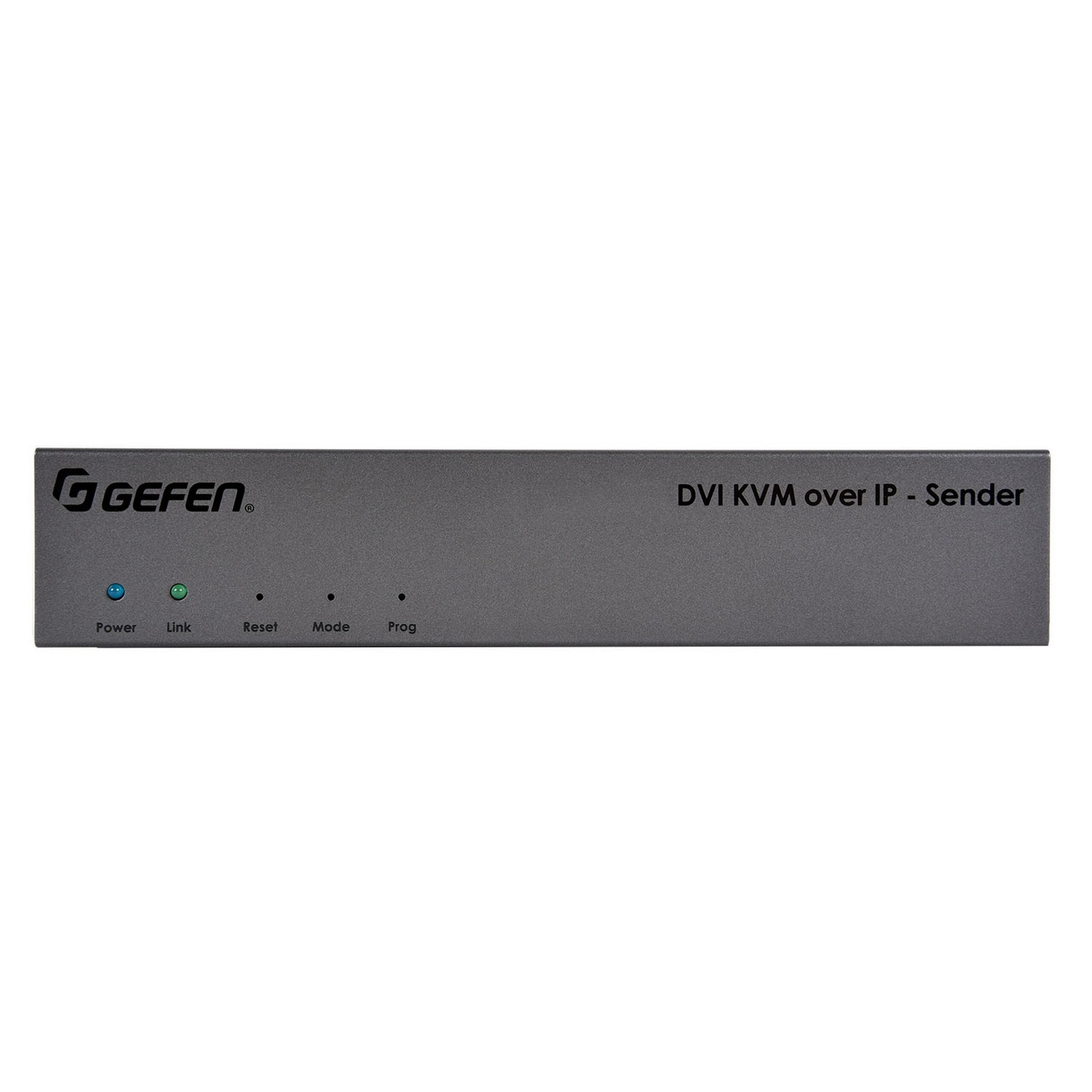

The Gefen EXT - DVIKA - LANS - TX Sender is a top - notch device for extending DVI, USB, RS - 232, 2 - way analog audio, and IR over a Gigabit Local Area Network. It supports VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz), delivering sharp and clear visuals. The sender unit has a DVI output for local source monitoring. It allows independent routing of video, USB, RS - 232, IR, and audio between any sender and receiver unit, enabling users to control sources and displays within their network. Backward - compatible with first - generation Gefen AV over IP products, it offers a range of advanced features. The KM Emulation feature allows real - time, simultaneous keyboard and mouse control of each source from all connected workstations. An integrated scaler ensures maximum compatibility and the best viewing experience. The built - in video wall controller can handle up to 16x16 rows and columns. With an enhanced API for third - party control systems and a built - in web interface, Telnet, and UDP, it's highly functional. It has multiple USB ports, a two - port Gigabit Ethernet switch in the receiver unit, and a mode switch for image optimization. The firmware is field - updatable, and it comes with locking power supply connectors. The half - rack width enclosures are rack - mountable or can be surface - mounted, and the low - profile receiver can be hidden behind the display.
Using the Gefen EXT - DVIKA - LANS - TX Sender is easy. First, connect the sender to your source device using the appropriate DVI, USB, RS - 232, audio, and IR cables. Then, connect the sender to the network via the Ethernet port. On the receiver side, connect it to the display and other necessary devices. Make sure to power both the sender and receiver using the provided power supply or PoE. When using the KM Emulation feature, simply connect your keyboard and mouse to the appropriate USB ports. For image optimization, use the mode switch on the sender. As for maintenance, keep the devices clean and dust - free. You can update the firmware via the EXT - CU - LAN controller or the built - in web server interface to ensure the best performance. Be careful when handling the cables and connectors to avoid damage. If you have any issues, refer to the user manual or contact customer support.
