Product Description

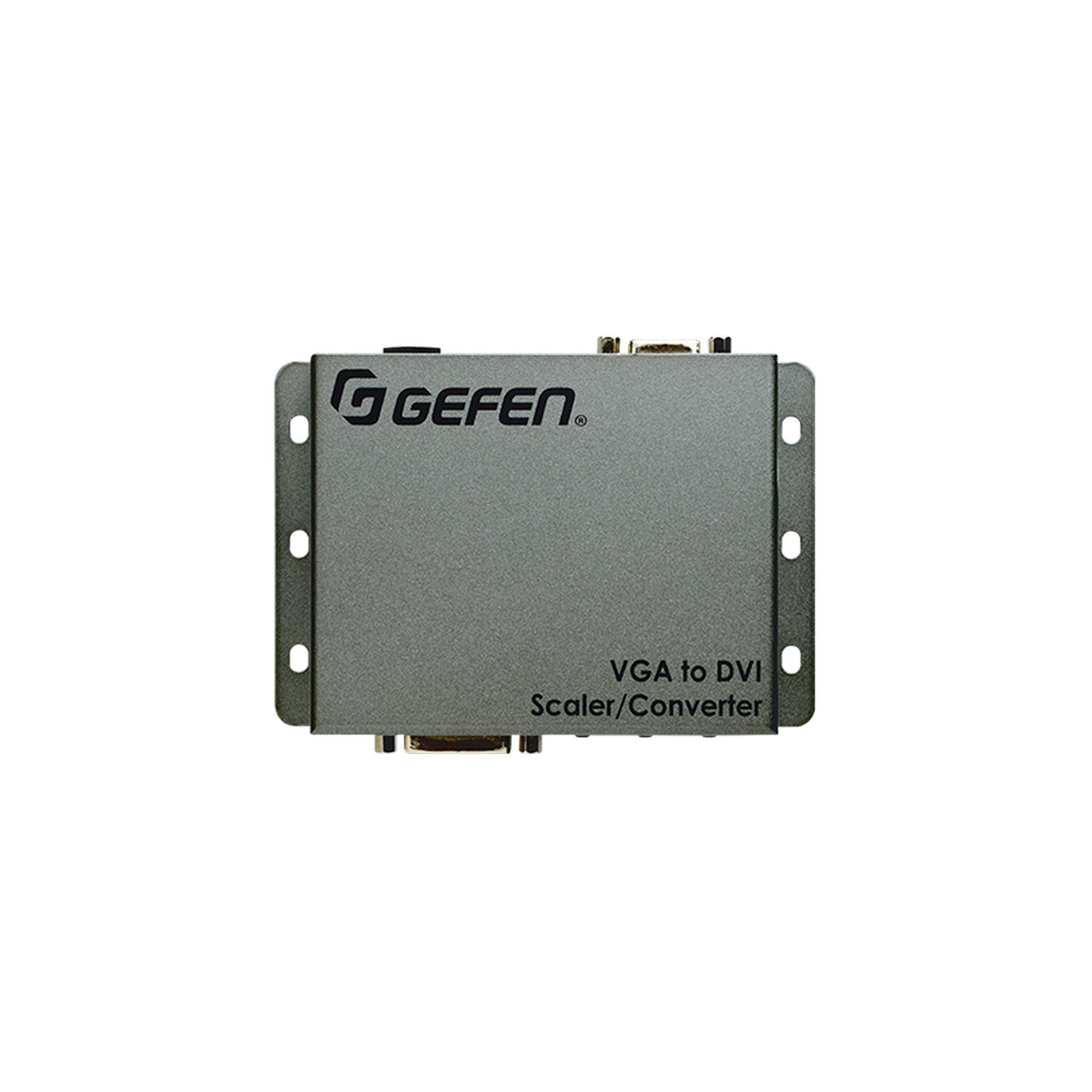

The Gefen EXT-VGA-DVI-SC is an outstanding device that scales and converts video from a VGA source to a DVI output. It can scale video up to 1080p Full HD and 1920 x 1200 (WUXGA), offering high - quality visual experience. With an intuitive on - screen display (OSD) menu, setting up and controlling the device is a breeze. You can easily configure and update this product using the powerful Gefen Syner - G software suite, which helps you discover, customize, manage, monitor, and upgrade your Gefen product. The wide power supply operating range from 6V to 24V DC provides great flexibility for different installation scenarios, whether it's for mobile use, in complex studio systems with a common power supply, or with remotely located power sources. The locking power supply connector, small footprint, and surface - mountable enclosure make installation easy and secure. Key features include converting and scaling VGA to DVI, supporting high input and output resolutions, aspect ratio control, a test pattern generator, simplified in - field firmware updates, and a USB port for use with Gefen Syner - G.
Using the Gefen EXT - VGA - DVI - SC is quite straightforward. First, connect your VGA source to the VGA HD - 15 female input connector on the device. Then, connect the output to your DVI - compatible display using the DVI - I 29 - pin female connector. You can use the on - screen display (OSD) menu to set up and control various functions like aspect ratio. To configure and update the device, use the Gefen Syner - G software through the USB Mini - B port. When it comes to power, make sure the power supply is within the 6V to 24V DC range. The device has a locking power supply connector, so ensure it's properly connected. Keep the device in an environment where the temperature is between 32°F to 122°F (0°C to 50°C) and humidity is between 5% to 90% non - condensing. For storage, the temperature can range from - 4°F to 185°F (- 20°C to 85°C) with humidity between 0% to 95% non - condensing. To maintain the device, keep it clean and avoid exposing it to physical damage. If you need to update the firmware, use the Gefen Syner - G software as it simplifies the process.
