Product Description

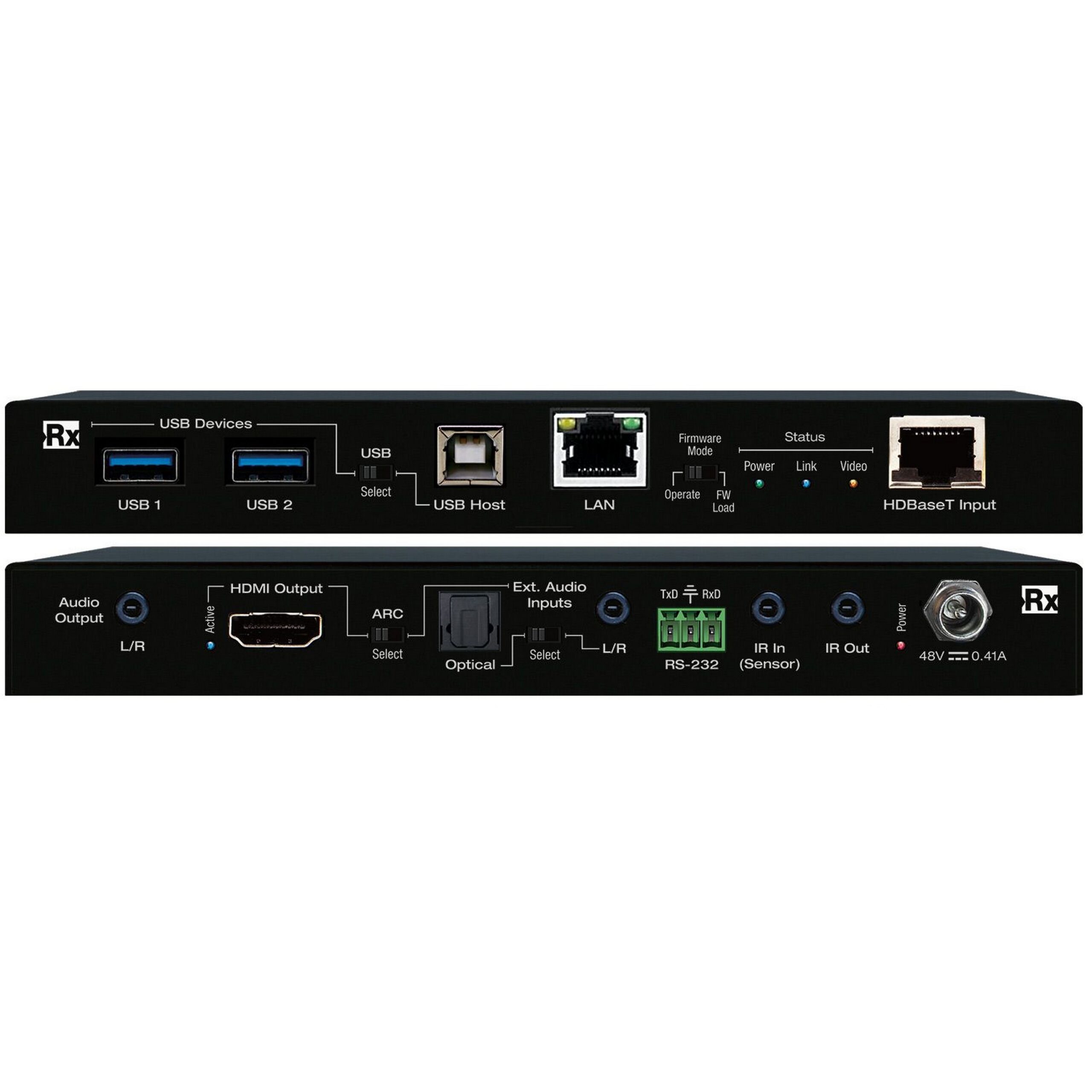

The Key Digital KD-X100MRX is a top - notch 4K/18G HDBaseT receiver. It supports up to 4096x2160 or 3840x2160 at 24/25/30/60hz with 4:4:4 signals up to 18Gbps bandwidth. It can extend 4K/UHD (18G) signals up to 100m and 1080p up to 150m. This receiver has features like USB, LAN, ARC, and offers audio de - embedding at the analog L/R connector. It integrates well with various transmitters and devices such as KD - X4x1WUTx, KD - PS22UTx, and KD - UPS52U. It also supports HDR10, Dolby Vision, and is compliant with HDCP 2.2. With its soft - codec enabling system, it creates a connectivity hub for professional USB devices. It has a low - profile, super - slim chassis design, and meets CE, RoHS, WEEE, EAC regulations. The product is 7.16 x 4.8 x 0.87” (182 x 122.5 x 22.2mm) and weighs 1 lb, while the packaging is 9.3” x 6.5” x 3.5” (235 x 165 x 90 mm) and weighs 2.0 lbs.
Using the Key Digital KD - X100MRX is easy. First, connect it to the appropriate transmitter, like KD - X4x1WUTx or KD - PS22UTx. Make sure all the cables are properly plugged in. You can connect your USB devices to the USB ports to create a connectivity hub. For audio, the incoming source audio can be de - embedded at the analog L/R connector. When using it with monitors or projectors, the CEC control signals are passed through. For PTZ control of the camera, use it with KD - CAMUSB via the KD - App. When it comes to power, if integrated with KD - X4x1WUTx or KD - PS22UTx, the Rx powers the Tx. But when integrated with KD - UPS52U, the Rx is powered by the Tx. As for maintenance, keep it in a clean and dry place. Avoid exposing it to extreme temperatures or humidity. Check the cables regularly for any signs of damage. And that's all you need to know to get the most out of your Key Digital KD - X100MRX receiver.
