Product Description

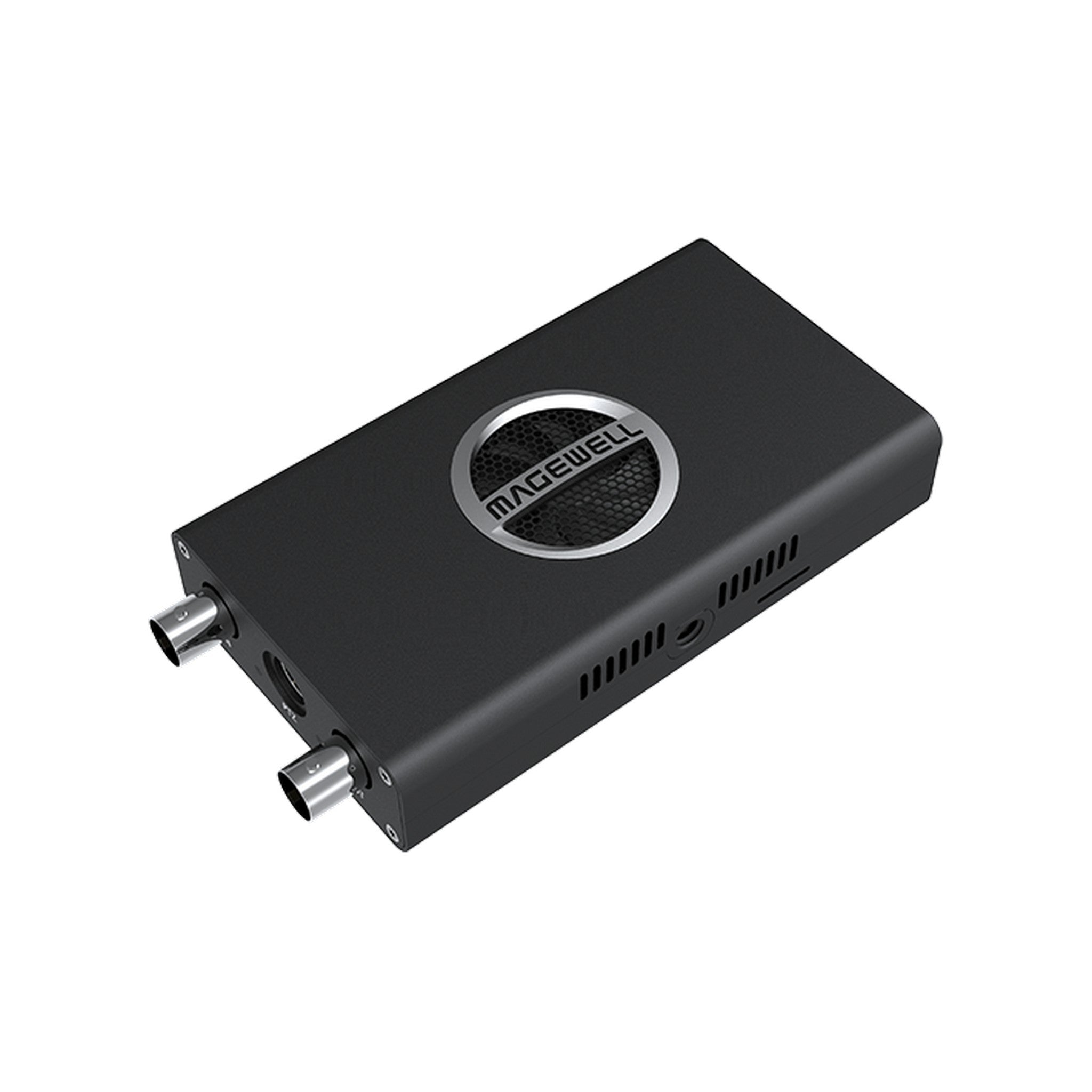

The Magewell Pro Convert 12G SDI 4K Plus is a top - notch video conversion device tailored for professional broadcasters and content creators. It can smoothly transform 12G - SDI 4Kp60 signals into Full NDI, enabling seamless integration into modern IP workflows. Whether you're live - streaming events, producing high - quality broadcasts, or handling complex video routing, this converter offers unmatched flexibility and performance.
This one - channel video converter not only converts signals but also features a loop - through output. This allows you to monitor your 12G - SDI input in real - time, ensuring signal integrity and high - quality visuals without extra equipment. It supports a wide range of resolutions and frame rates, making it suitable for all sorts of events, from live sports to corporate gatherings.
Built for reliability, the Pro Convert 12G SDI 4K Plus has advanced processing capabilities, guaranteeing minimal latency and excellent image quality. Its compact and robust design makes it easy to integrate into any setup and ensures long - lasting use. With the Magewell Pro Convert 12G SDI 4K Plus, experience the future of video conversion and broadcasting where high - definition meets cutting - edge technology.
**Key Features**
- Convert 12G - SDI 4Kp60 signals to Full NDI format
- Loop - through output for real - time monitoring
- Support for a wide range of resolutions and frame rates
- Compact and sturdy design for easy integration
- Minimal latency and great image quality
- Support for 16 - channel SDI embedded audio inputs
- Remote management via WebUI and Control Hub
- Compatibility with various NDI - enabled products like OBS and vMix
**Technical Specifications**
- **Input**: 1 x 12G - SDI
- **Max Video Input & Loop - Through**: 4096 x 2160 60fps
- **Supported Resolutions**: A wide range including 4096x2160p, 3840x2160p, etc.
- **Color Support**: Supports multiple color signals with different depths and samplings
- **Video Input Standards**: Supports RGB, YUV BT.601/709/2020 video input
- **Audio Input**: 16 - channel SDI embedded audio inputs
- **SDI Standards**: SD/HD/3G/6G/12G - SDI BNC input & loop through
- **Transmission Distance**: Receive 12G - SDI up to 30m, 6G - SDI 80m
- **NDI Encoding Features**: Encoding Full NDI real - time stream at high resolution
- **Output Resolutions**: Same as input or custom
- **Output Frame Rate**: Various options based on input
- **Audio Encoding**: 16 - channel NDI - embedded audio
- **NDI Version Support**: Support NDI 5.x
- **Configuration Management**: Register with Control Hub, remote control via WebUI
- **USB Support**: USB RNDIS/ECM, USB 2.0 Type B
- **Network Interfaces**: 10/100/1000Mbps Ethernet, IEEE 802.3af PoE
- **Form Factor**: 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
- **Weight**: 2.2 lbs
- **Power Supply**: 5V/2.1A power supply
- **Power Consumption**: Max current ~1.65A, Max power ~8.5W
- **Working Environment**: Operating temp 0 - 45 °C, Storage temp –20 - 70 °C, Humidity 5% - 90% non - condensing
- **Accessories**: USB 2.0 A to B cable, 5V/2.1A power adaptor, etc.
Using the Magewell Pro Convert 12G SDI 4K Plus is a breeze. First, connect your 12G - SDI source to the input port of the converter. Then, connect the output to your NDI - enabled device. If you want to monitor the input signal, use the loop - through output to connect to a monitor.
When setting up, make sure your network is stable, as it's important for the NDI transmission. You can use the WebUI or Control Hub to manage the configuration. Just register the device with Control Hub and access it remotely.
For maintenance, keep the device in a clean and dry environment. Avoid exposing it to extreme temperatures or high humidity. If you're not using it for a long time, turn it off and unplug the power supply. Also, regularly check the cables for any signs of damage. If you have any issues, consult the user manual or contact customer support.
