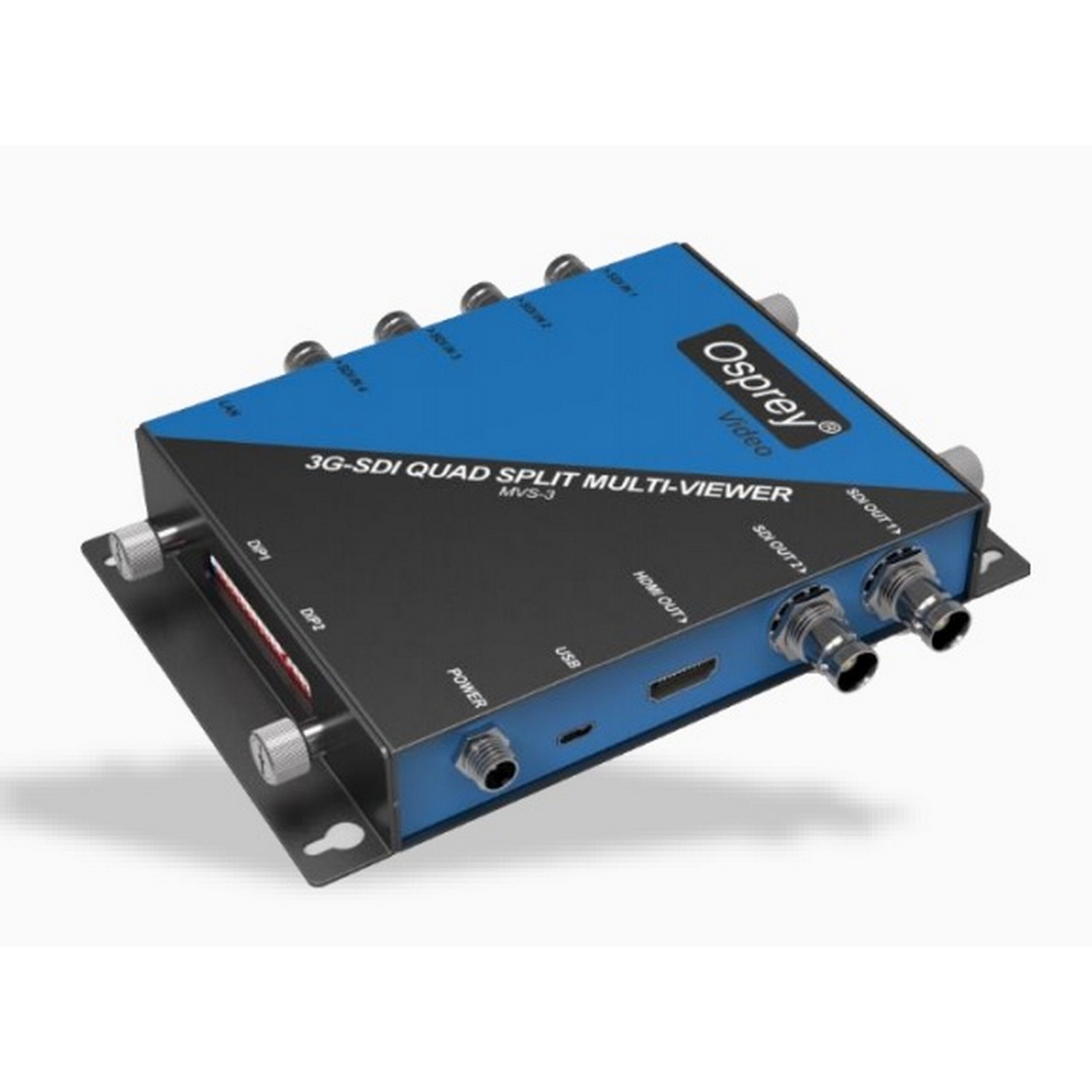

Osprey Video MVS-3 4 Channel 3G-SDI to HDMI and SDI Multi-Viewer Scaling

The Osprey Video MVS-3 is a powerful 4-channel multi-viewer that can scale one or more inputs and direct them to outputs in various layouts. All inputs are independent of resolution and frame rate. You can overlay audio bars on each channel for quick signal monitoring, and customize text overlay for each input. The input resolution display can be enabled or disabled as needed. With three parallel outputs (2x 3G-SDI and 1x HDMI), it supports up and down scaling and frame rate conversion. The MVS-3 can be configured via LAN and also features external dip-switches for manual setup. Key features include 4x 3G-SDI to HDMI and SDI multi-viewing with scaling and frame rate conversion. Technical specifications cover a wide range of input and output video formats, color spaces, and precision. The device has a compact size of 5”x2.4.1”x0.95” (125.5x104x24.5mm) and weighs only 0.7lb (0.30kg).

Using the Osprey Video MVS-3 is quite straightforward. First, connect your 3G-SDI video sources to the 4 input ports. Then, you can choose the output layout according to your needs. You can configure the device via LAN or use the external dip - switches for manual setup. To monitor the signal quickly, enable the audio bar overlay on each channel. You can also customize the text overlay for each input. When using the input resolution display, turn it on or off as per your preference. For output, connect your displays to the HDMI or 3G - SDI ports. Make sure to handle the device gently due to its compact size. Avoid exposing it to extreme temperatures or humidity. To maintain it, keep it clean and dust - free. If there are any issues, check the connections first and then refer to the technical specifications for troubleshooting.
