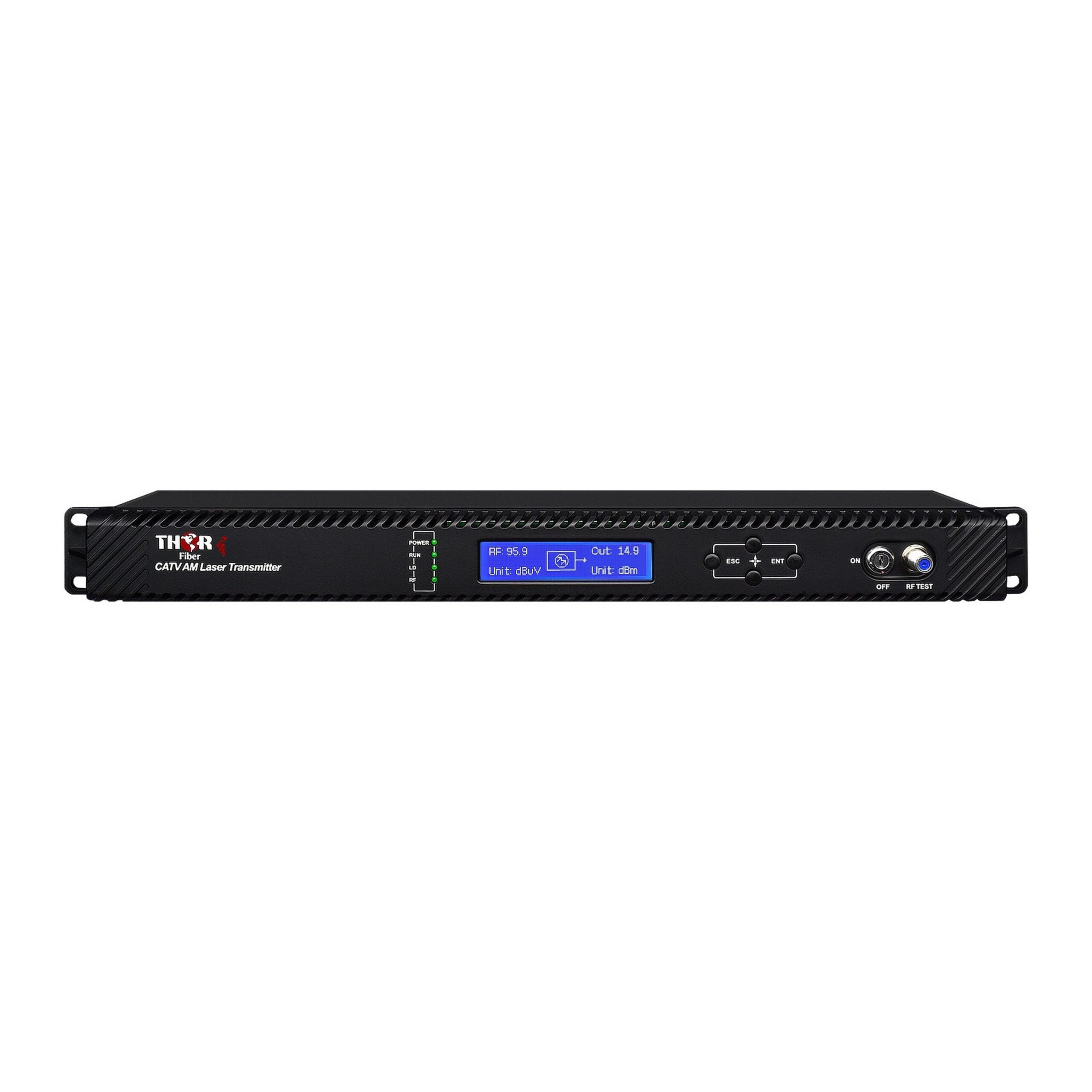

Thor Fiber F-RF-1310-Tx-32mW CATV RF Over Fiber Transmitter, 45-870 MHz

The Thor Fiber F - RF - 1310 - Tx - 32mW is an excellent CATV RF Over Fiber Transmitter operating in the 45 - 870 MHz range. It's a 1310nm, 32mW fiber optic transmitter that directly turns any incoming RF signal in this band into optical RF. You can transport all TV channels and programs over a single fiber. It's suitable for point - to - point use and can also be combined with PLC couplers and fiber optic splitters for point - to - multipoint applications. This transmitter outputs industry - standard RFoG signals that most other manufacturers' fiber optic RF receivers can accept. The front - panel LCD is easy to read, showing information and alarm data and simplifying configuration. It features a highly linear DFB laser with automatic adjustment circuitry and Automatic Gain Control. There's also an optional second internal Power Supply Unit for extra reliability. Key features include 32mW laser optics for at least +15 dBm optical output power, temperature - controlled optics for consistent power, broadband RF response for full TV lineup transport, and the ability to transport any 45 - 870 MHz channels. Technical specs: Laser Power is 32mW, Optical Power is > +15 dBm, Fiber Connector is SC/APC, RF Input Power is 19 - 21 dBmV, RF Connector is Type - F 75 Ohm, Power Input is 120 - 240 VAC, Power Rating is 50W, Dimensions are 19 x 10 x 1.75 IN, Temperature range is - 5 - 65 C. The package includes an optical transmitter, a US power cable, and a user manual.

Using this Thor Fiber CATV RF Over Fiber Transmitter is easy. First, connect the RF input using the Type - F 75 Ohm connector. Then, plug in the power cable to a 120 - 240 VAC power source. The front - panel LCD will show important information and alarm data. For point - to - multipoint applications, you can combine it with PLC couplers and fiber optic splitters. When it comes to maintenance, keep the transmitter in a cool environment within the - 5 - 65 C temperature range. Avoid exposing it to dust and moisture. If you choose the optional second internal Power Supply Unit, it adds extra reliability. Always refer to the user manual for detailed instructions and troubleshooting.
