Product Description

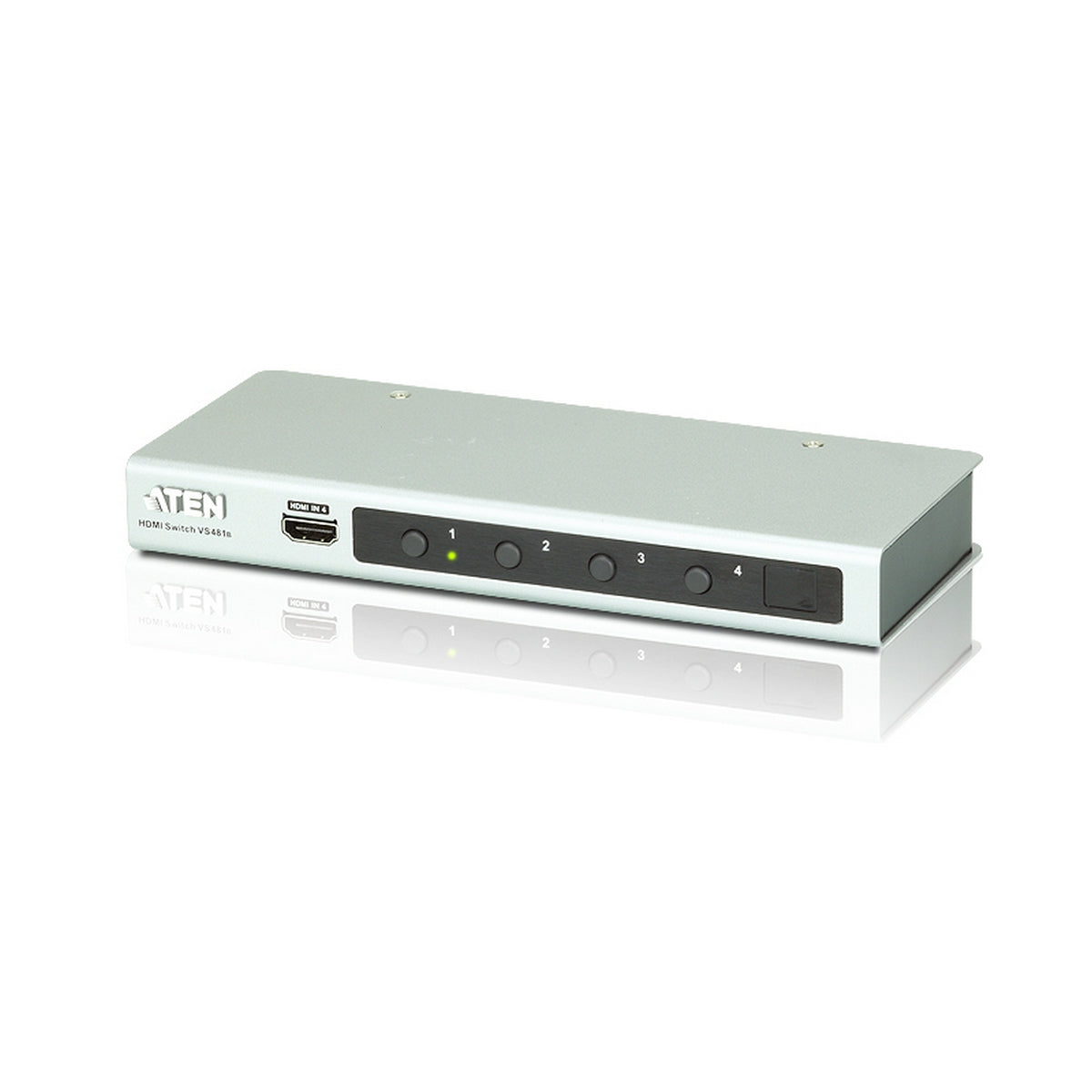

The ATEN VS481B 4-Port HDMI Switch is a game - changer for HDMI connectivity. It enables you to effortlessly connect up to four HDMI A/V sources to a single HDMI display. Switch between these sources quickly and easily using front - panel pushbuttons, RS - 232, or an IR remote control. The front - panel LEDs clearly show the selected source device at a glance. This switch supports Ultra HD 4Kx2K, the latest high - definition resolution. It features auto - switching modes for automatic port selection and instant switching for seamless video transitions between HDMI ports, boosting efficiency. It also has a built - in bi - directional RS - 232 serial port, allowing control via a high - end controller, PC, or home automation/home theater software. Key features include 340MHz bandwidth for ultra - high 4kx2k video, HDMI (3D, Deep Color, 4kx2k) and HDCP compatibility, long - distance transmission up to 15 m (24 AWG), Consumer Electronics Control (CEC) support, and support for Dolby True HD and DTS HD Master Audio. Technical specs cover connectors, switches, LEDs, video resolutions, power consumption, environmental conditions, physical properties, and dimensions.
Using the ATEN VS481B 4 - Port HDMI Switch is easy. First, connect your four HDMI sources to the four HDMI Type A Female ports on the device. Then, connect your HDMI display to the HDMI Out port. You can choose to control the switch using the front - panel pushbuttons, RS - 232, or an IR remote control. If you use the IR remote, you can even extend it with an IR extension cable. When using the switch, make sure the power supply is stable, as it operates at DC5V, 5W. Keep the device in an environment with an operating temperature between 0 - 50°C and a storage temperature between - 20 - 60°C, and a humidity level of 0 - 80% RH (non - condensing). For maintenance, regularly check the connectors for any signs of damage or looseness. Wipe the metal housing with a dry, soft cloth to keep it clean. If you encounter any problems, refer to the user manual or contact customer support.
