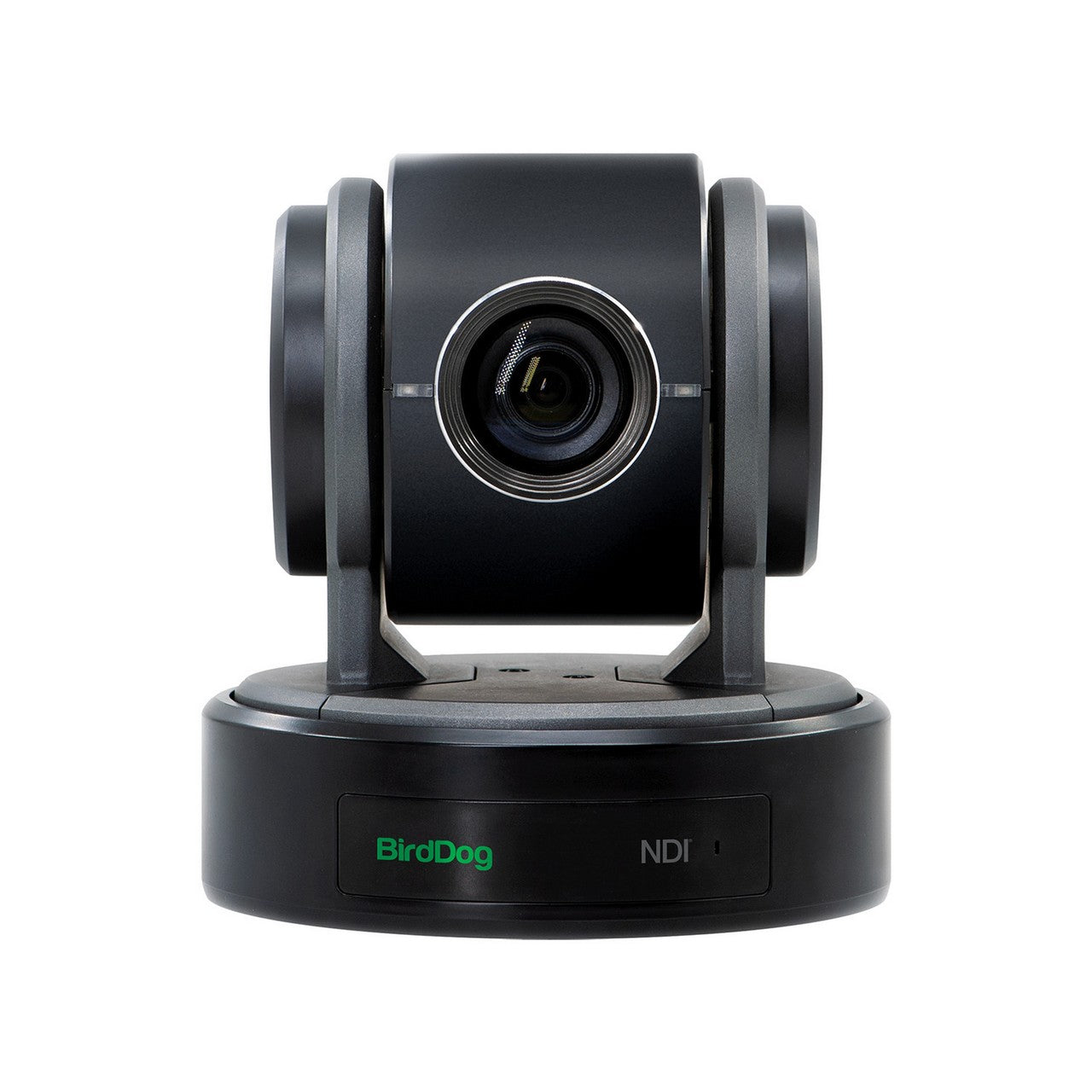

BirdDog P100B 1080p Full NDI PTZ Camera with SDI Black

The BirdDog P100B is a top - notch PTZ camera that offers entry into the full NDI world. Built on BirdDog's custom NDI silicon chip, it features high - end performance. With frame rates up to 1080p60, 10x optical zoom, and both SDI and NDI outputs, it delivers professional - level quality and great flexibility. It has a 1 / 2.86” inch CMOS 2.2MP image sensor, a 4.7 - 47mm lens, and various adjustable settings for focus, white balance, and exposure. The pan and tilt movements are smooth, with a wide range of motion. It supports multiple video formats and has audio I/O for stereo. Control is easy via NDI, serial protocols, or web/mobile UI. It operates in a temperature range of - 10 to + 50°C and requires 12vDC power.

Using the BirdDog P100B is straightforward. First, connect the power supply of 12vDC to get it up and running. You can use the 3.5mm audio ports for stereo input and output. To control the camera, you can use NDI control which auto - configures, or serial control through the RJ45 ports using protocols like VISCA or Pelco D. You can also manage it via the web or mobile UI for full control, including setting scene presets. When using, make sure the operating temperature is between - 10 and + 50°C and the humidity is no more than 80%. Avoid exposing it to extreme conditions. For maintenance, keep the lens clean with a soft cloth. Regularly check the connections to ensure they are secure. If there are any issues, refer to the user manual or contact customer support.
