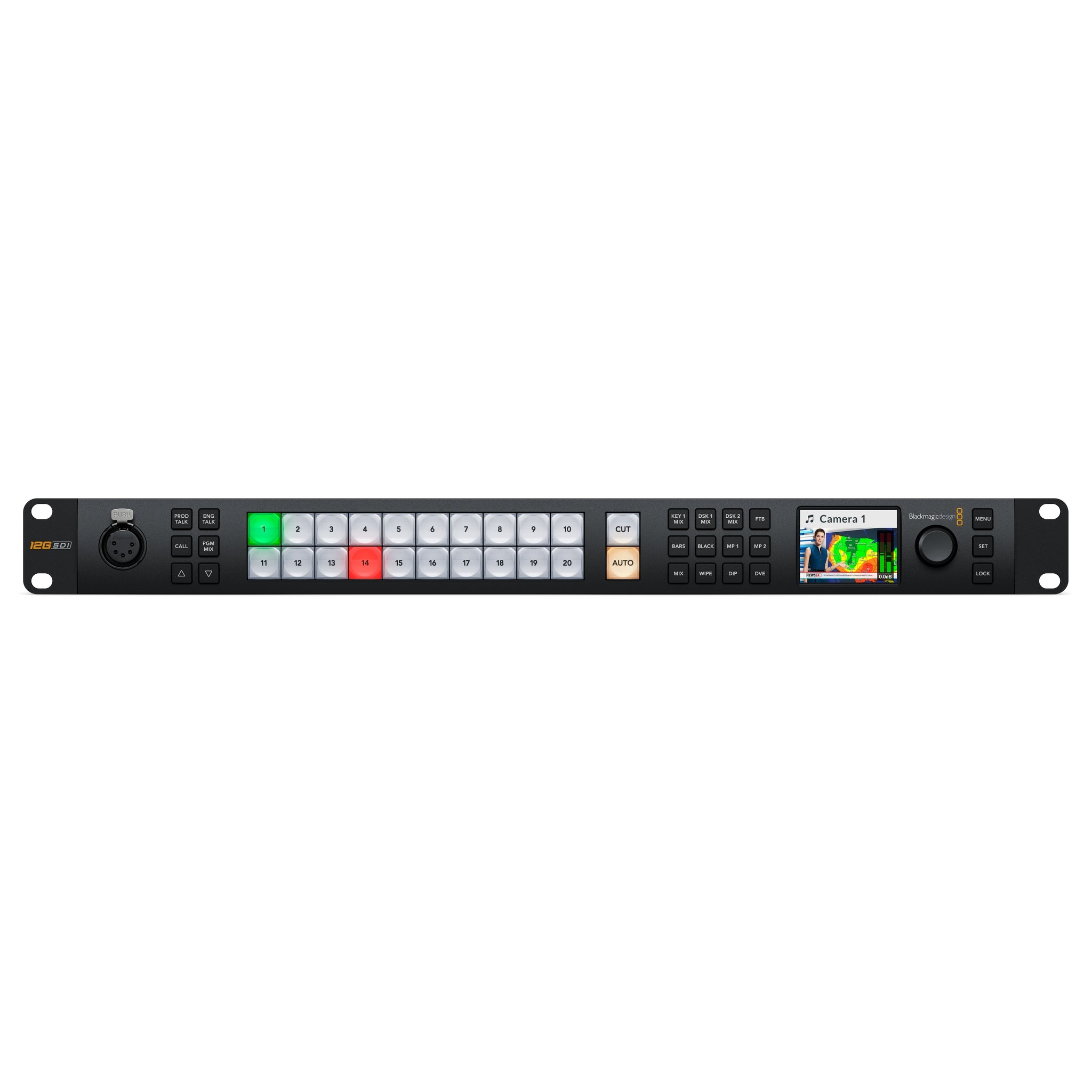

The Blackmagic Design ATEM 2 M/E Constellation 4K Ultra HD Live Production Switcher is a top - notch solution for pros aiming to boost their live production skills. This mighty 2 M/E switcher is crafted to take on the toughest production scenarios, delivering outstanding Ultra HD quality. It ensures your broadcasts and live events are produced super efficiently and precisely. With loads of advanced features and high - end specs, it's a rock - solid and flexible tool for any live production setup.
It comes with 20 standards - converted 12G - SDI inputs and 12 12G - SDI aux outputs, offering great flexibility for multiple video sources and outputs. The built - in 48 - channel Fairlight audio mixer provides comprehensive audio management, guaranteeing excellent sound quality with EQ and dynamics processing. Featuring 8 ATEM Advanced Keyers, 2 Dynamic Video Effects (DVEs), and SuperSource with 6 DVEs, this switcher streamlines your creative workflow with seamless keying, transitions, and picture - in - picture compositions. Its USB webcam output makes it a breeze to stream to popular platforms, perfect for live streams, conferences, and more.
The ATEM 2 M/E Constellation 4K goes beyond ordinary switchers. It has built - in talkback, two multiviewers for monitoring multiple sources at once, and supports various media formats via its media players. It also works with a wide range of HD and Ultra HD video standards, ensuring compatibility with diverse video formats and production needs. Whether you're a broadcaster, live event producer, or content creator, this switcher offers reliability, versatility, and top - tier performance.
**Key Features**:
- Robust 2 M/E Ultra HD live production switcher.
- 20 standards - converted 12G - SDI inputs and 12 12G - SDI aux outputs.
- Built - in 48 - channel Fairlight audio mixer with EQ and dynamics.
- 8 ATEM Advanced Keyers and 2 Dynamic Video Effects (DVEs).
- SuperSource with 6 DVEs for flexible compositions.
- Two multiviewers for simultaneous source monitoring.
- USB webcam output for easy streaming.
- Compatibility with a wide range of HD and Ultra HD video standards.
- Built - in talkback for smooth communication.
**Specifications**:

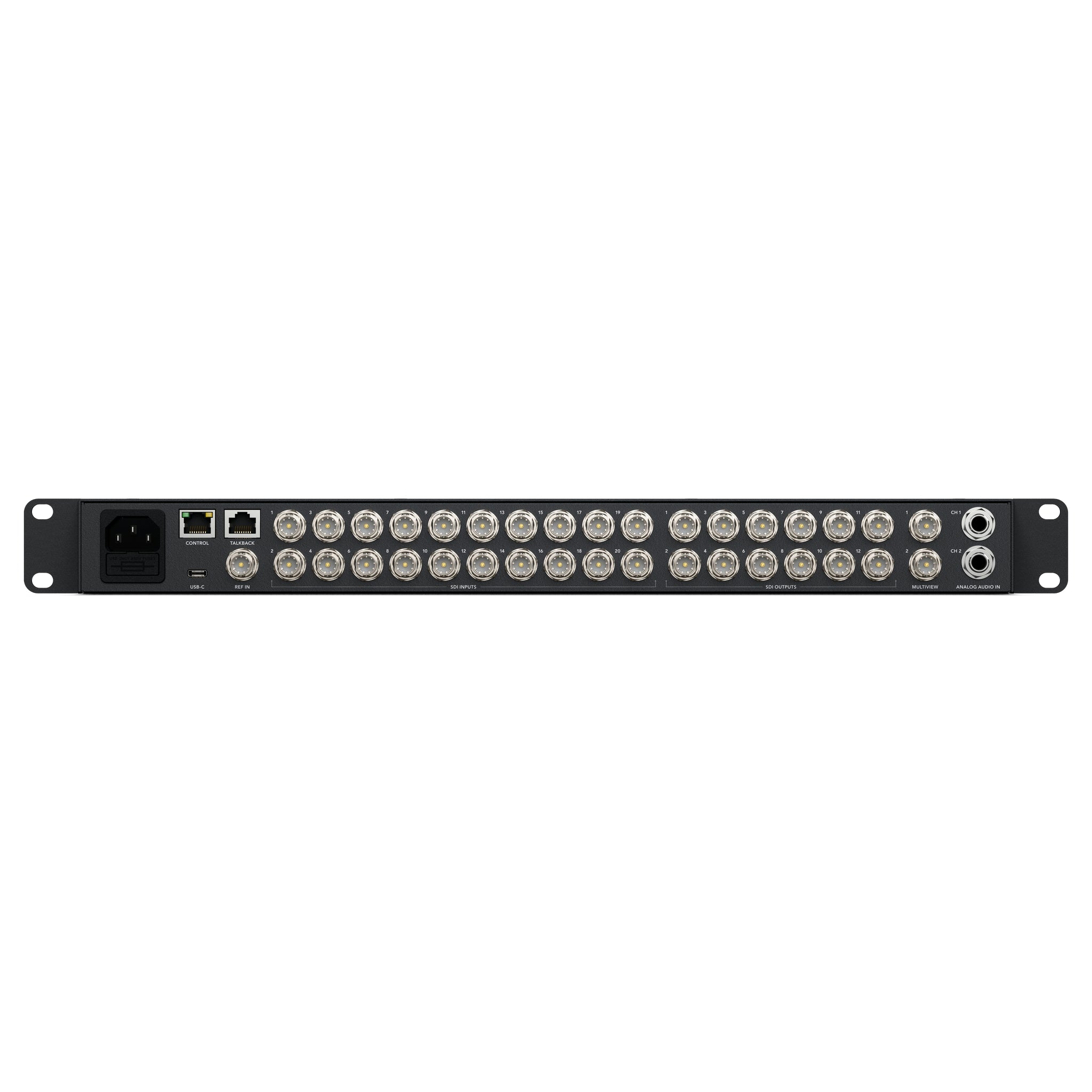

- Total Video Inputs: 20
- Total Video Outputs: 12
- SDI Rates: 1.5G, 3G, 6G, 12G
- Total Audio Inputs: 2 x balanced 1/4 - inch Jack, 1 x 5 pin XLR Talkback.
- Total Audio Outputs: 1 x 5 pin XLR Talkback.
- SDI Audio Inputs: 16 Ch embedded audio on all SDI inputs.
- SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
- Reference Input: Tri - Sync or Black Burst.
- Video Input Re - Sync: On all 20 inputs.
- Frame Rate and Format Converters: On all 20 inputs.
- SDI Aux Outputs: Any of the 12 SDI outputs.
- Webcam Output: 1 x USB - C supporting 720p or 1080p at PGM frame rate.
- Total Multi Views: 2 x 12G - SDI
- Control Panel Connection: Ethernet.
- Internal Timecode Generator: Yes
- Talkback: RJ45 for 3rd party talkback systems.
- Ethernet: Supports 10/100/1000 BASE - T.
- Computer Interface: 1 x USB - C supports USB 2.0
- Video Standards: Up to 2160p60
- Color Precision: 10 - bit
- Color Space: REC 709, REC 2020
- Audio Mixer: 48 Channel with various dynamics and EQ
- Software Control: ATEM Software Control included for Mac and Windows.
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: - 20°C to 60°C (- 4°F to 140°F)
- Power Supply: 1 x Internal 100 - 240 AC.
- Power Usage: 140 W
- Dimensions: 1 Rack Unit Size.
**Package Contents**:
- ATEM 2 M/E Constellation 4K
- Welcome wallet with QR code for software download
- 12 Month Limited Manufacturer's Warranty
Using the Blackmagic Design ATEM 2 M/E Constellation 4K Ultra HD Live Production Switcher is quite straightforward. First, connect your video sources to the 20 standards - converted 12G - SDI inputs. You can use the two multiviewers to monitor these sources at the same time. For audio, connect your audio devices to the appropriate inputs. The 48 - channel Fairlight audio mixer allows you to manage the sound well, using EQ and dynamics processing to get great sound quality.
When it comes to creating effects, use the 8 ATEM Advanced Keyers and 2 Dynamic Video Effects (DVEs) for seamless transitions and keying. The SuperSource with 6 DVEs gives you a lot of options for picture - in - picture compositions. If you want to stream your production, simply use the USB webcam output to connect to popular streaming platforms.
As for talkback, use the built - in feature through the RJ45 connection for communication with your team. You can control the switcher using the ATEM Software Control on your Mac or Windows computer.
**Note**: Make sure the operating temperature is between 0°C and 40°C (32°F to 104°F). Don't expose the device to extreme temperatures. Also, when handling the device, be careful not to damage the connectors.
**Maintenance**: Keep the device clean by using a soft, dry cloth to wipe it. Check the connections regularly to ensure they are secure. If you're not using the device for a long time, store it in a cool, dry place with a temperature between - 20°C and 60°C (- 4°F to 140°F).
