Product Description

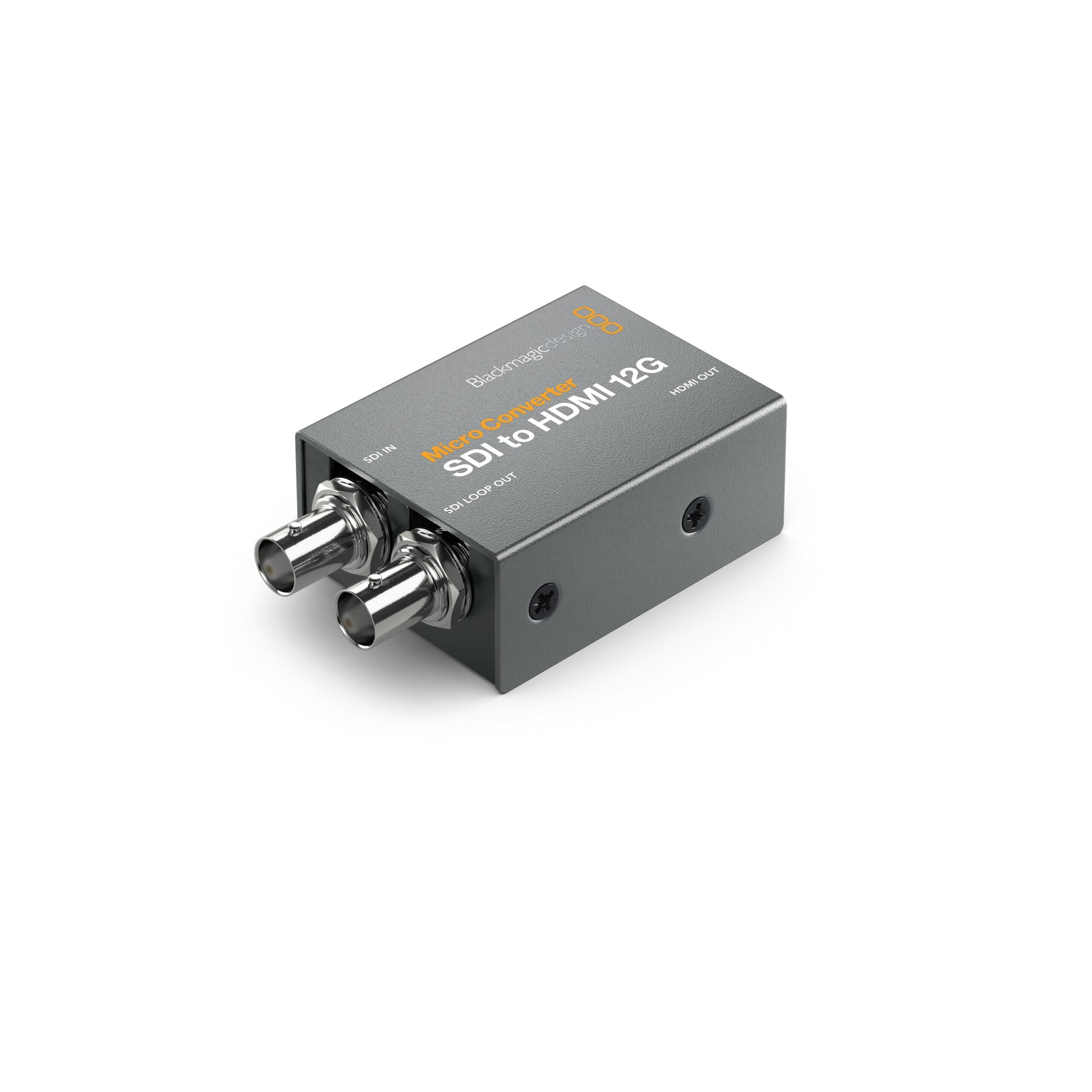

The Blackmagic Design Professional 12G-SDI to HDMI Miniature Video Converter is hailed as the world's tiniest 12G-SDI to HDMI converter with broadcast-grade quality. Despite its small size, this powerhouse is tailor - made for professional - level monitoring. It comes with a 33 - point 3D LUT, enabling precise color calibration for monitors, projectors, or TVs, so you get accurate and vivid colors every time. Its compact build makes it the perfect choice for pros who need reliable, high - quality video conversion without the bulk. This converter features both full - size HDMI and professional 12G - SDI connections, offering great versatility for various applications. It supports all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i, and 2160p video rates, including 4K DCI at 24/47.95/48 Hz. You can conveniently power it via USB from a TV, mobile phone charger, or any standard USB power source. Designed to fit into any professional setting, it supports a wide range of video standards and formats, making it ideal for broadcasters, live producers, and post - production experts. Whether you're working on HD, 4K, or DCI projects, this converter ensures top - notch quality and accuracy. Key Features: World's smallest 12G - SDI to HDMI broadcast quality converter; 33 - point 3D LUT for precise color calibration; Full - size HDMI and professional 12G - SDI connections; Supports various video rates; Supports 4K DCI at specific frequencies; Power via USB from multiple sources; Auto - detection of video standards; Configurable on MacOS and Windows via USB; Compact and portable design. Specifications: 1 SDI video input, 1 SDI loop - out output, 1 type A HDMI 2.0 output; Supports various SDI rates; Auto - detects SD, HD, 2K, Ultra HD, and 4K; Uses USB Type - C for update, configuration, and power; Supports multiple SD, HD, 2K, Ultra HD, and 4K video standards; Meets various SDI and HDMI compliance standards; 4:2:2 color precision with a 33 - point LUT for both SDI and HDMI; Settings can be controlled via MacOS and Windows software utility connected by USB; Compatible with specific Mac and Windows operating systems; Allows internal software upgrade via USB; Maximum power consumption of 4W; Operates within a specific voltage and temperature range; Can be stored within a certain temperature range; Requires non - condensing relative humidity. Package Contents: Blackmagic Design Micro Converter SDI to HDMI 12G, USB Type - C Cable, Documentation.
Using the Blackmagic Design 12G - SDI to HDMI Video Converter is easy. First, connect the SDI input cable to your SDI source, like a camera or a switcher. Then, connect the HDMI output cable to your display device, such as a monitor or a TV. You can power the converter via USB. Just plug the USB Type - C cable into a power source, like a TV's USB port or a mobile charger. Once it's powered on, the converter will automatically detect the video standard of your input. If you need to adjust the settings, you can connect it to a Mac or Windows computer via USB and use the software utility. Here are some things to keep in mind. Make sure the power source provides a voltage between 4.4V and 5.25V DC. Don't operate the converter in extreme temperatures. It works best between 0 to 40 C (32 to 104 F). When storing it, keep it in a place where the temperature is between - 20 to 60 C (- 4 to 140 F) and the relative humidity is between 0% to 90% and non - condensing. For maintenance, keep the converter clean and dust - free. You can also periodically update the internal software via USB to ensure it runs smoothly and takes advantage of any new features.
