Digital Forecast Bridge X_TS Mini SDI/HDMI Cross Converter and Measurement

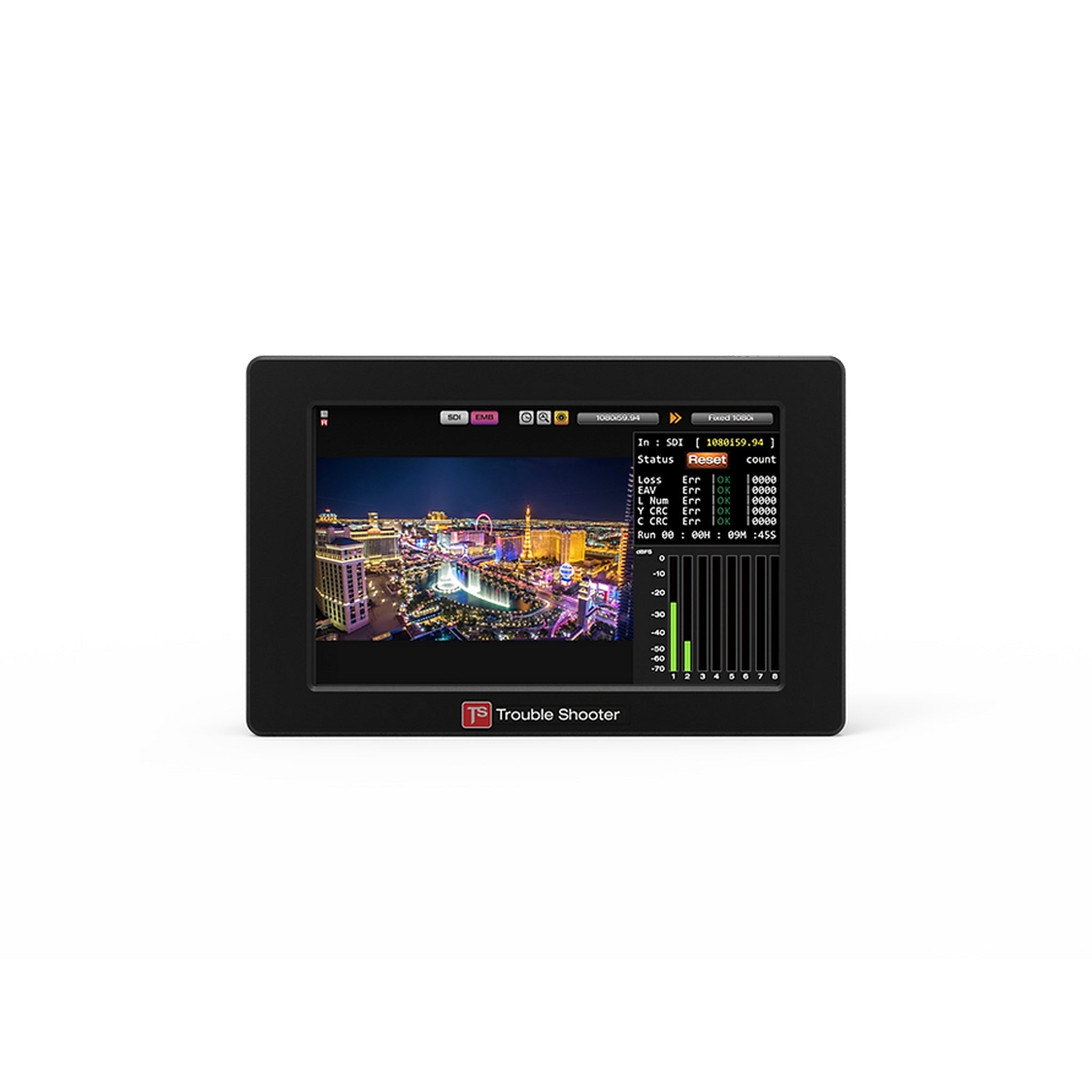

The Bridge X_TS series is an extraordinary portable signal converter equipped with measurement capabilities. It's a game - changer for video and audio signal installation and maintenance services. With its compact design and powerful functions, you can easily check various signal statuses on the 5” LCD touch screen, from video display to SDI jitter and cable conditions. Key features include SDI to HDMI cross - conversion, support for all standard SD/HD/3G formats on both SDI and HDMI in/outputs. There are 8 types of test pattern generators, allowing simultaneous test pattern generation and measurement. It also offers an eye pattern diagram for SDI input, signal integrity checks for both SDI and HDMI, audio level monitoring for up to 8 channels, and an audio monitoring earphone output. The 5” touch screen LCD (800x480) provides a user - friendly interface.

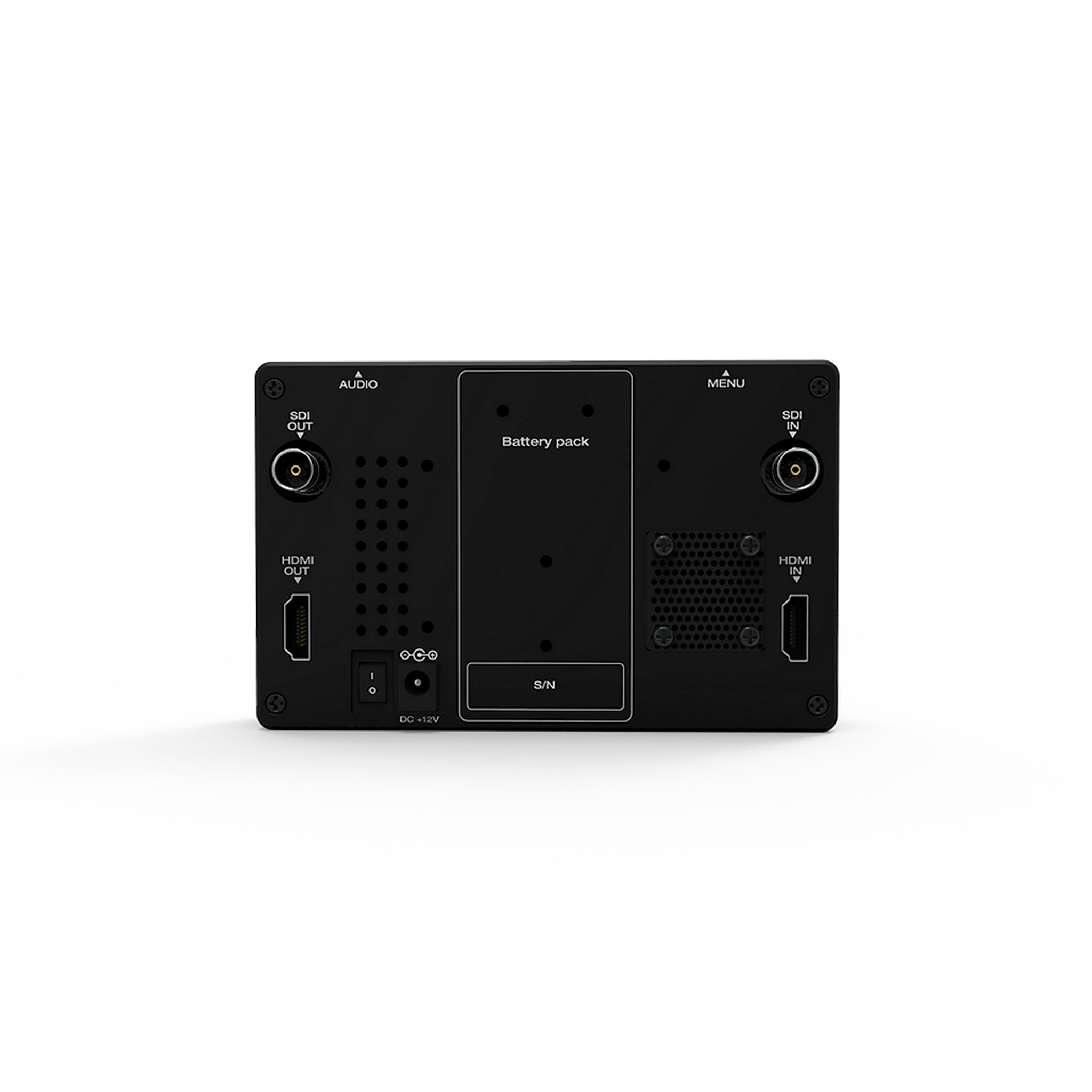

Using this device is a breeze. First, connect your SDI or HDMI cables to the appropriate input and output ports according to your needs. Turn on the device, and you can start checking the signal status on the 5 - inch touch screen. To generate test patterns, just select the type you want from the menu. When it comes to audio monitoring, plug in your earphones to the designated output. As for maintenance, keep the device in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. If there are any issues with the cables, make sure to check for proper connections. And don't forget to update the device's software regularly to ensure optimal performance.
