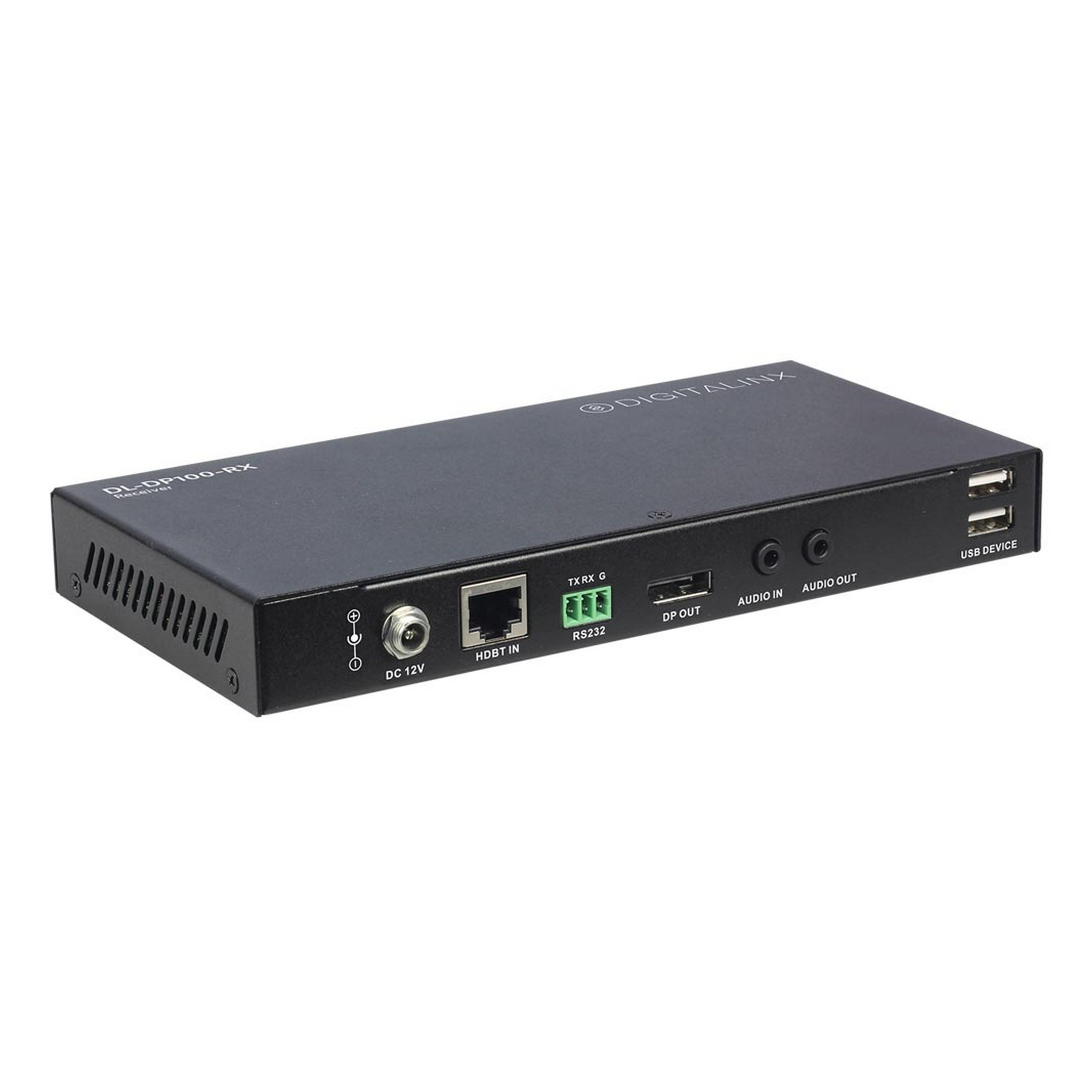

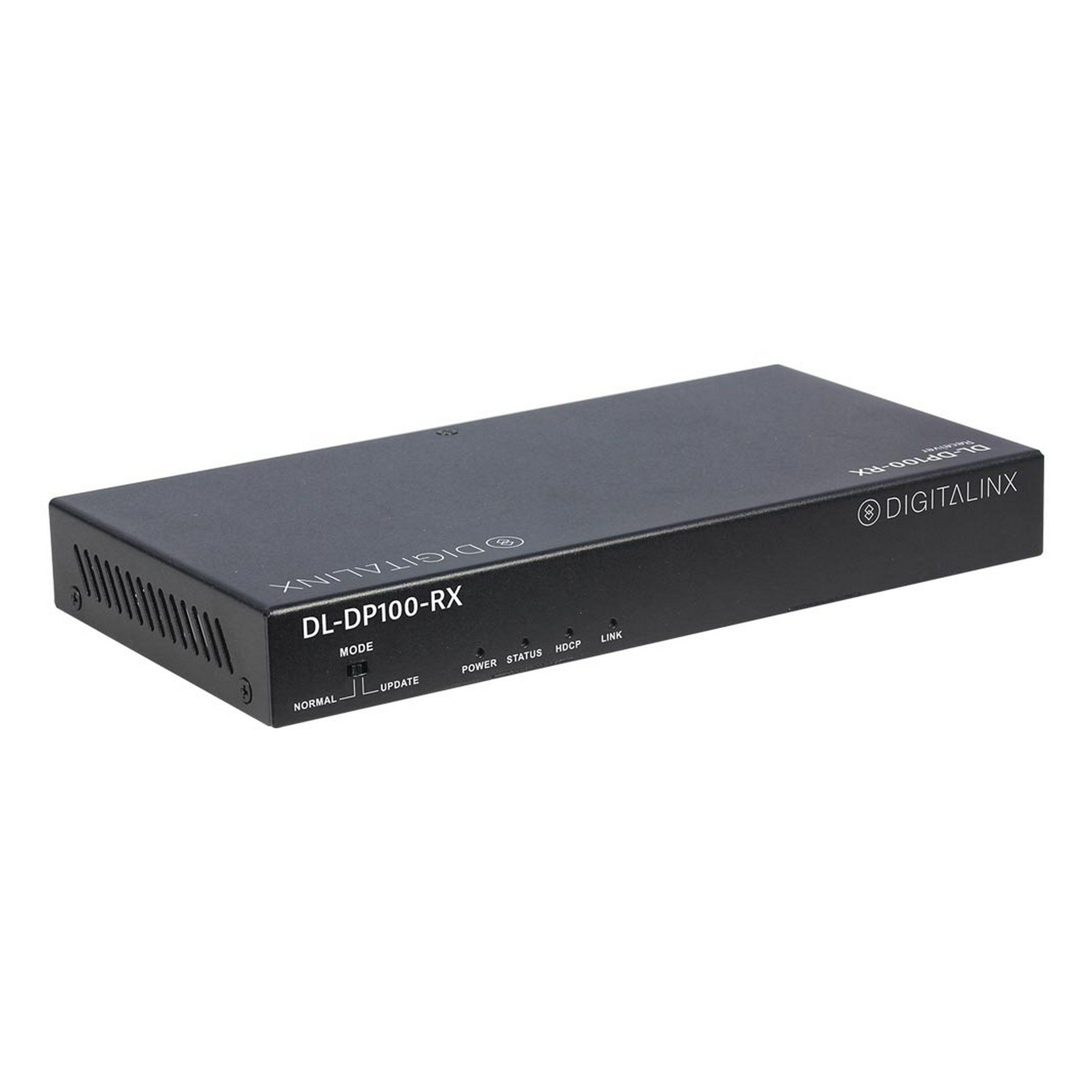

The DigitaLinx DL - DP100 HDBaseT extender set is an outstanding solution for long - distance signal transmission. It can send Display Port signals (both 1080p and 4Kx2K, with HDCP 1.4 support), Ethernet, USB - HID, HD Audio, and RS232 pass - through up to 100 meters away using just a single Category 6 twisted pair cable. The built - in diagnostic LEDs make installations smooth and reliable. This set supports USB - HID pass - through, allowing users to remotely control or operate PCs, servers, or workstations that are not physically accessible. Key features include a complete set with transmitter and receiver, DisplayPort extension up to 330 feet via HDBaseT, 4K and HDCP compliance, built - in USB2.0 extension, RS232 control passing, powering at the transmitter only, and a slim design.
Using the DigitaLinx DL - DP100 is easy. First, connect the transmitter to your source device like a PC or server. Then, use a single Category 6 twisted pair cable to link the transmitter and the receiver, which can be placed up to 100 meters away. Connect the receiver to your display and other relevant devices. You can now enjoy 4K display and use USB - HID to control the source device remotely. Remember to ensure that the source device supports DisplayPort and HDCP 1.4. Also, make sure the cable is properly connected to avoid signal issues. For maintenance, keep the set in a dry and clean place. If there are any problems, check the diagnostic LEDs on the devices to find out what's wrong.
