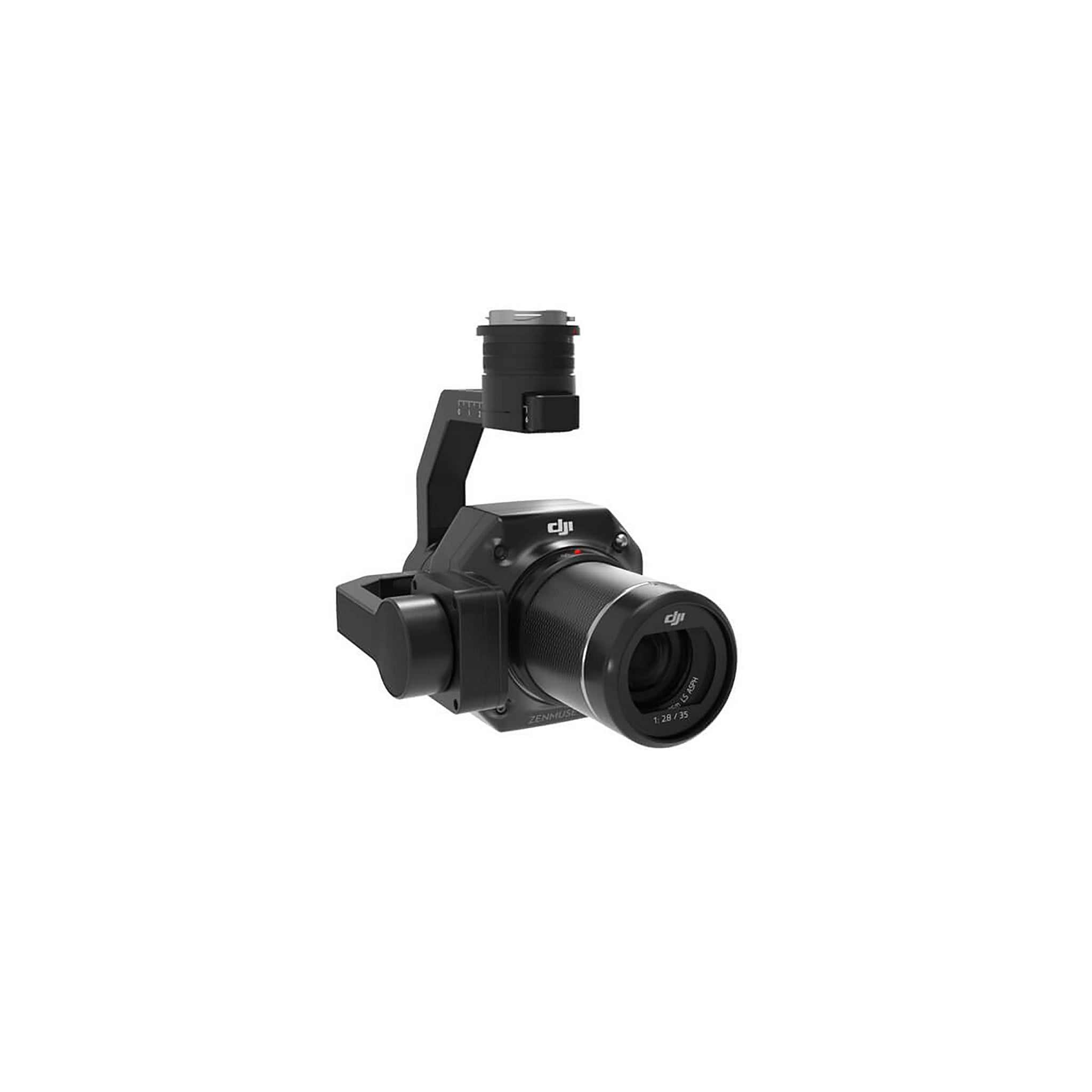

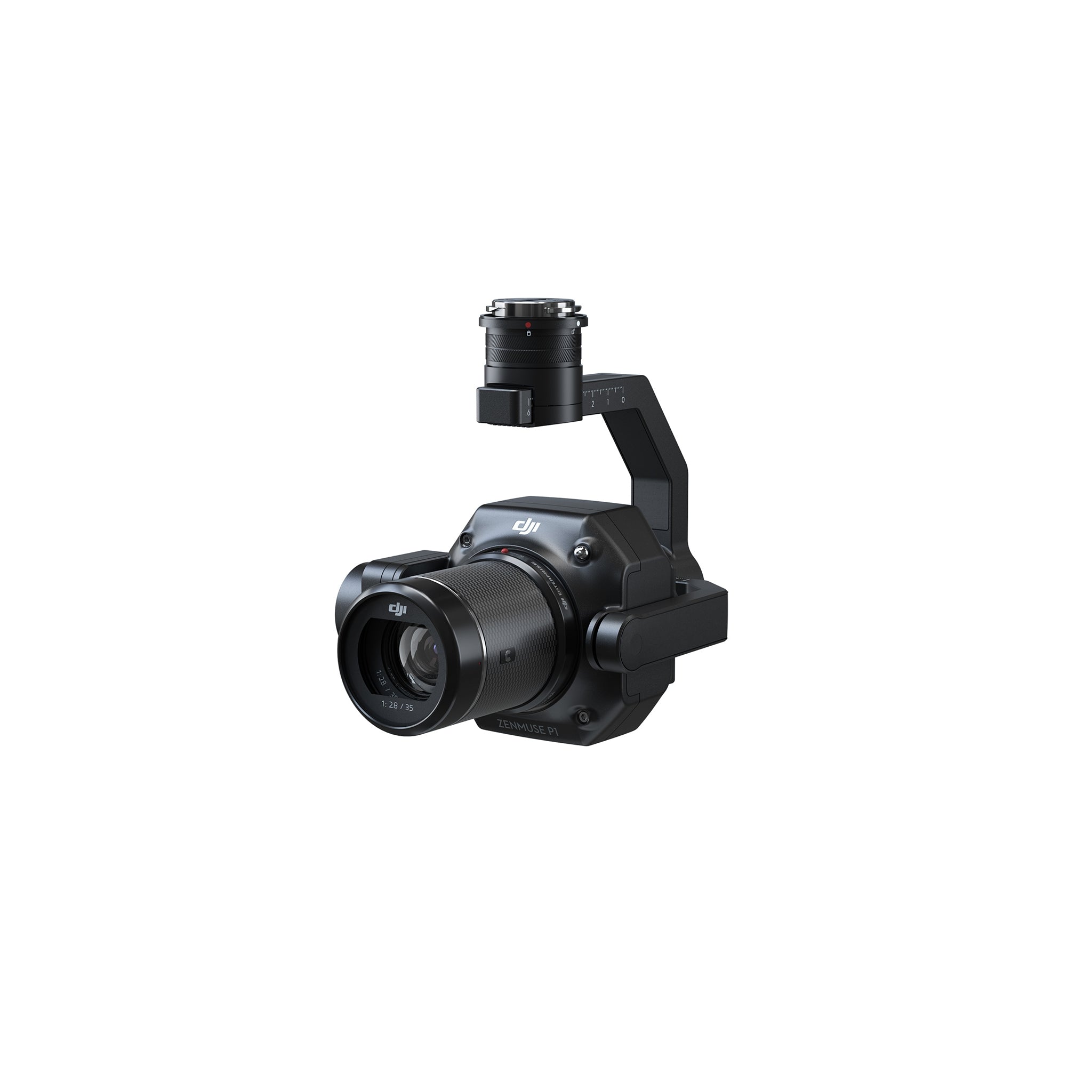

The DJI Zenmuse P1 is a high - performance 3 - axis full - frame sensor drone camera paired with a Shield Basic 1 - year warranty. Ideal for photogrammetry flight missions, it takes efficiency and accuracy to new heights. With a full - frame, low - noise high - sensitivity sensor, it can capture a photo every 0.7 seconds during flight and cover 3 square kilometers in a single flight. The global mechanical shutter and TimeSync 2.0 system ensure centimeter - accurate data collection. Its 3 - axis gimbal, compatible with 24/35/50mm lenses and featuring Smart Oblique Capture, allows you to create 2D, 3D, and detailed models. Smart Data Management simplifies post - flight organization, and the camera supports various mission types such as 2D orthomosaic, 3D oblique, detailed modeling, and real - time mapping. Key features include high accuracy without GCPs, high efficiency, a 45 MP full - frame sensor, and more. Technical specs cover dimensions, weight, power, and much more.

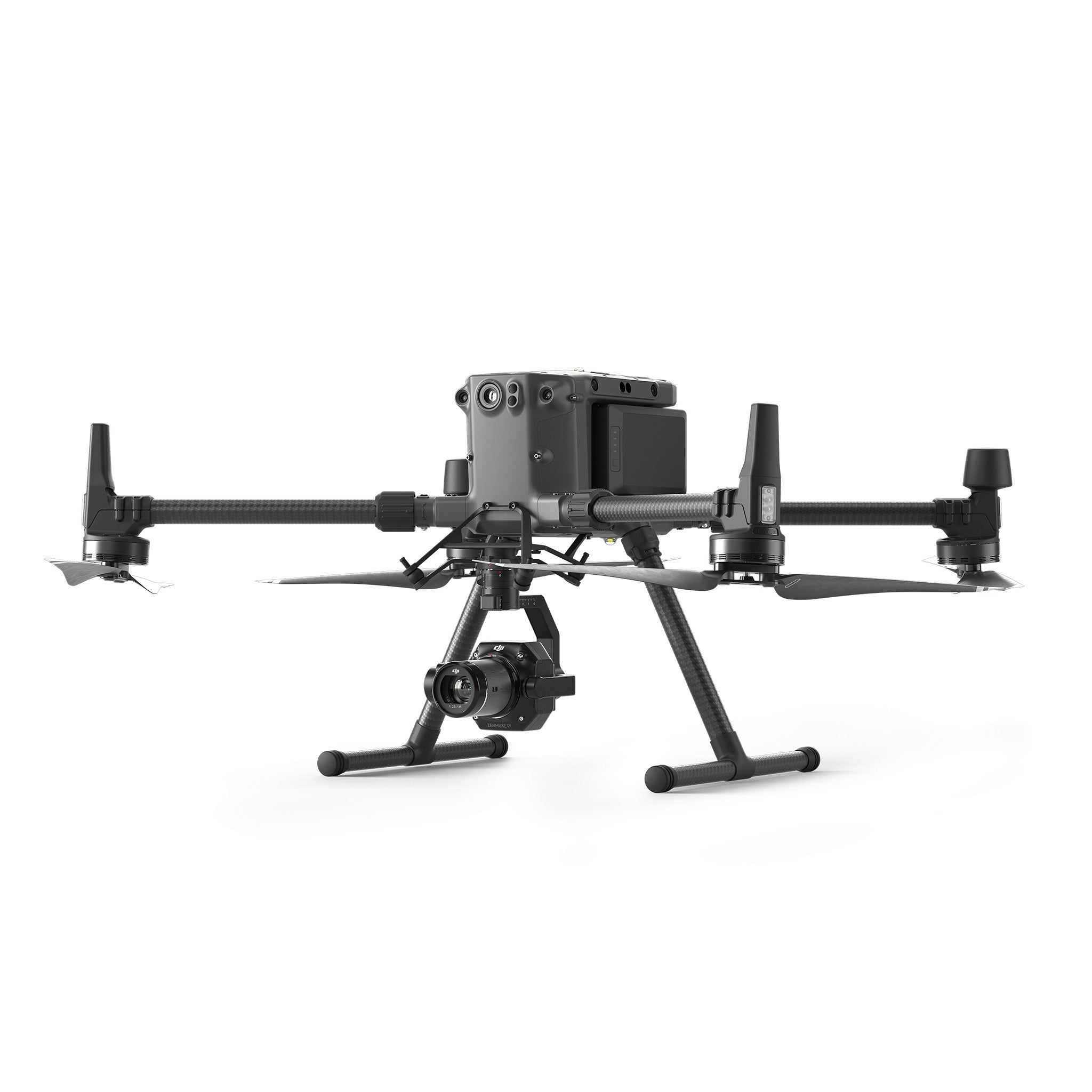

Using the DJI Zenmuse P1 is straightforward. First, make sure your Matrice 300 RTK aircraft is properly set up and powered on. Attach the camera to the aircraft using the detachable DJI SKYPORT mount. Select the appropriate lens (24mm, 35mm, or 50mm) based on your mission needs. For flight missions, set up the mission type in the DJI Terra software or relevant control system. You can choose from 2D orthomosaic, 3D oblique, detailed modeling, or real - time mapping missions. During the flight, the camera will automatically capture photos at the set interval (minimum 0.7 seconds). After the flight, you can access the mission result files, which are automatically associated with the mission name and time. Check the fieldwork report to verify data quality, including position data, number of images, RTK status, and positioning accuracy. When it comes to maintenance, keep the camera clean and dry. Store it in a temperature - controlled environment within the recommended storage temperature range (-20 to 60 degrees Celsius). Regularly check the gimbal for any signs of wear or damage. If you need to replace parts, refer to the DJI Care Basic warranty for low - cost replacement options. Also, make sure to use SD cards with UHS - I rating or above and a maximum capacity of 512GB to avoid any storage issues.
