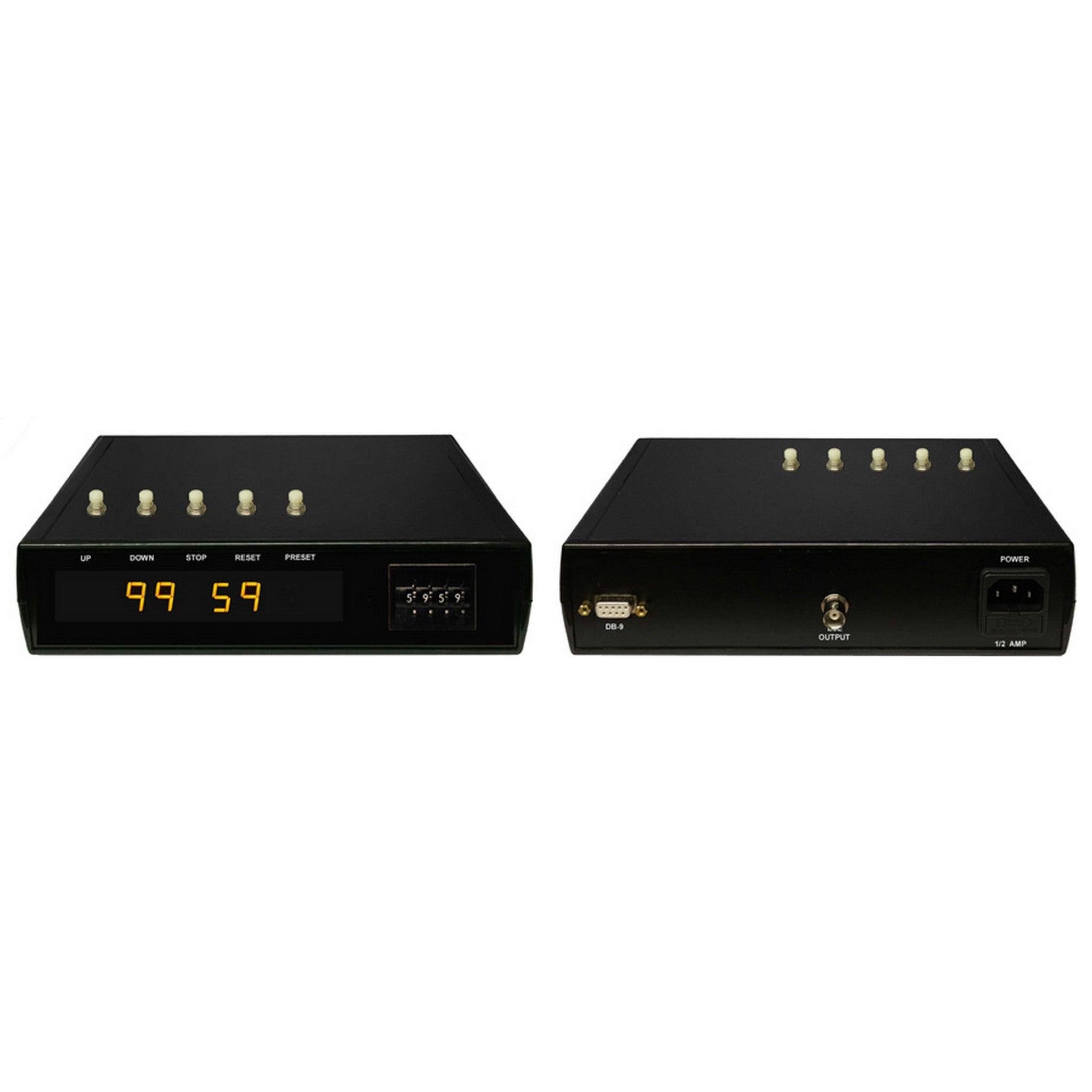

ESE ES-362U Up/Down Timer with Serial Output

The ESE ES-362U is an outstanding up/down timer with serial output. It features a presetable 100-minute up/down counting range (00:00 - 99:59) and comes with a vivid.56' yellow LED display for clear time reading. You can easily 'preset' the timer using a thumb wheel switch, and it's controlled by five front-mounted controls. The ESE Serial 'Timer' Code output uses a BNC connector and can drive 100 ESE Serial 'Timer' Code Slaves. Key features include remote control input, optional relay-contact closure output at zero, optional stop at zero, optional tenths of seconds display, an optional 1.75' rackmount enclosure (option 'P'), and it offers 220 - 240 VAC (110 - 120 VAC is standard) & UL options.

Using the ESE ES-362U timer is a breeze. First, decide if you want to count up or down. Then, use the thumb wheel switch to set your desired time within the 100-minute range. The yellow LED display makes it easy to see the time. You can control the timer with the five front-mounted controls. If you need to connect other devices, the BNC connector for the ESE Serial 'Timer' Code output allows you to drive up to 100 slaves. When using the optional features, make sure to set them up correctly. For example, if you choose the relay-contact closure output at zero, it will activate when the timer reaches zero. Remember to use the correct power supply - you can choose between 220 - 240 VAC or use the standard 110 - 120 VAC. To keep your timer in good shape, keep it in a clean and dry place. Wipe it gently with a soft cloth if it gets dirty. If you're using the rackmount enclosure, make sure it's properly installed to avoid any damage.
