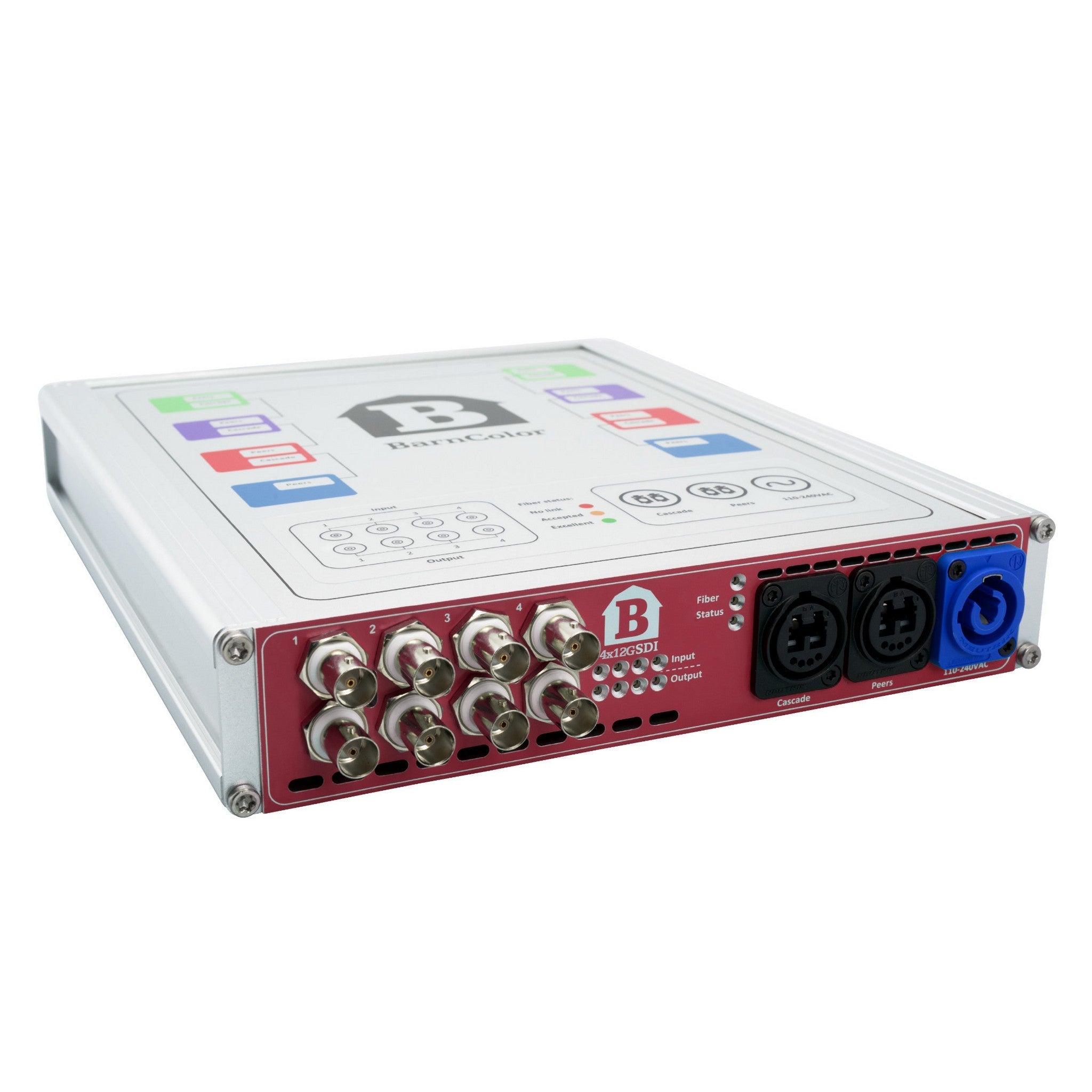

Barnfind BARNCOLOR 12GSDI Video over Fiber Solution

Introducing the Barnfind BARNCOLOR 12G - SDI - B, a revolutionary video - over - fiber solution. It efficiently transmits multiple video signals in both directions on a single fiber cable, offering a cost - effective and easy - to - deploy option. This system can handle up to 32 x 12G - SDI signals (16 forward and 16 returns), with each BarnColor device managing up to 8 signals (4 forward and 4 returns). You can daisy - chain up to 4 different colors of BarnColors. It's super easy to install, upgrade, and use, suitable for both permanent and temporary setups. Key features include no latency for real - time video transmission, no signal compression for high - quality output, and plug - and - play functionality that saves time and money. Technical specs: BNC - Ports support multiple standards with multirate reclocking from 270Mbps - 12Gbps. The fiber port uses Neutrik opticalCON DUO, compatible with duplex Single Mode fiber LC - LC. It has a Neutrik powerCON plug with 100 - 240VAC, 15Watt power. It measures 8.8 x 10.9 x 1.7” (223 x 277 x 44mm), weighs 3.08Lbs (1.4kg), and is colored blue. Note: Power cable is not included.

Using the Barnfind BARNCOLOR 12G - SDI - B is a breeze. First, connect the fiber cable to the Neutrik opticalCON DUO port. Then, connect your video sources to the BNC - Ports. Make sure to use the appropriate power supply as the power cable is not included. Just plug it into a 100 - 240VAC outlet using the Neutrik powerCON plug. For multiple devices, you can daisy - chain up to 4 different colors of BarnColors together. When installing, choose a stable location as it's suitable for both fixed and temporary setups. During usage, there's no need to worry about latency or signal compression, so you'll get real - time and high - quality video transmission. For maintenance, keep the device clean and avoid exposing it to extreme temperatures or humidity. If you need to upgrade, it's simple and won't take much time. Enjoy the plug - and - play functionality that saves you time and money on on - site rigging.
