Product Description

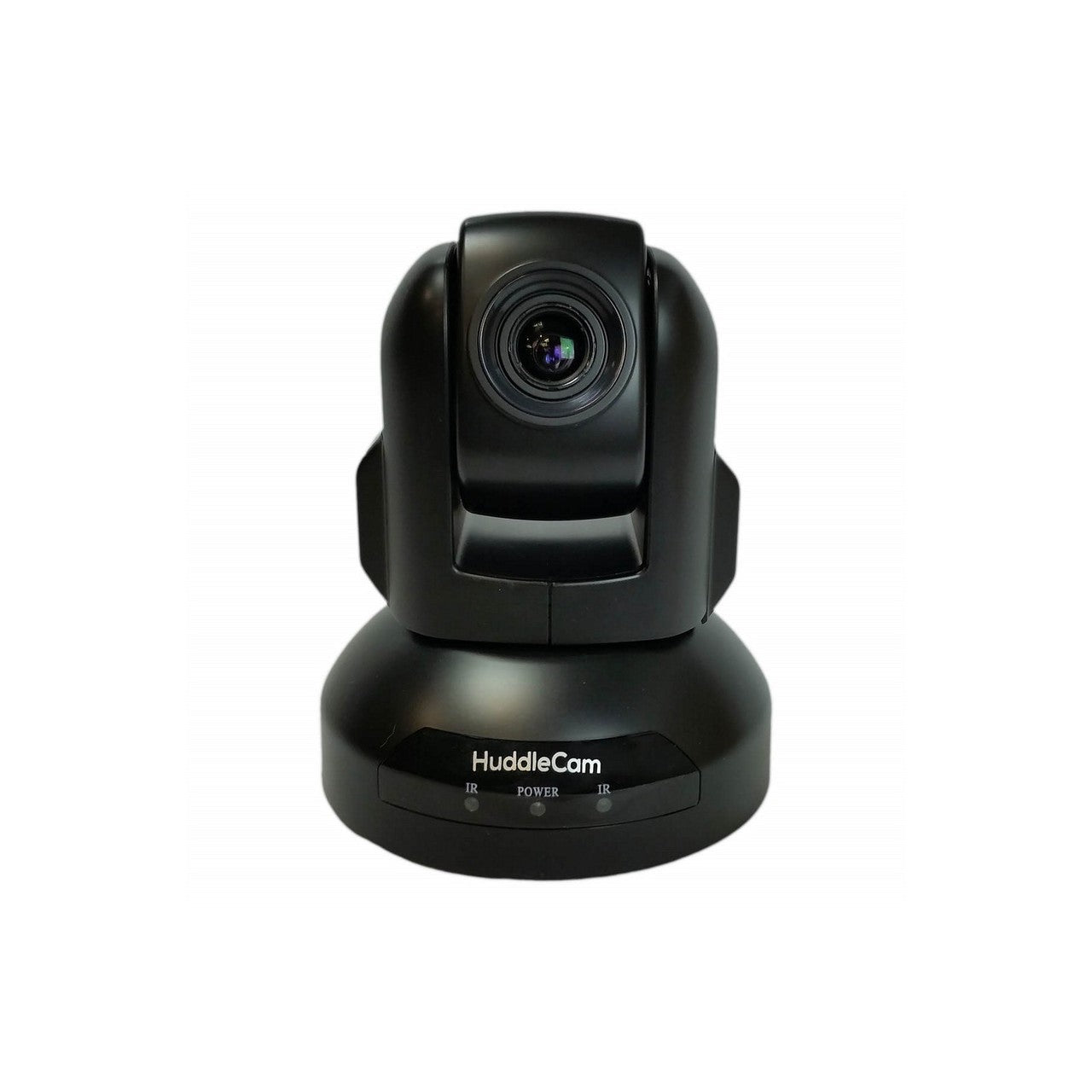

The HuddleCamHD HC3X-BK-G2 PTZ Camera is a top - notch choice for professional video conferencing. It's crafted to fit various conferencing setups, making it a versatile solution for any situation. You get high - quality video at an affordable price, and it's a breeze to set up and use in just minutes.
Key Features:
- Black Model
- 3X Optical Zoom
- USB 2.0 Connectivity
- RS - 232 Support
- 1920 x 1080 Resolution
- 81 - Degree Field of View
- Up to 30fps
- 64 Presets
- IR Remote Control
Technical Specifications:
- Camera & Lens: 1/2.7 CMOS, 2.1 Mega Pixel sensor, 30fps at 1920 x 1080p, 3X Optical Zoom (f = 3 - 10mm F1.4), field of view from 36 Degrees (tele) to 81 Degrees (wide), 2 - year parts and labor warranty.
- Pan/Tilt Movement: Pan ±360 Degrees, tilt up 90 Degrees and down 45 Degrees.
- Electrical Index: 12V DC 2A power supply adapter, input voltage 12V DC (10.5 - 14V DC), max input power 24W, indoor working environment, ISO9001:2008 certified.
- Rear Board Connectors: USB 2.0 high - definition interface, Mini DIN - 8 controller signal interface.
- Physical: Made of aluminum and plastic, dimensions 4.88W x 5.5H x 4.75D (6 H w/ tilt up), weight 1.66 lbs (.75 kg).
- In the Box: 3X Zoom USB 2.0 Camera, 12V/2.0A DC Power Adapter, tripod mount, USB 2.0 Data Cable (3m), Serial Control Cable, RS - 232C to RS - 485 Adaptor, IR Remote Control, and downloadable user manual.
Using the HuddleCamHD HC3X - BK - G2 is easy. First, connect the camera to your computer using the USB 2.0 data cable. Then, plug in the 12V/2.0A DC power adapter. You can use the included IR remote control to adjust the camera's pan, tilt, and zoom. There are 64 presets, so you can quickly set the camera to your preferred positions.
When using the camera, make sure you're in an indoor environment as it's not designed for outdoor use. The operating temperature should be between 32 Degrees F and 113 Degrees F (0 Degrees C to 45 Degrees C).
For maintenance, keep the camera clean. You can use a soft, dry cloth to wipe the lens and the body. Avoid using harsh chemicals. If you need to store the camera, make sure it's in a dry place and the power is off. The camera comes with a 2 - year parts and labor warranty, so if you encounter any problems, you can contact the support team.
